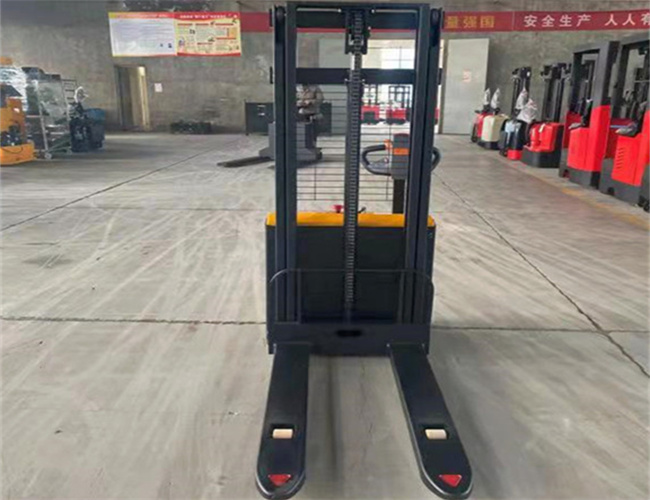

2t CDD20D-30 Walking type Electric Pallet Staccker
Load Center500mm
Lifting Height3000mm
Mast Lowered Height2080mm
Mast Extended Height 3565mm
Overall Length2030mm
We're here to help:Easy ways to get the answers you need.
- 2 Ton Electric Pallet Stacker
- High Efficient Load Center 500mm Electric Pallrt Truck with Mast Extended Height 3565mm.
Technical Parameters
technology parameters
FLIFT CDD20D-30 electric pallet stacker (Walking type) | ||
Brand | FLIFT | |
Model | CDD20D-30 | |
Dynamic type | Electric | |
Operation Type | Walking | |
Rated Capacity | kg | 2000 |
Load Center | mm | 500 |
Tyre type front/rear | PU | |
Numbers of Tires | 4/1x+1 | |
Mast type | 2 Stages | |
Standard Lifting Height | mm | 3000 |
Mast Lowered Height | mm | 2080 |
Mast Extended Height | mm | 3565 |
Minimum height of cargo above ground | mm | 85 |
Overall Length | mm | 2030 |
Wheel Base | mm | 1430 |
Overall width | mm | 850 |
Tread front/rear | mm | 490/545 |
Fork Size | mm | 1150/190/65 |
Outer distance of fork side | mm | 680/560 |
Turning Radius | mm | 1645 |
Aisle Width (1200x1000 pallets, 1200 horizontal) | mm | 2515 |
Driving Speed (full/no load) | Km/h | 4.0/4.5 |
Lifting Speed (full/no load) | mm/s | 80/125 |
Descend Speed (full/no load) | mm/s | 160/105 |
Gradeability (full/no load) | % | 6%/10% |
Driving motor capacity | KW | 1.5 |
Lifting motor type | DC | |
Lifting motor capacity | KW | 2.2/3.0 |
Battery Voltage/ Capacity | V/AH | 24/100 |
Battery Weight | kg | 75 |
Overall Weight (with battery) | kg | 850 |
Steering Type | Manual | |
Parking brake mode | Electromagnetic | |
Parking brake operation mode | Handle Operation |
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.AC drive motor, strong climbing force, lifting height: 1600-4500mm.
5.High strength fork legs, cargo forks, special door frame channel steel for high strength forklifts, large capacity maintension-free battery, built-in intelligent charger.
6.Multi-function integrated, special handle for narrow channel, low noise lifting hydraulic pump station, good climbing performance.
7.Drive stepless speed regulation, safety, quiet, controller multiple automatic protection system.
8.Super low & Non-slip step.

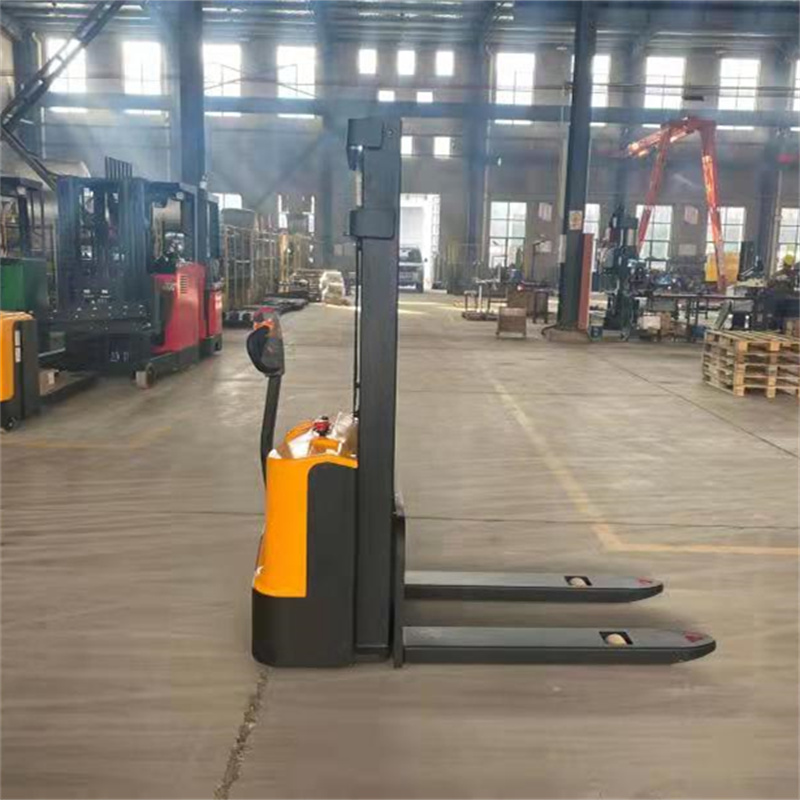

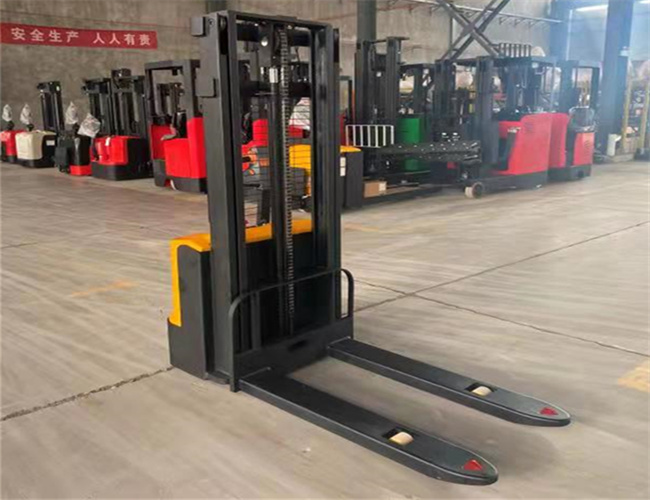

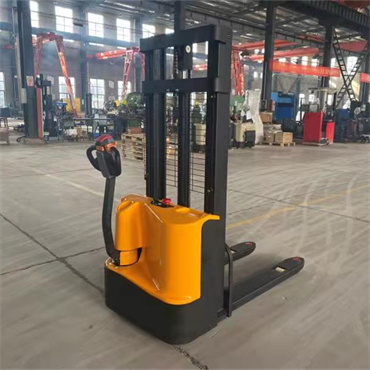

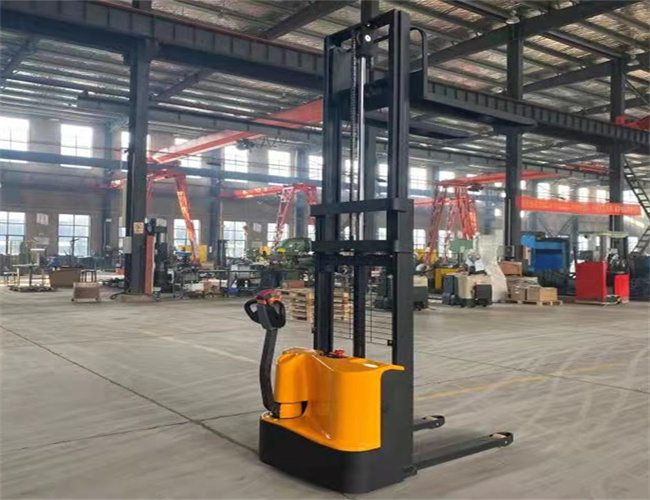

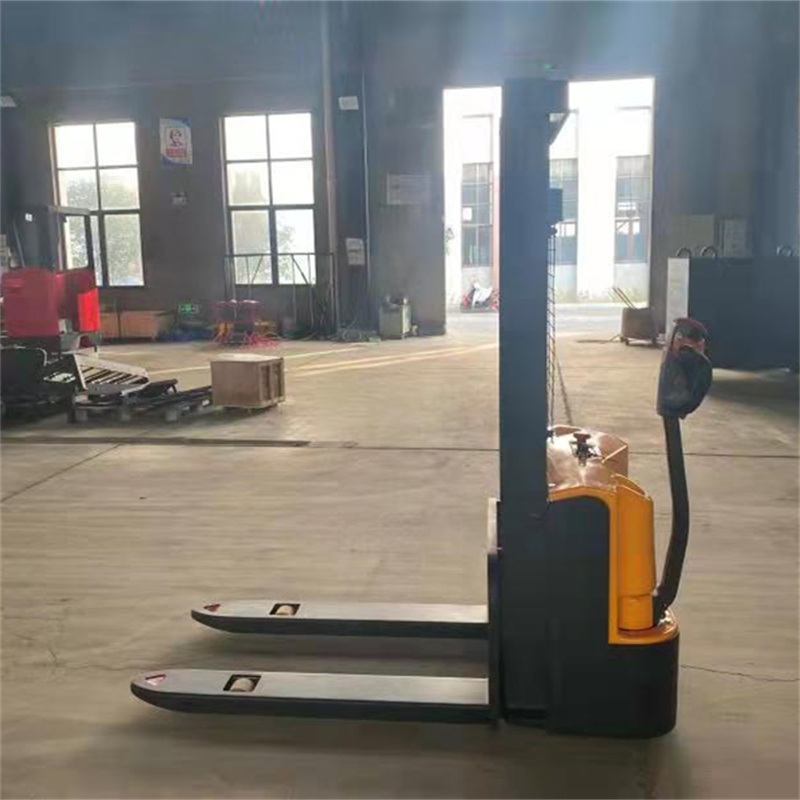

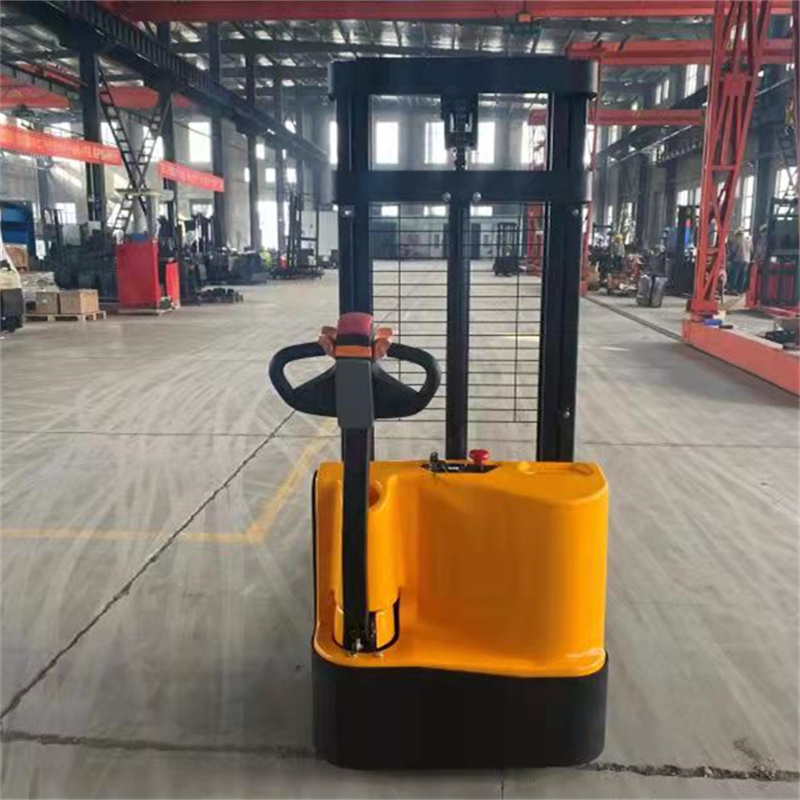

Product Figure
Advantages:
AC drive motor, strong climbing force, lifting height: 1600-4500mm. High strength fork legs, cargo forks, special door frame channel steel for high strength forklifts, large capacity maintension-free battery, built-in intelligent charger, Multi-function integrated, special handle for narrow channel, low noise lifting hydraulic pump station, good climbing performance.
Security:
Drive stepless speed regulation, safety, quiet, controller multiple automatic protection system, emergency reverse anti-collision device/emergency power off switch, automatic deceleration in curves, fixed fork, optional lithium battery, optional 24V165/210ah lead-acid battery, suitable for single-side tray, non-standard customization.
After-sales Service
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
