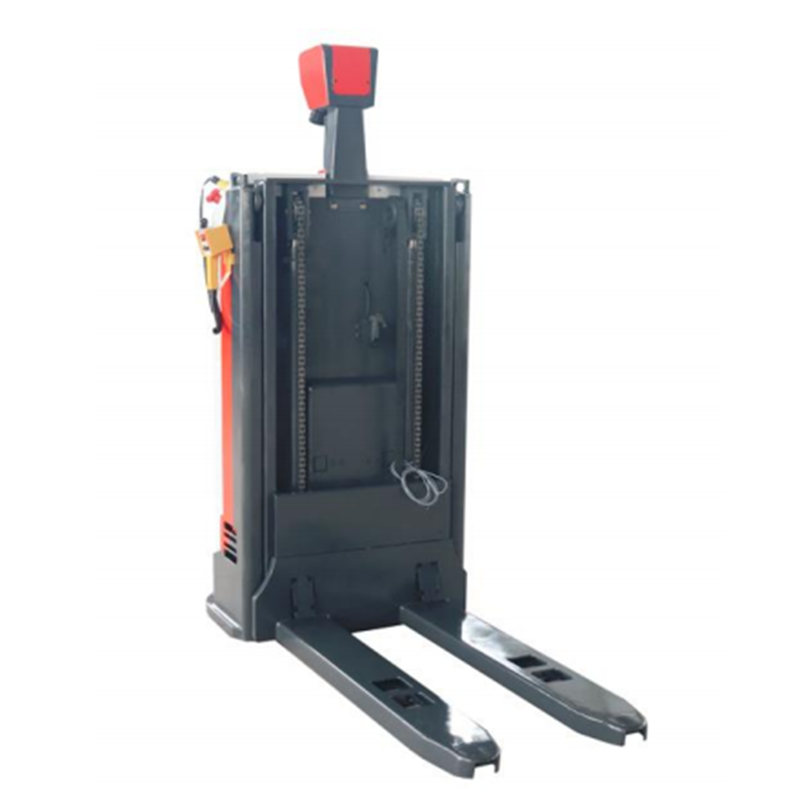

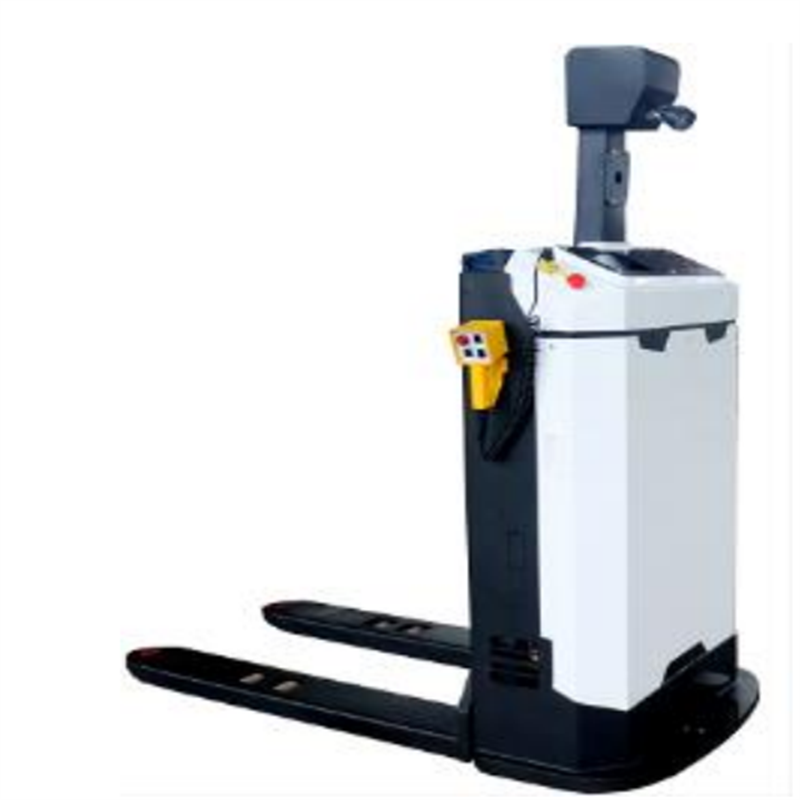

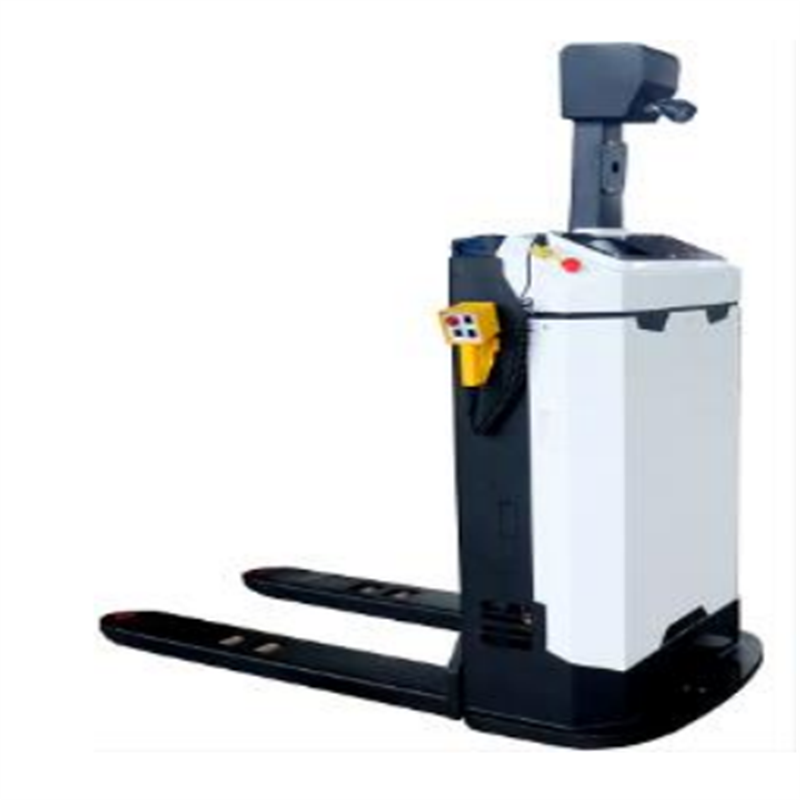

1.5t AGV type CDD15J-16 Electric Pallet Stacker
Bearing Wheel85*70 mm
Driving Wheel230*75 mm
Auxiliary Wheel100*50 mm
Lifting Height1600 mm
Overall Length 1600 mm
We're here to help:Easy ways to get the answers you need.
- 1500kg Electric Pallet Stacker
- Low Consumption 2 Stages Electric Pallet Stacker Rated Capacity 1500kg with PU Tires
.png)
technology parameters
| CDD10/15J Electric Pallet Stacker | ||
| Product Name | AGV stacker | |
| Model | CDD15J-16 | |
| Rated Capacity | kg | 1500 |
| Load Center | mm | 500 |
| Wheel Base | mm | 895 |
| Overall Weight | kg | 850 |
| Tyre Type | PU | |
| Mast mode | 2 Stages | |
| Number of cylinders | 2 | |
| Bearing Wheel | mm | 85*70 |
| Driving Wheel | mm | 230*75 |
| Auxiliary Wheel | mm | 100*50 |
| Lifting Height | mm | 1600 |
| Overall Length | mm | 1600 |
| Overall Width | mm | 890 |
| Overall Height (Including laser fixing seat) | mm | 1950 |
| Fork Size | mm | 1150*190*65 |
| Fork outside width | mm | 780 |
| Min. Ground Clearance | mm | 29 |
| Turning Radius | mm | 1140 |
| Right Angle stacking channel width (1200x1000, 1200 horizontal) | mm | 2000(+150) |
| Driving Speed (full/no load) | Km/h | 5/5.5 |
| Lifting Speed (full/no load) | mm/s | 90/120 |
| Descend Speed (full/no load) | mm/s | 140/110 |
| Max. Gradeability | % | 5%/8% |
| Braking mode | Electromagnetic mode | |
| Driving Motor capacity | kw | 1.5 |
| lifting Motor capacity | kw | 2.2 |
| Lithium Battery Voltage/Capacity | V/Ah | 24/160 |
| Steering System | Electronic Steering | |
| Braking System | Electromagnetic Braking | |
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Short wheelbase ultra narrow body, CURTIS brand drive control system, wire debugging integrated handle.
5.Electromagnetic hydraulic valve, proportional valve, low noise hydraulic pump, hydraulic pump control, CAN communication lithium battery.
6.Navigator fixed seat, various induction switch bracket, body shock absorption system.
.png)
Product Figure
Advantages:
Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.
Security:
Bend automatic deceleration device, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization.
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
