Technical Parameters

2t electric rough terrain pallet stacker specification
FEATURE	1.1	Origin		China
	1.2	Brand		FLIFT
	1.3	Model		DGXC20-30
	1.4	Power Type		Lead Battery
	1.5	Operation Type		Standing Driving
	1.6	Load Capacity	kg	2000
	1.7	Load Center	mm	400
	1.8	Lift Height	mm	3000
	1.9	Wheel Base	mm	1151
DIMENSION	2.1	Overal Dimension	mm	1600×1200
	2.2	Fork Dimension(L×W×H)	mm	1080×140×60
	2.3	Fork Width Min./Max.	mm	685
	2.4	Turning Radius	mm	1600
	2.5	Min.Right Angle Channel Width	mm	1000
WEIGHT	3.1	Self weight	kg	600
WEIGHT	3.2	Battery Weight	kg	52
WHEEL	4.1	Wheel Type		Solid Rubber
	4.2	Driving Wheel Sizes	mm	250×70
	4.4	Loading wheel sizes	mm	370×100
	4.5	Min. Ground Clearance	mm	114
DRIVE&CONTROL	5.1	Driving Motor	kw(60min)	1.5
	5.2	Liifting Motor	kw(60min)	2.2
	5.3	Battery dimension	mm	271×174×213
	5.4	Battery Voltage/Capacity	V/Ah	24/80
	5.5	Controller		Brushless
	5.6	Working Pressure	mpa	14
PERFORMANCE	6.1	Driving Speed	km/h	3.5/4
	6.2	Lifting Speed	mm/s	45/55
	6.3	Lowering Speed	mm/s	40/55
	6.4	Traction	kN	0.9
	6.5	Max. traction	kN	0.9
	6.6	Max Climbing Ability	%	10
	6.7	Service Braking		electromagnetic induction
	6.8	Parking Braking		electromagnetic induction
OTHER	7.1	Driving type		Electric
	7.2	Steering Type		Manual
	7.3	Noise Level		63
	7.4	Waterproof Grade		IP54

FEATURES

1.DC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.The Rough Terrain Stacker is designed for outdoor performance, offering strong stability and smooth operation with up to 10% gradeability for efficient material handling;

Rough Terrain Stacker manufacturer

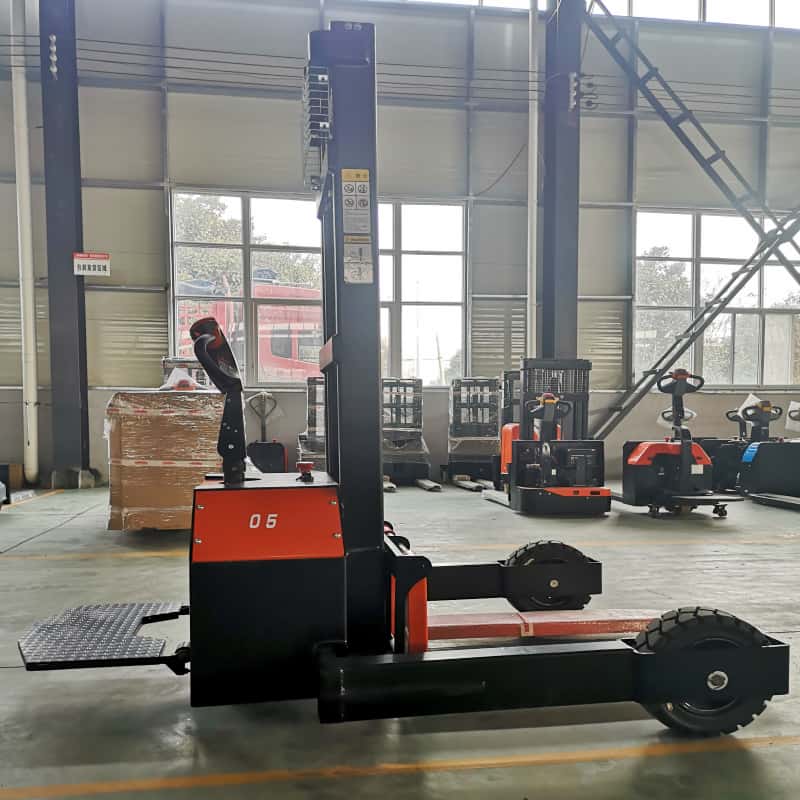

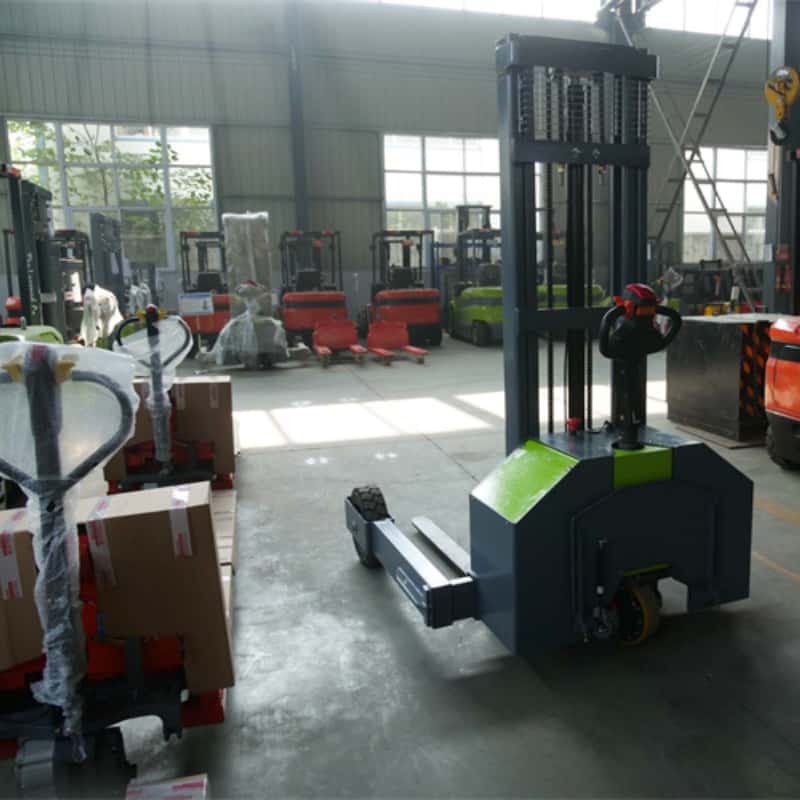

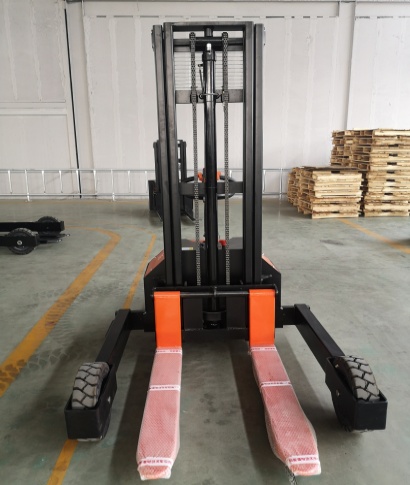

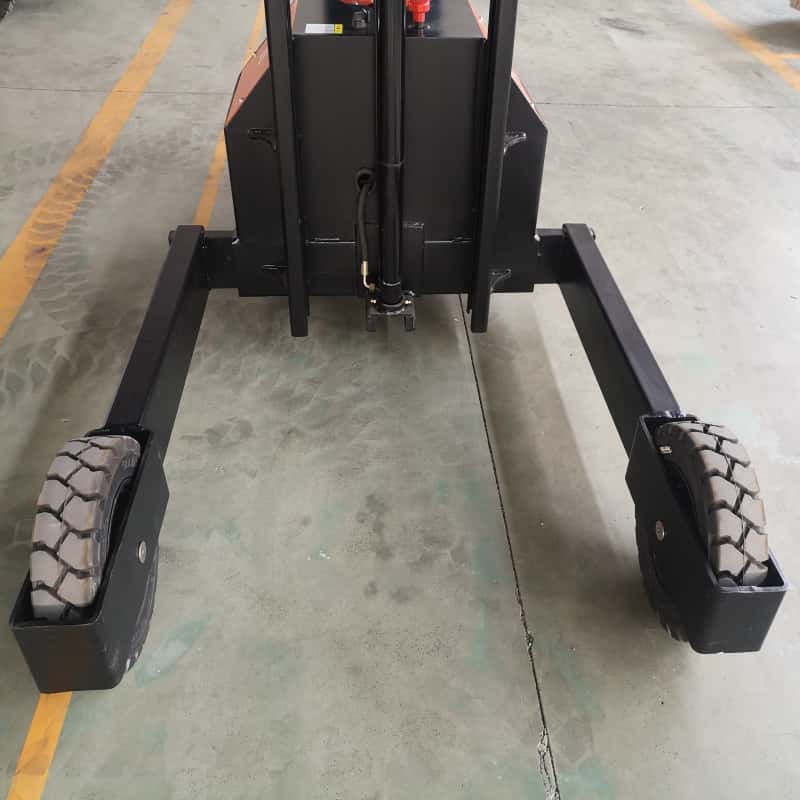

product display

After-sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
