6T Off Road Forklift 4x4 | Cummins EPA Tier4 Engine

Technical Parameters

6Ton All Rough Terrain Forklift Specifications
1.1	Model		FDR60
1.2	Power Type		Diesel
1.3	Rated Capacity	kg	6000
1.4	Load Center Distance	mm	500
1.5	Drive Type		4WD
Dimension Parameter
2.1	Standard Lift Height	mm	3000
2.2	Fork Size (LWH)	mm	1520×150×55
2.3	Mast inclination angle (F/R)	Deg	10°\ 12°
2.4	Overall Length (without fork)		3600
2.5	Over Width	mm	2000
2.6	Mast Height	mm	2560
2.7	Overhead Guard Height	mm	2450
2.8	Ground Clearance	mm	310
2.9	Minimum Turning Radius	mm	3950
2.10	Wheelbase	mm	1950
2.11	Front wheel tread	mm	1570
2.12	Rear wheel tread	mm	1400
2.13	Self Weight	kg	7980
Performance Parameter
3.1	Travel Speed	Km\h	30
3.2	Lifting Speed	mm\s	430
3.3	Lowering Speed	mm\s	460
3.4	Maximum Gradeability	％	≥35%
Tire
4.1	Front Tyre		16/70-20 (solid tyres)
4.2	Rear Tyre		10- 16.5 (solid tyres)
Engine and Gearbox
5.1	Battery	V\Ah	12\60
5.2	Engine Manufacturer		American Cummins Brand
5.3	Engine Model		QSF3.8
5.4	Engine Power	Kw/rpm	74/2200
5.5	Engine Emission Standard		American EPA-Tier 4
5.6	Fuel Tank Capacity	L	100
5.7	Transmission Type		Automatic

FEATURES

6t Rough Terrain Forklift With Cummins Engine
Character:
1.The FLIFT 6ton rough terrain forklift offers pneumatic or solid tires, ensuring flexibility across differentjobsite conditions.
2.Its 4WD system delivers strong traction and stability on rough, uneven terrain.Fuel efficiency: Since they can be converted to two-wheel drive, they consume less fuel compared to four-wheel drive, thereby reducing operating costs.
3.The enclosed cabin with air conditioning improves operator comfort in all climates.
4.An integrated monitor inside the cabin enhances visibility and operational safety.
5.The Cummins QSF3.8 (97kW) engine provides high torque, fuel efficiency, and durability, making it an excellent choice for rough terrain forklifts operating in construction sites, mining areas, and uneven ground conditions.
6.Optional side shifter, fork positioner, and custom colors increase efficiency and meet specific customer needs.

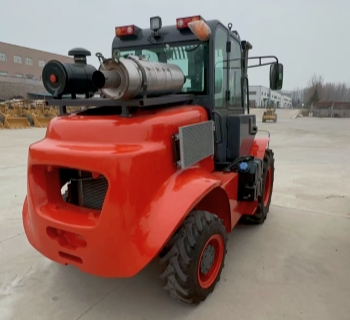

diesel rough terrain forklift 6 ton

Applications

4 wheel drive rough terrain forklift 6 ton forklift with high power diesel engine heavy duty 6 ton off road forklift for construction

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
