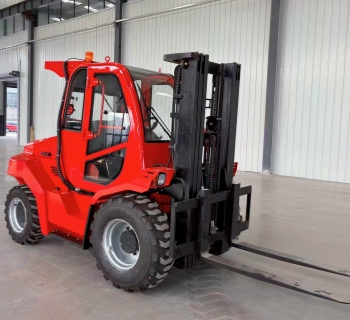

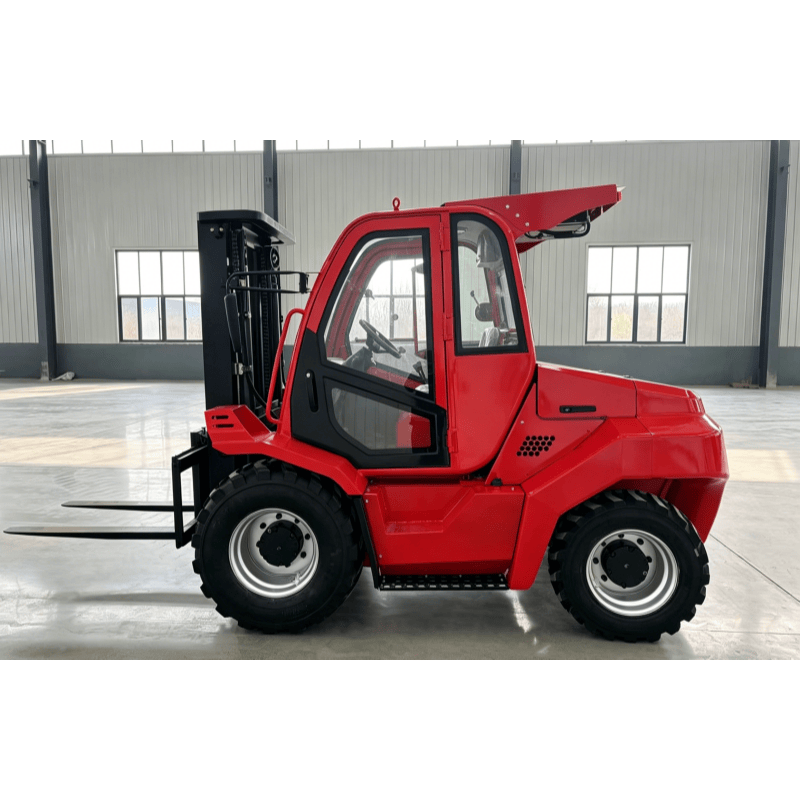

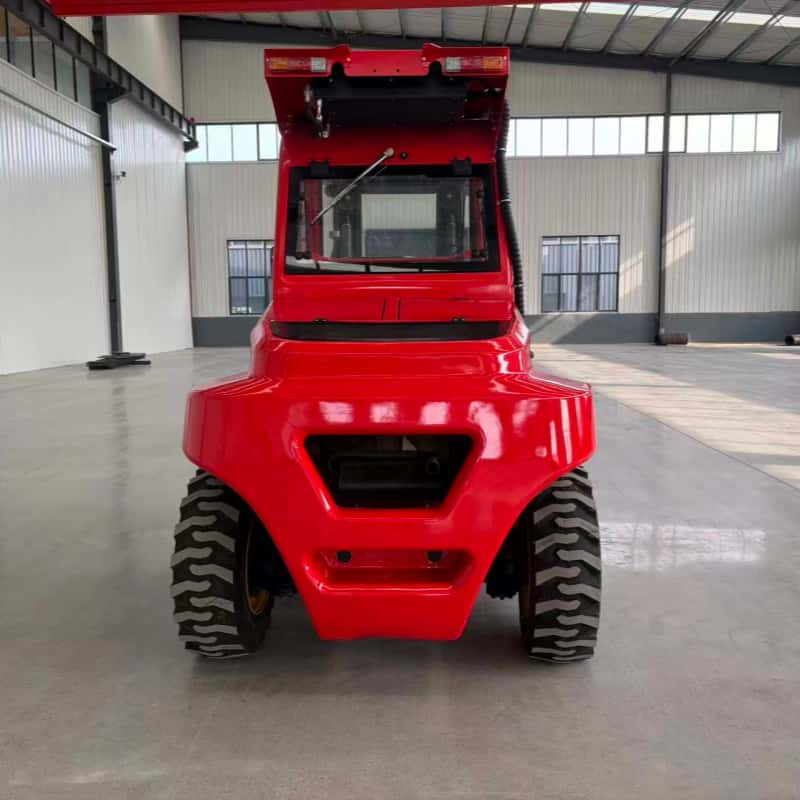

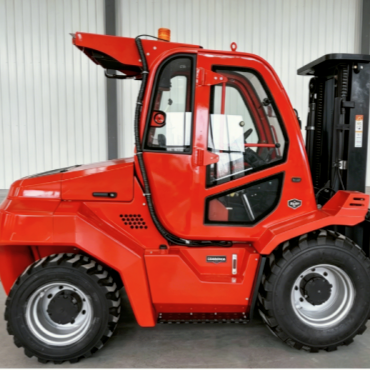

7000lbs off road forklift for Sale – Yanmar Engine, Full Free Mast, Cabin with AC
Load Capacity7000lbs
Lifting Height4500mm
Load center500mm
Max.Gradeability30%(Full Load)
Engine Brand Yanmar 4TNE98
We're here to help:Easy ways to get the answers you need.
- Which type of engine is equipped in your 3.5ton 4wd off road forklift?
- In general, we euqipped with the standard Japanese Yanmar brand diesel engine, engine model is 4TNE98. With 42.1kw power and EURO-III Emission standard. In addition, our standard lifting height is 4500mm with 3 stage full free mast. The mast lowered height only 2230mm which can working in 20GP container easily .
Technical Parameters
|
|
特性 |
Characteristic |
|
|
|
|
|
1.01 |
产品型号 |
Model |
|
|
W30 |
W35 |
|
1.02 |
动力方式 |
Power Type |
|
|
Diesel |
Diesel |
|
1.03 |
额定载荷 |
Rated Capacity |
|
kg |
3000 |
3500 |
|
1.04 |
载荷中心距离 |
Load Centre |
|
mm |
500 |
500 |
|
1.05 |
自重 |
Service weight |
|
kg |
|
|
|
|
轮胎、底盘 |
Tyre & Chassis |
|
|
|
|
|
2.01 |
轮胎类似（前/后） |
Tyre (Front/Rear) (X=drive wheel) |
|
|
Tubeless |
Tubeless |
|
2.02 |
车轮数量（前/后） |
Wheel number (Front/Rear) (X=drive wheel) |
|
|
2X/2X |
2X/2X |
|
2.03 |
前轮胎规格 |
Tyre Size(Front) |
|
|
14-17.5 |
14-17.5 |
|
2.04 |
后轮胎规格 |
Tyre Size(Rear) |
|
|
10-16.5 |
10-16.5 |
|
2.05 |
前轮距 |
Front Tread |
W1 |
mm |
1340 |
1340 |
|
2.06 |
后轮距 |
Rear Tread |
W2 |
mm |
1310 |
1310 |
|
2.07 |
轴距 |
Wheelbase |
L4 |
mm |
1840 |
1840 |
|
|
尺寸 |
Size |
|
|
|
|
|
3.01 |
货叉尺寸（长x宽x高） |
Fork Size(LxWxR) |
L1 |
mm |
1220*125*45 |
|
|
3.02 |
门架倾角（前/后） |
Mast Tilt Angel (F/R) |
α/β |
Deg |
10/12 |
10/12 |
|
3.03 |
门架起升高度 |
Lift Height |
H |
mm |
4500 |
4500 |
|
3.04 |
门架不起升高度 |
Mast Lowered Height |
H1 |
mm |
2230 |
2230 |
|
3.05 |
门架自由起升高度 |
Free Lift Height |
H5 |
mm |
1550 |
1550 |
|
3.06 |
门架最大起升高度（带挡货架） |
Mast Extended Height |
H2 |
mm |
5100 |
5100 |
|
3.07 |
全长（不带货叉） |
Length to Face of Fork |
K' |
mm |
3080 |
3080 |
|
3.08 |
全宽（车架处） |
Overall Width |
W |
mm |
1700 |
1700 |
|
3.09 |
护顶架高度 |
Overhead Guard Height |
H3 |
mm |
2280 |
2280 |
|
3.10 |
前悬距 |
Front Overhang |
L2 |
mm |
550 |
550 |
|
3.11 |
后悬距 |
Rear Overhang |
L3 |
mm |
470 |
470 |
|
3.12 |
最小转弯半径 |
Turning Rdius(outside) |
r |
mm |
3150 |
3150 |
|
3.13 |
最小离地间隙（门架出） |
Ground Clearance(Bootom of mast) |
H4 |
mm |
180 |
180 |
|
|
性能参数 |
Performance |
|
|
|
|
|
4.01 |
最大行驶速度（满载/空载） |
Max.Travel Speed (Full load /No load） |
km/h |
|
24/25 |
24/25 |
|
4.04 |
最大爬坡（满载） |
Max.Gradeability(Full load) |
% |
|
30 |
30 |
|
|
驱动、传动 |
Power& Transmission |
|
|
|
|
|
|
|
|
|
|
YANMAR |
YANMAR |
|
5.01 |
发动机型号 |
Engine Model |
|
|
4TNE98 |
4TNE98 |
|
5.02 |
额定功率/转速 |
Rated putput/r.p.m |
kw/rpm |
|
42.1/2300 |
42.1/2300 |
|
5.03 |
最大扭矩/转速 |
Max.torque/r.p.m |
Nm/rpm |
|
240/1600-1900 |
240/1600-1900 |
|
5.04 |
气缸数 |
No. of Cylinder |
|
|
4 |
4 |
|
5.05 |
缸径x 行程 |
Bore x Stroke |
mm |
|
φ90*1110 |
φ90*1110 |
|
5.06 |
排量 |
Displacement |
L |
|
3.319 |
3.319 |
|
5.07 |
排放标准 |
Emission Standards |
|
|
Eruo 3 |
Eruo 3 |
|
5.08 |
燃油箱容量 |
Fuel Tank Capacity |
L |
|
80 |
80 |
|
5.09 |
蓄电池（电压/容量） |
Battery (Voltage/Capacity) |
V/Ah |
|
12 |
12 |
|
5.1 |
传动形式 |
Transmission Type |
|
|
hydraulic |
hydraulic |
|
5.11 |
驱动形式 |
Driving Type |
|
|
4WD |
4WD |
|
5.12 |
档位：前进/后退 |
Stage FWD/RVS |
|
|
F2/R2 |
F2/R2 |
FEATURES
FLIFT 7000lbs off road forklift
Character:
1,Japanese Yanmar Engine
Equipped with Japanese Yanmar 4TNE98 diesel engine with 42.1kW strong power and reliable performance.
2,EURO-III Emission
Meets EURO-III emission standard with lower fuel consumption and better environmental performance.
3,4500mm Full Free Mast
Standard 4500mm 3-stage full free mast provides higher lifting efficiency and better visibility.
4,Easy Container Operation
2230mm lowered mast height allows easy operation inside 20GP containers.

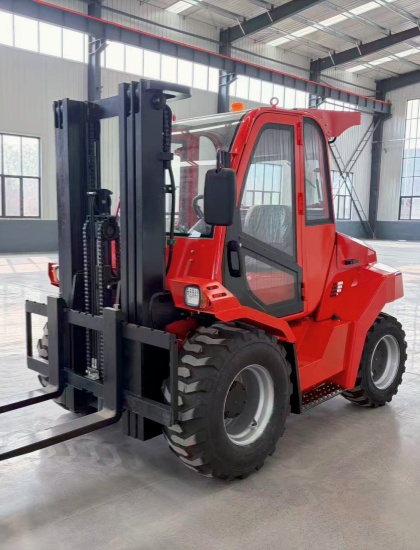

5, Enclosed Cabin with AC
Standard enclosed cabin with air conditioner improves operator comfort in all weather conditions.
6,Hydrostatic Transmission
Hydrostatic transmission offers smoother driving, easier control, and lower maintenance costs.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
