1.5t CQD15A Simple Type Electric Reach forklift Truck

Dynamic TypeStorage Battery

Operation TypeStanding type

Rated Capacity1500kg

Load Center500 mm

Front Overhang145 mm

We're here to help:Easy ways to get the answers you need.

1.5t CQD15A Simple Type Electric Reach forklift Truck
Easy Operation High Safety 1.5t CQD15A Simple Type Electric Reach forklift Truck with Load Center 500mm.

technology parameters

Model   CQD15A
Dynamic Type   Storage Battery
Operation Type   Standing type
Rated Capacity kg 1500
Load Center mm 500
Front Overhang mm 145
Wheel Base mm 1400
Overall Weight kg 2000
Tyre type   PU
Wheel Bearing mm Φ210*85
Driving Wheel mm Φ230*75
Auxiliary Wheel mm Φ130*55
Tread (Driving side) mm 684
Tread (Bearing side) mm 990
Mast Lowered Height mm 1830
Free Lifting Height mm /
Mast Tilt Angle   3°/5°
Lifting Height mm 2500
Mast Extended Height mm 3485
Standing plate height mm 195
Landing leg Height mm 235
Overall length  (Pedal extended/retracted) mm 2345/2850
Overall Width mm 900/1084
Fork Size mm 1070/100/35
Backrest width mm 1000
Fork outside width mm 240-700
Inside Distance of Landing leg mm 802
Forward distance mm 450
Ground Clearance (bottom mast) mm 70
Turning radius mm 1670/2100
Driving Speed (Full Load/no load) Km/h 4.0/5.5
Lifting speed (Full Load/no load) mm/s 80/150
Descend speed (Full Load/no load) mm/s 200/105
Gradeability(S2-5) Full/no load % 5%/10%
Braking type   Electromagnetic type
Driving motor capacity kw 1.5
Lifting motor capacity kw 3
Storage Battery Voltage/Capacity V/AH 24/210
Battery Weight kg 200
Steering System   Electronic steering
Braking System   Electromagnetic brake

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Double cylinders, wide view frame, fork forward tilt back, multi-function handle, electronic steering, lightweight, imported low noise hydraulic pump.
5.AC drive, carbon brush, motor maintenance free, electromagnetic, regenerative braking system.
6.lift limit, long life induction switch, body shock absorption system/pedal, handle shock absorption.
7.Bend automatic deceleration device, drive stepless speed regulation.

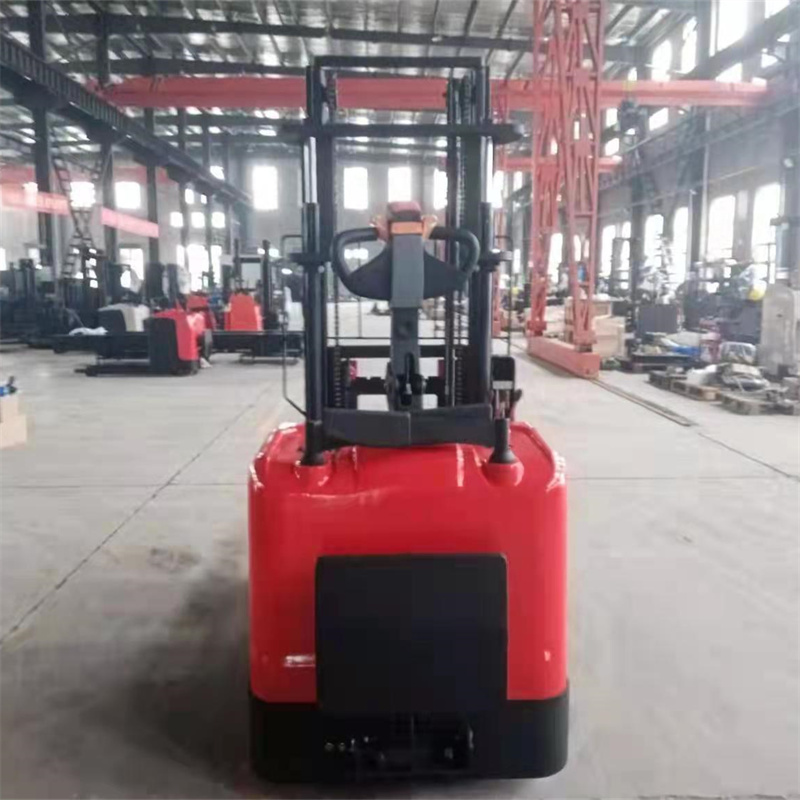

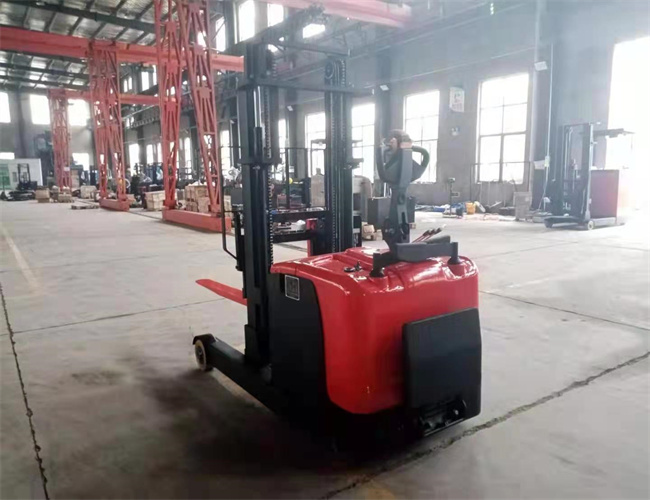

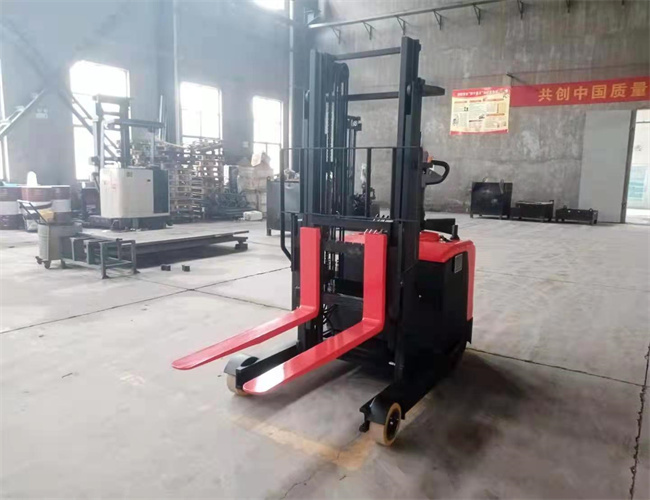

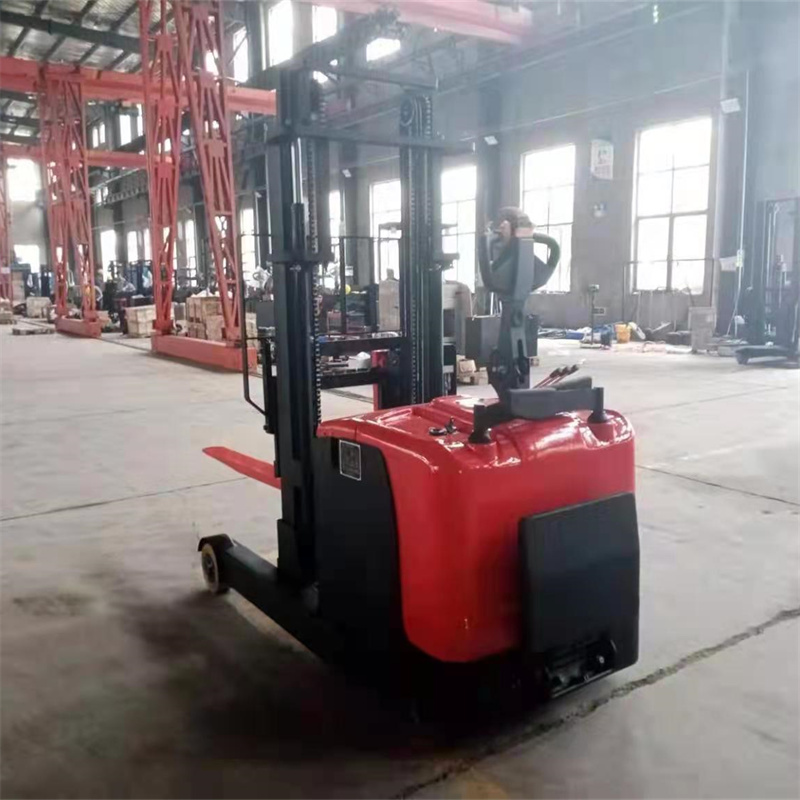

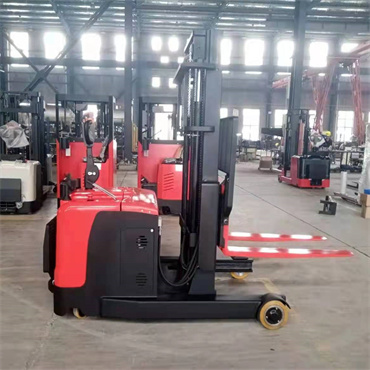

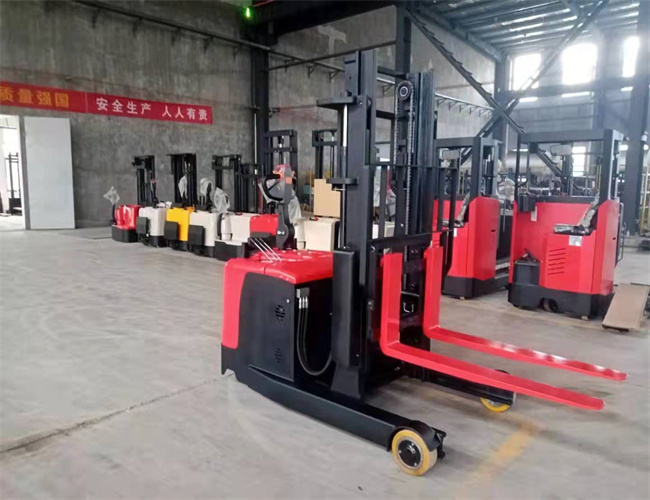

Product Figure



Advantages:

Double cylinders, wide view frame, fork forward tilt back, multi-function handle, electronic steering, lightweight, imported low noise hydraulic pump, AC drive, carbon brush, motor maintenance free, electromagnetic, regenerative braking system, lift limit, long life induction switch, body shock absorption system/pedal, handle shock absorption.




Security:
Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system, emergency reverse anti-collision/emergency brake device, cylinder safety cut-off valve.



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
