Standing Type,Solid PU, Overall Width 1885mm

Technical Parameters

technology parameters

FLIFT CBD20/30/45ZElectric Vehicle Transfer Truck
Product Name	Electric Vehicle Transfer Truck (24v)
Operation type		Standing Type
Model		CBD30Z
Traction Weight	kg	3000
Tyre type		Solid PU
Min. Fork Ground Clearance	mm	20
Rotation Angle of stop lever	°	90
Overall Length (Fold up fork and pedal)	mm	2660
Overall Width	mm	1885
Turning Radius (Fold up outside pedal)	mm	2495 (directional wheel)
Max. Driving Speed	Km/h	4~5
Gradeability	%	2%/3%
Overall Weight	kg	~950
Driving Wheel	mm	230*75
Front Wheel	mm	76*52
Balance Wheel	mm	130*55
Battery Capacity	V/Ah	24/210
Battery Charger V/A	V/A	24/30
Driving Motor	kw	1.6
Lifting Motor	kw	2.2
Brake		Electromagnetic type
Drive Control type		AC
Speed regulation mode		Hall accelerator
Steering type		Electric Steering

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Hydraulic gear lever, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight, integrated low noise hydraulic pump.
5.AC drive, carbon brush, motor maintenance free electromagnetic, regenerative braking system, front wheel multi-point universal bearing body shock absorption system, handle shock absorption

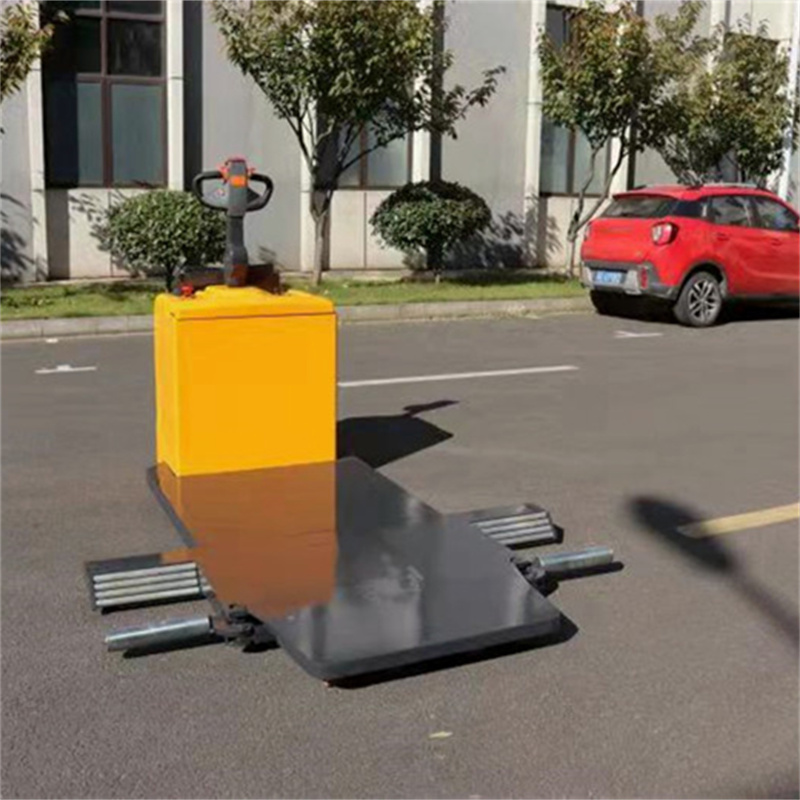

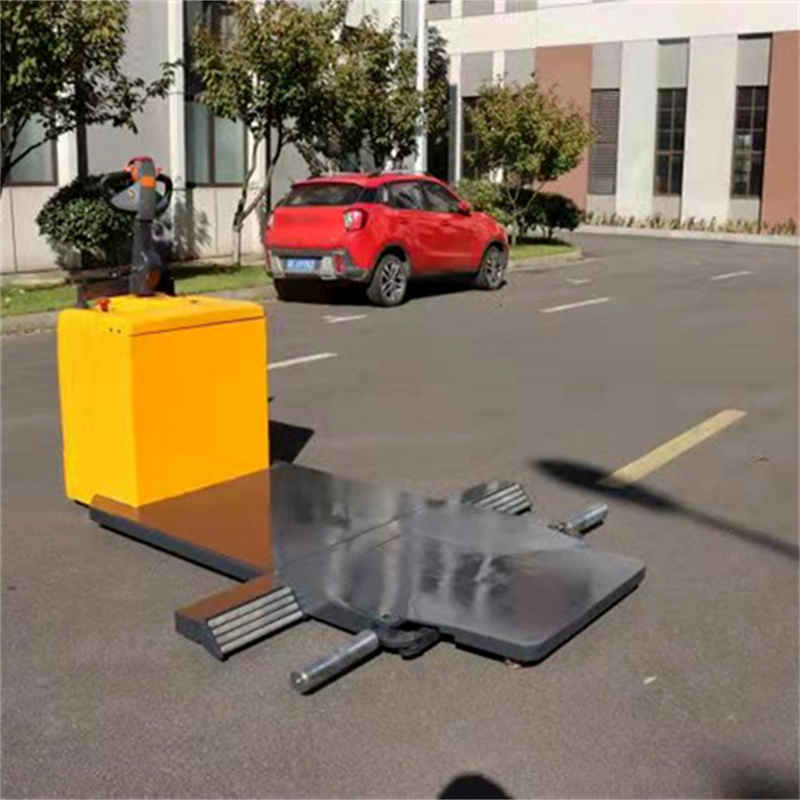

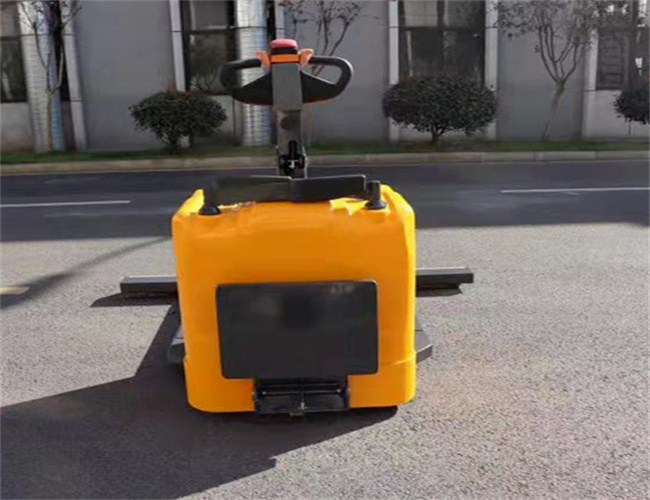

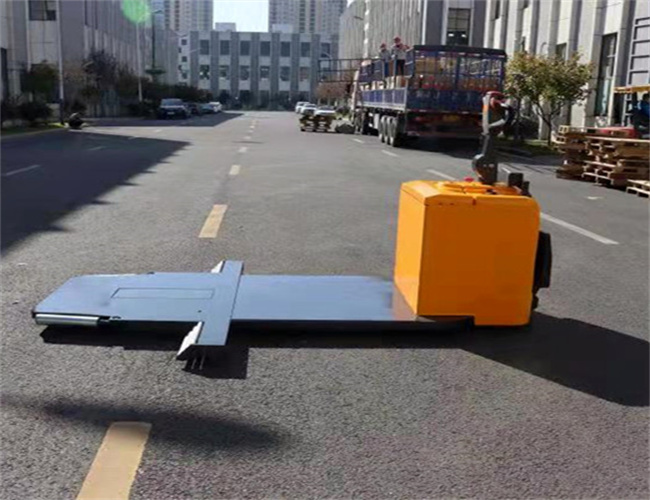

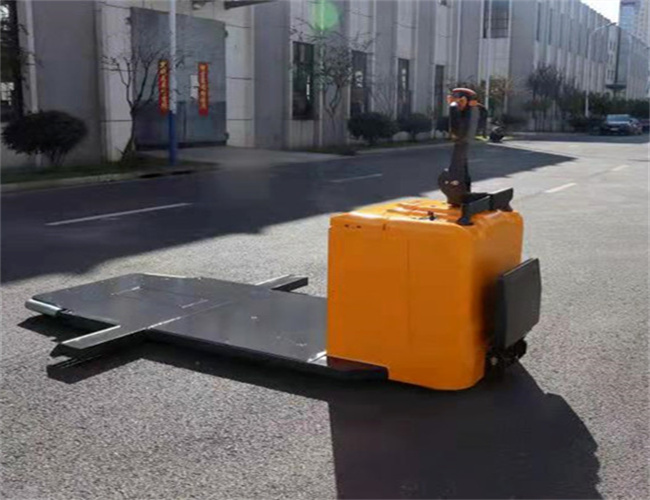

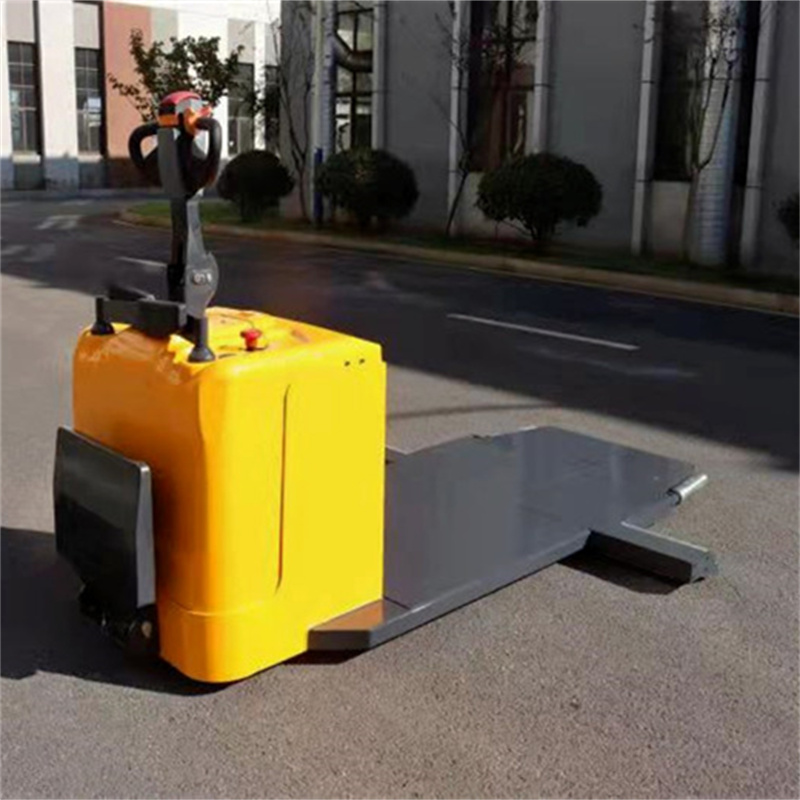

Product Figure

Advantages:
Hydraulic gear lever, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight, integrated low noise hydraulic pump, AC drive, carbon brush, motor maintenance free electromagnetic, regenerative braking system, front wheel multi-point universal bearing body shock absorption system, handle shock absorption.

Security:
automatic deceleration device for curves, drive stepless speed regulation, controller multiple automatic protection system, emergency reverse anti-collision/emergency brake device, cylinder safety cut-off valve.Low noise hydraulic, rail 90° rotation, optional lithium battery.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
