Storage Battery, Load Center 500mm, PU

Technical Parameters

technology parameters

CDD10A/15A Fully Electric Pallet Stacker (Walking Type)
Model		CDD10A/15A
Dynamic Type		Storage Battery
Operation Type		Walking handle type
Rated Capacity	kg	1000/1500
Load Center	mm	500
Tyre mode Front/Rear		PU
Wheel Bearing	mm	85*70
Driving wheeling	mm	210*70
Auxiliary Wheel	mm	130*55
Number of wheels		2/1X+1
Mast mode		2 Stage
Standard lifting height	mm	3000
Free Lifting Height	mm	0
Mast Lowered Height	mm	2080
Mast Extended Height	mm	3560
Minimum ground clearance of fork surface	mm	85
Overall Length	mm	1710
Wheel Base	mm	1185
Overall Width	mm	800
Tread Front/Rear	mm	525/535
Fork Size	mm	1150/160/60
Maximum forks width	mm	685/560
Aisle width (1000*1200 Pallet)	mm	2205
Aisle width (800*1200 Pallet)	mm	2145
Turning Radius	mm	1366
Driving Speed (Full Load/no load)	km/h	3.5/4
Lifting speed (Full Load/no load)	mm/s	80/125
Descend speed (Full Load/no load)	mm/s	150/100
Gradeability(S2-5) Full/no load	%	3%/6%
Driving Motor capacity	kw	0.75
Lifting Motor capacity	kw	2
Storage Battery V/Ah	V/AH	24/60
Battery Weight	kg	20
Overall Weight (with battery)	kg	625
Steering Type		Manual operation
Parking brake type		Electronic Brake
Parking brake operation mode		Handle Operation

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. special operation handle for narrow channel, low noise lifting hydraulic pump station, good climbing performance.
5.Mast channel steel for high strength forklift, large capacity lithium battery,
6.Drive stepless speed regulation, safety, quiet, controller multiple automatic protection system.
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.

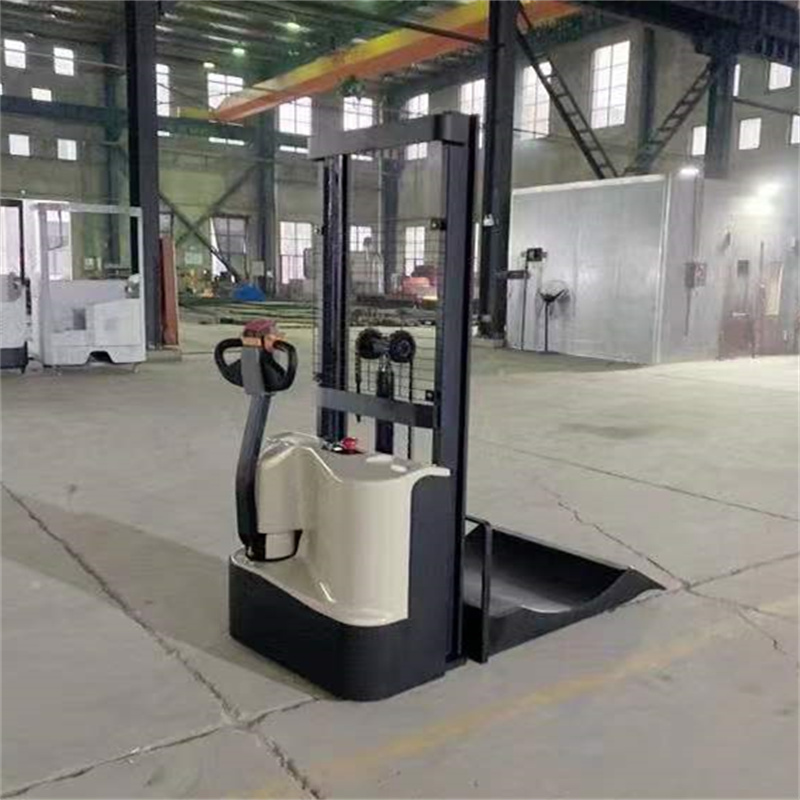

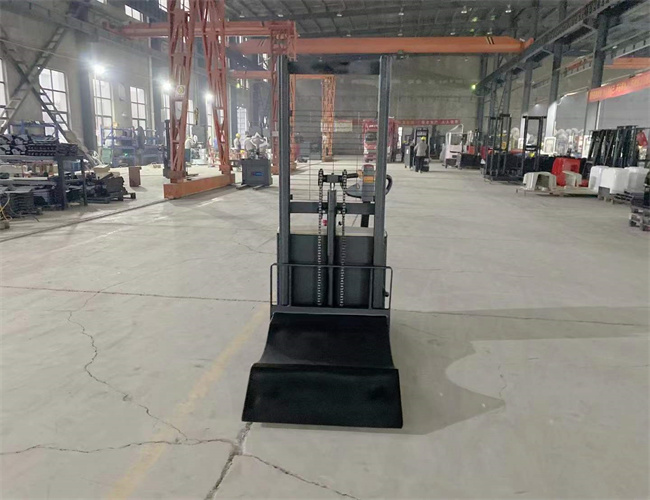

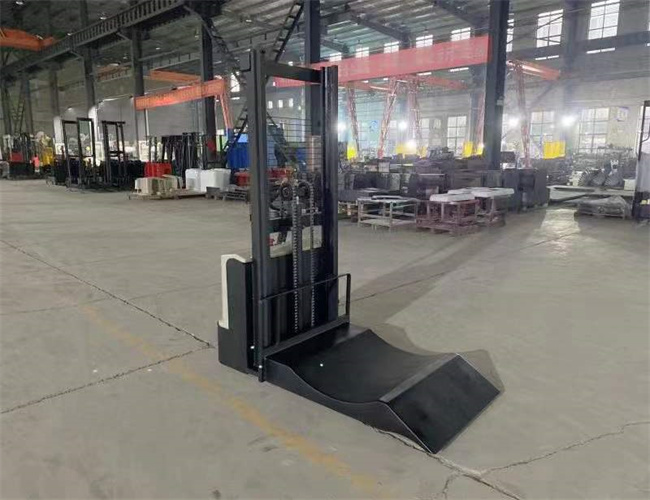

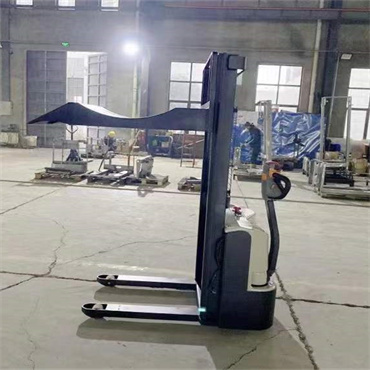

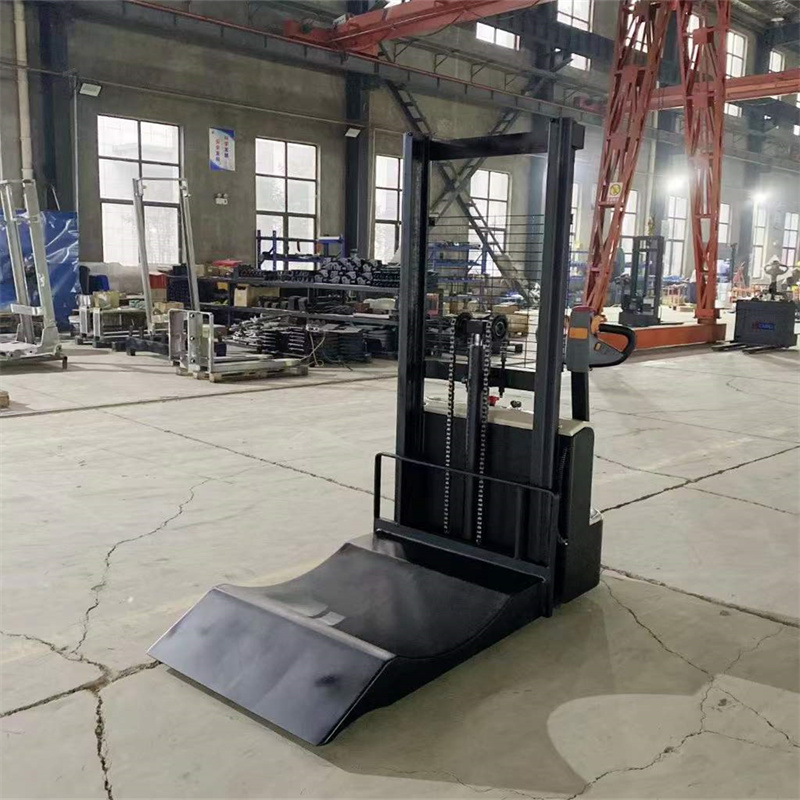

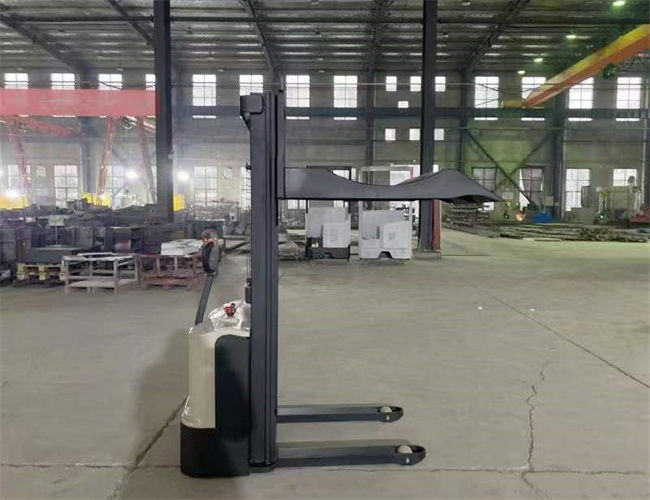

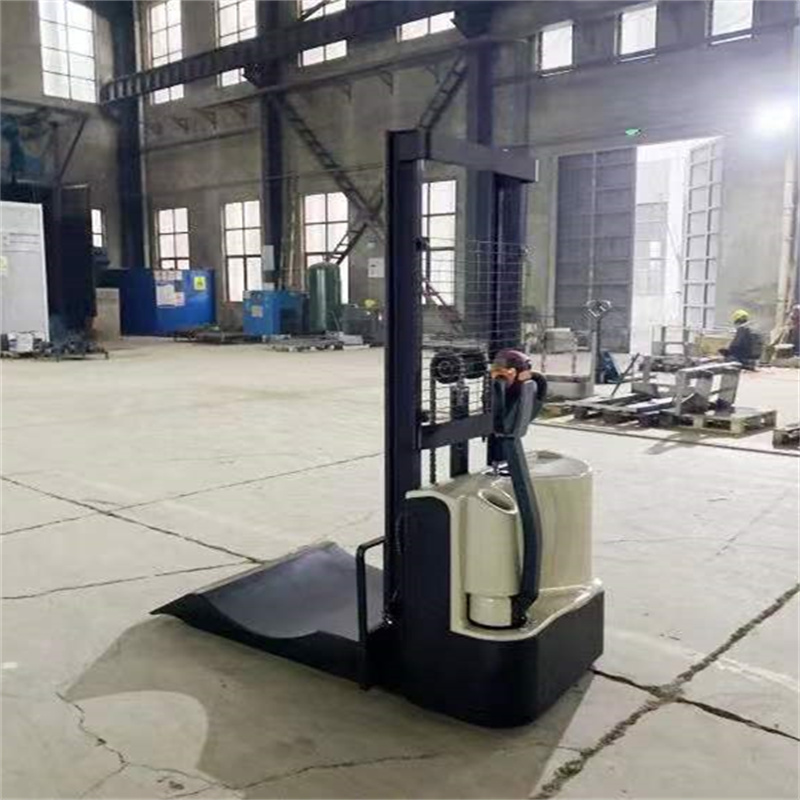

Product Figure

Advantages:
excitation drive motor, strong climbing force, high strength fork legs, cargo forks, special Mast channel steel for high strength forklift, large capacity lithium battery, special charger for built-in lithium battery, multi-functional integrated handle, special operation handle for narrow channel, low noise lifting hydraulic pump station, good climbing performance..

Security:
Drive stepless speed regulation, safety, quiet, controller multiple automatic protection system, emergency reverse anti-collision device/emergency power off switch, automatic deceleration in curves, fixed fork, optional lithium battery, optional 24V165/210ah lead-acid battery, suitable for single-side tray, non-standard customization.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
