1t CXD10-45 Electric High Lift-Order Picker

Rated Capacity1000 kg

Load Center450

Dynamic TypeFully Electric

Operation TypeMan Mount

Overall weight2600

We're here to help:Easy ways to get the answers you need.

1t Ton ElectricHigh Lift- Order Picker
Factory Supply 1t CXD10-45 Electric High Lift-Order Picker with Overall Weight 2600kg.

technology parameters

Model   CXD10-45
Rated Capacity kg 1000
Load Center mm 450
Dynamic Type   Fully Electric
Operation Type   Man Mount
Overall weight kg 2600
Driving Wheel mm 230*75
Front wheel mm 150*90
Auxiliary Wheel   130*55
Lifting Height mm 4260
MAX. Fork lifting height mm 4860
Overall Length mm 2830
Overall Width mm 1160
Mast Lowered Height mm 2310
Mast Extended Height (with backrest) mm 6510
Overhead Guard Height mm 2250
Min. Ground Clearance mm 50
Min. height of operating table from ground mm 240
Auxiliary lifting height mm 600 (optional)
Max. height of operating table from ground mm 4500
Fork Size mm 920*100*40
Fork outside width mm 680
Turning Radius mm 1735
Right-angle channel (1200 horizontal x1000)   3285
Driving Speed (full/no load) km/h 4km/h/5km/h
Gradeability % 0
Braking mode   Electromagnetic
Driving motor V/KW 24/1.6
Lifting motor V/KW 24/3.0
Storage Battery V/Ah 24/360
Lifting Speed (full/no load) mm/s 115/100
Descend Speed(full/no load) mm/s 125/200



FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Wide Angle, high strength, Mast, the CURTIS brand drive control system, the vertical drive systems.
4. electronic steering, lightweight, mute, integrated low noise hydraulic pump, hydraulic valve,.
5. since the word ac drive free maintenance, no carbon brush, motor, electromagnetic, regenerative braking system, the integrated ceiling, thumb switch, vehicle suspension system.

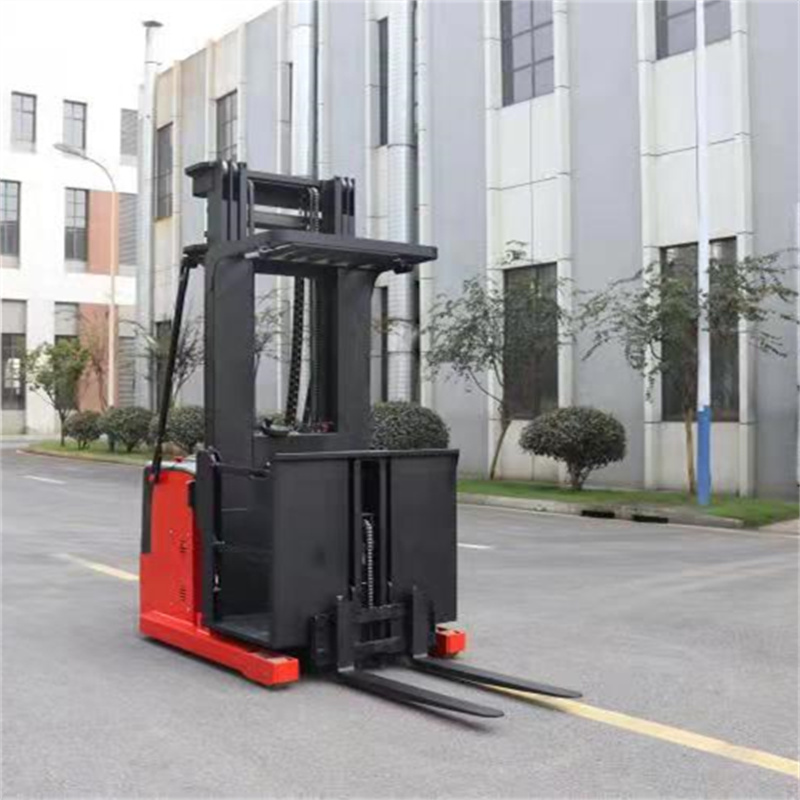

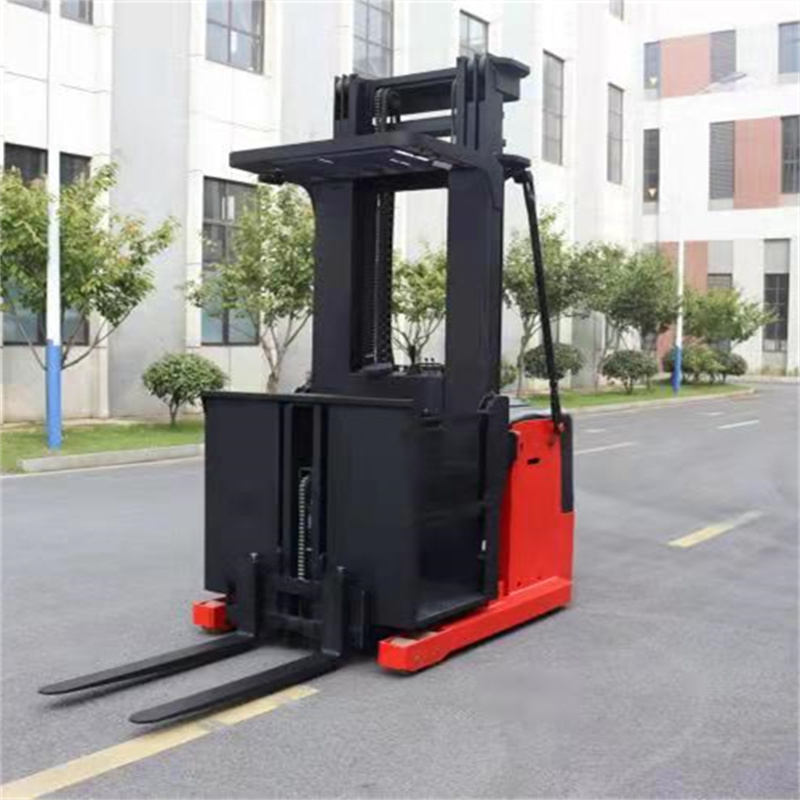

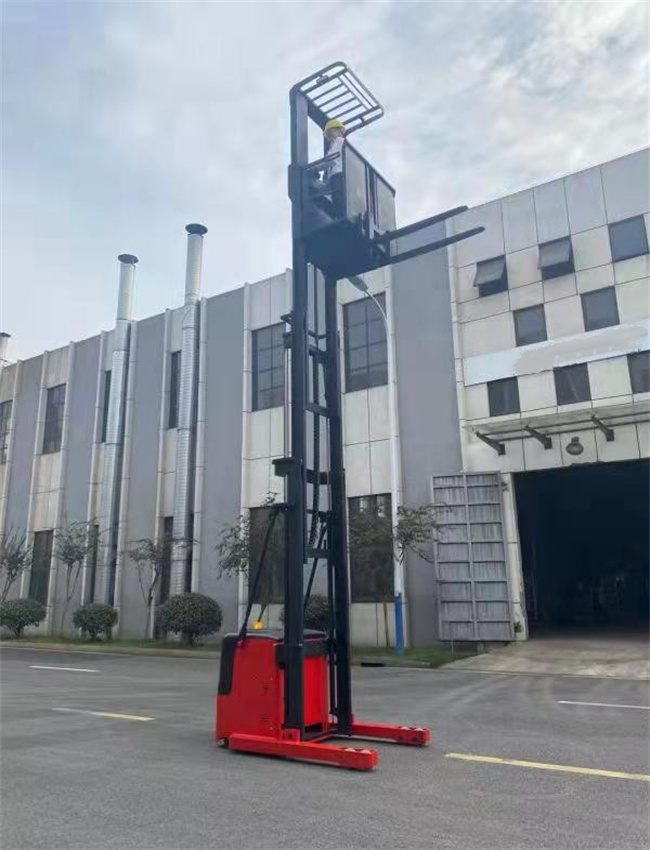

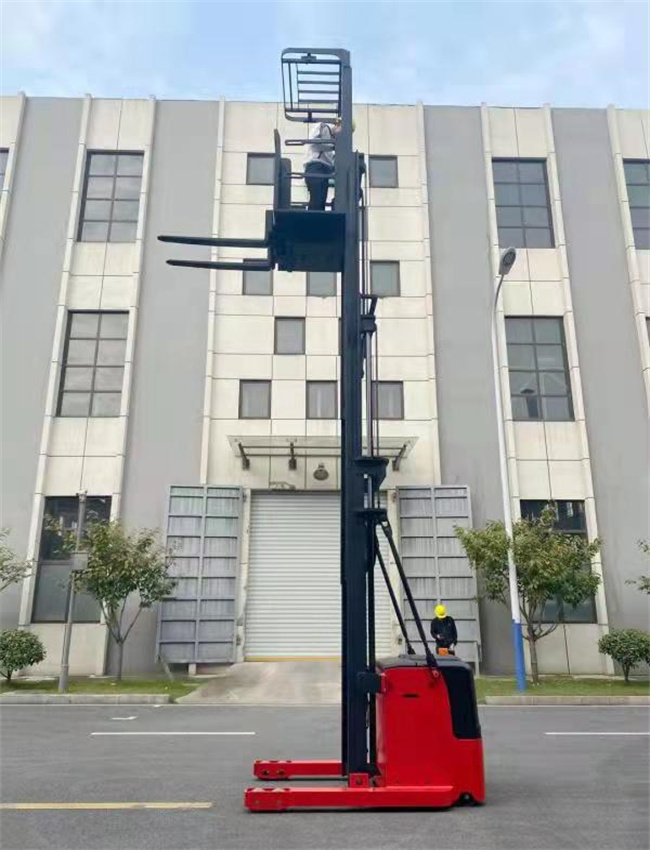

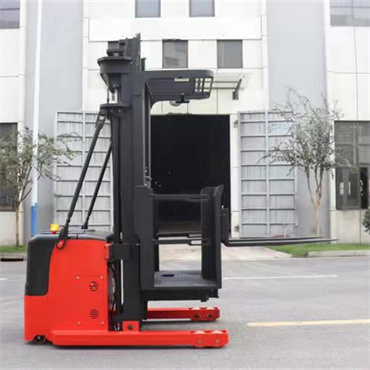

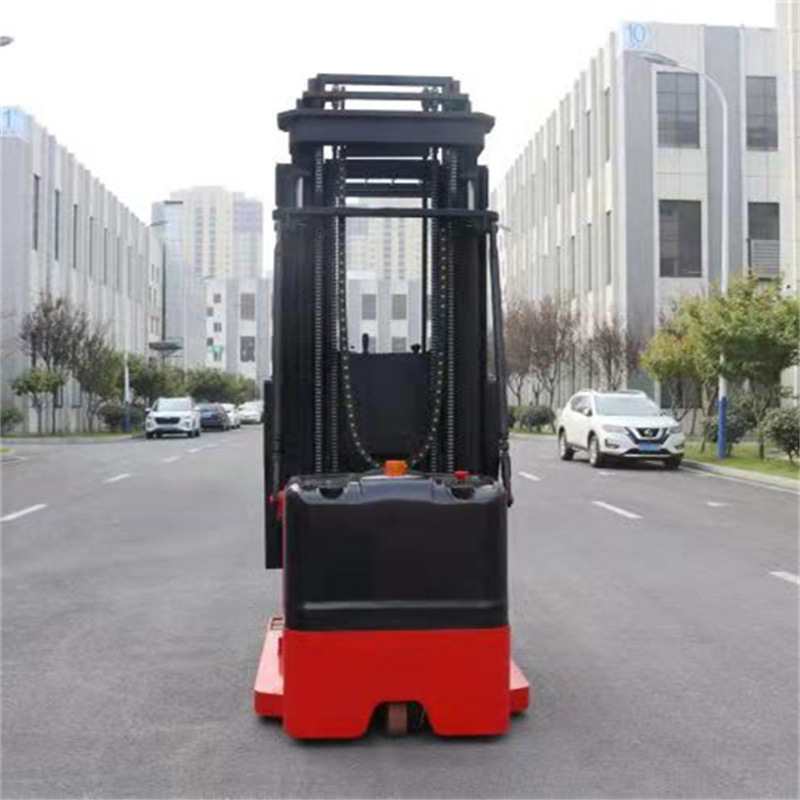

Product Figure



Advantages:

Wide Angle, high strength, Mast, the CURTIS brand drive control system, the vertical drive systems, electronic steering, lightweight, mute, integrated low noise hydraulic pump, hydraulic valve, since the word ac drive free maintenance, no carbon brush, motor, electromagnetic, regenerative braking system, the integrated ceiling, thumb switch, vehicle suspension system.




Security:
Bend automatic deceleration device, fork high cargo position automatic deceleration, drive stepless speed regulation, controller multiple automatic protection system, oil cylinder safety cut-off valve low noise hydraulic, optional fork auxiliary lifting, provide non-standard customization.

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
