Rated Capacity 12000KG, Load Center 600MM, Min. Ground Clearance 180 MM

Technical Parameters

technology parameters

FLIFT CBD120 Fully Electric Pallet Truck (Standing type)
Product Name		Electric Pallet Truck
Model		CBD120
Rated Capacity	kg	12000
Load Center	mm	600
Min. Ground Clearance	mm	180
Max. Ground Clearance	mm	285
Operation Type		Standing type
Overall Width	mm	1020
Overall Length	mm	2400 (Pack up the pedal)
Fork outside width	mm	900
Min. handle ground clearance	mm	1660
Fork Size	mm	1200*380
Driving Speed(load/no load)	Km/h	5km/h/6km/h
Lifting motor	kw	6.3
Driving motor	kw	6.5
Steering motor	kw	0.7
Brake type		Electromagnetic brake
Steering Type		Electronic steering
Overall Weight	kg	~1900
Gradeability	%	≤4
Storage Battery Capacity	V/ah	48/300
Battery charger	V/A	48/40
Driving Wheel	mm	Φ343*136
Bearing Wheel	mm	Φ150*80
Auxiliary Wheel	mm	Φ150*50

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Double cylinder, CURTIS brand drive control system, vertical transmission, electronic steering, lightweight, silent, integrated hydraulic pump.
5.drive speed compensation, short circuit protection, electromagnetic, regenerative braking system.
6.High and low voltage limit electrical overheating protection, line fault detection error code diagnosis, Camel brand 48V large capacity lead acid battery.
7.Bend automatic deceleration device, drive stepless speed regulation;
8.Super low & Non-slip step.

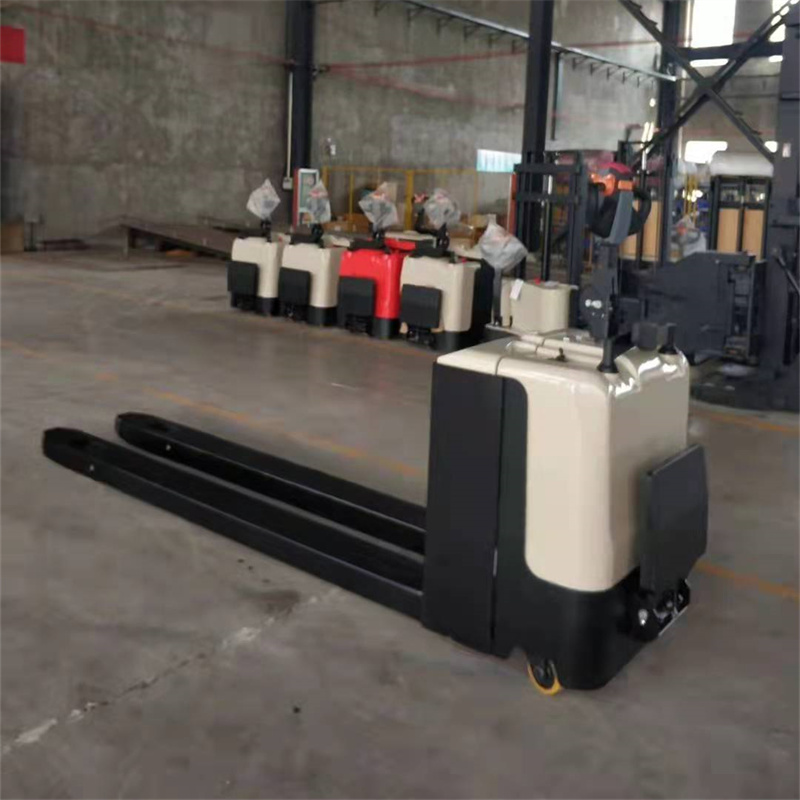

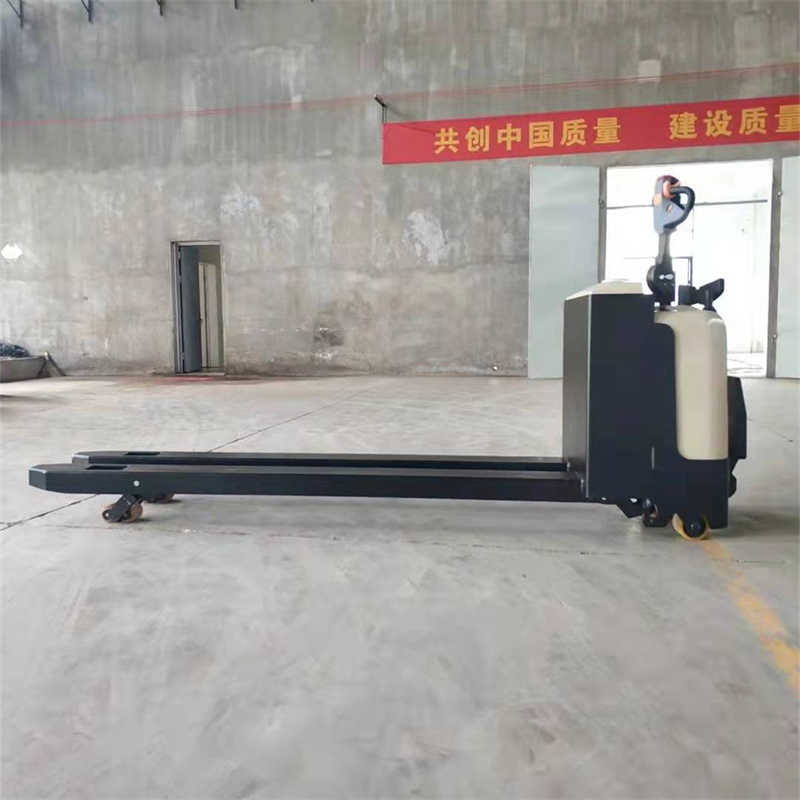

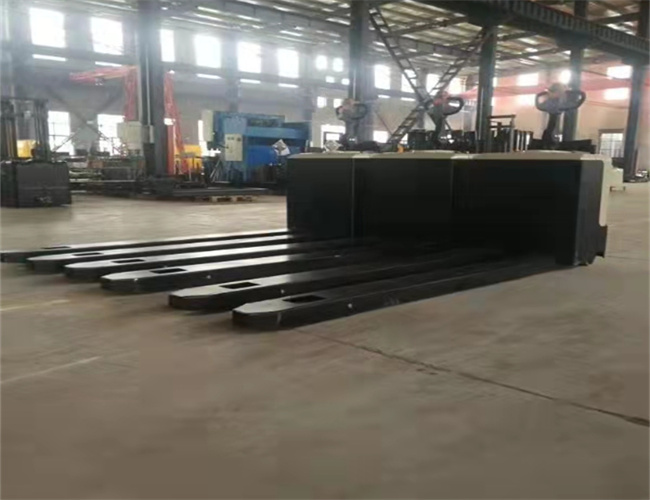

Product Figure

Advantages:
Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.

Security:
Bend automatic deceleration device, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
