QDD60 Seated Type Fully Electric Tractor
BrandFLIFT
ModelQDD60
Dynamic TypeElectric
Operation TypeSeated Type
Traction Weight6000 kg
We're here to help:Easy ways to get the answers you need.
- 3 Ton Seated Type Fully Electric Tractor
- High Efficient QDD60 Seated Type Fully Electric Tractor with Solid Rubber .
.jpg)
technology parameters
| Model | QDD60 | |
| Dynamic Type | Electric | |
| Operation Type | Seated Type | |
| Traction Weight | kg | 6000 |
| Tyre type (Front/Rear) | Solid Rubber | |
| Front wheel | 3.50-5 | |
| Rear wheel | 4.00-8 | |
| Min. Ground clearance | mm | 95 |
| Overall Length | mm | 2020 |
| Wheel Base | mm | 1325 |
| Overall width | mm | 985 |
| Tread (Front/Rear) | mm | */870 |
| Turning Radius | mm | 1525 |
| Driving Speed (full load/no load) | Km/h | 8km/h/15km/h |
| Gradeability (full load/no load) | % | 6%/12% |
| Driving motor capacity | kw | 5 |
| Battery Voltage/capacity | V/AH | 48/280 |
| Battery Weight | kg | 550 |
| Overall Weight (with battery) | kg | 1200 |
| Steering type | Electronic Steering | |
| Parking Brake type | Mechanical/hydraulic |
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Hydraulic power steering, lightweight and quiet, bridge drive unit, AC drive, carbon brush free, maintenance-free.
5. CURTIS Drive controller, regenerative braking system, safety seat, forward/backward fine adjustment, easy operation and flexible steering.
6Drive stepless speed regulation, controller multiple automatic protection system.
7.emergency brake switch walking warning light, hydraulic brake hydraulic power, wiper walking alarm light
8.Super low & Non-slip step.
.jpg)

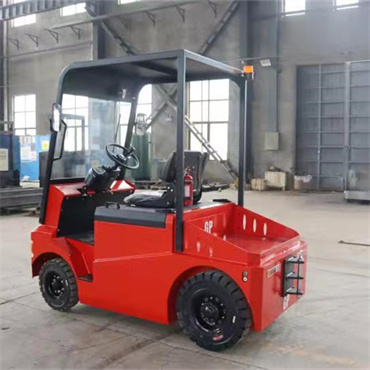

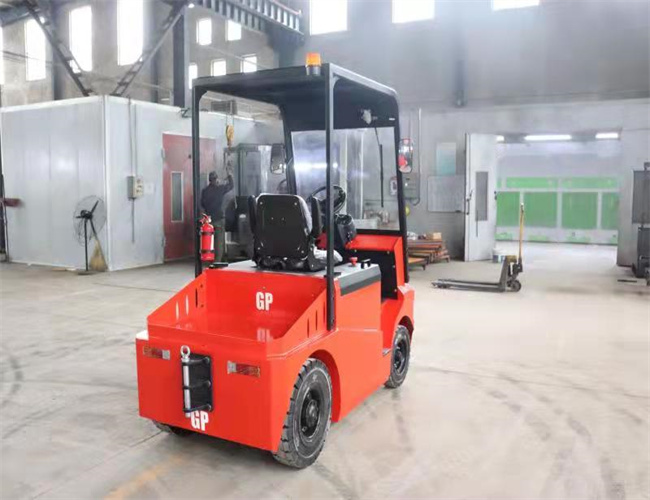

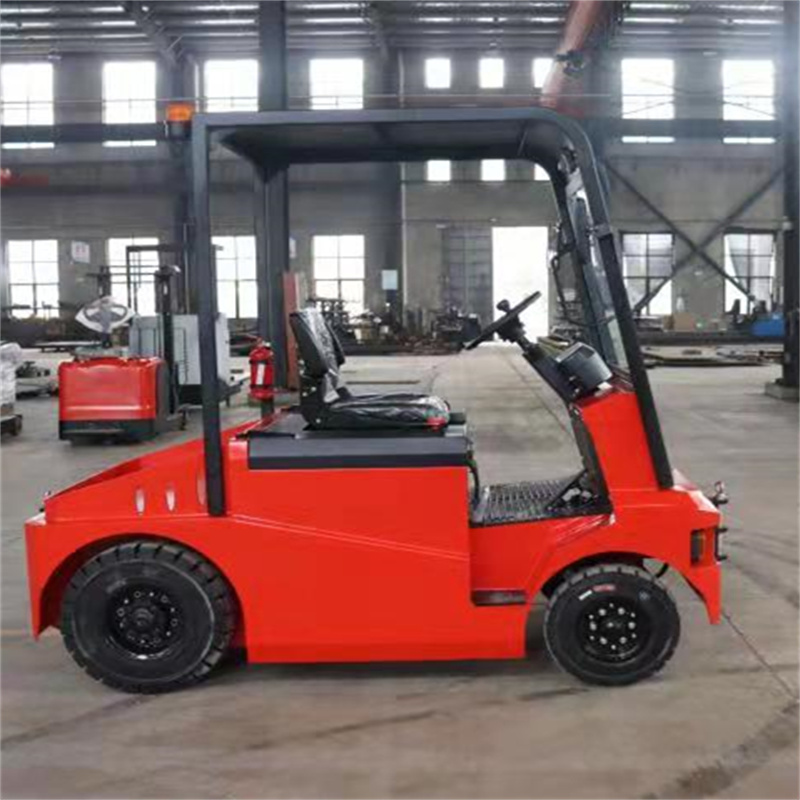

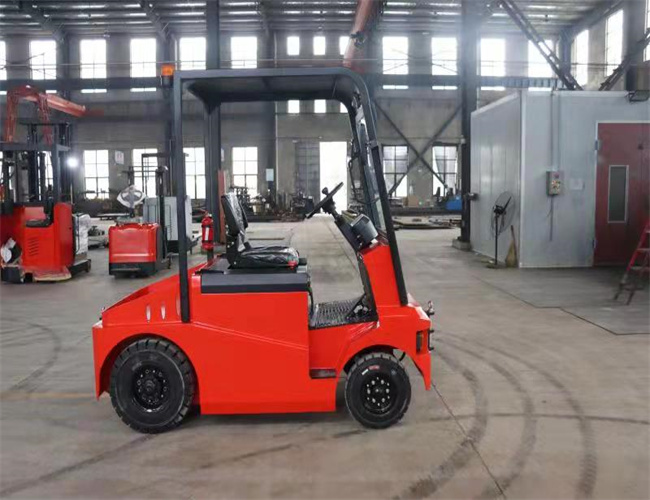

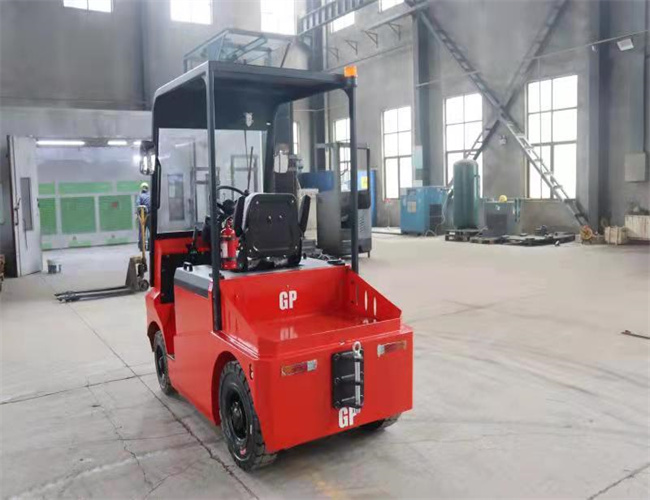

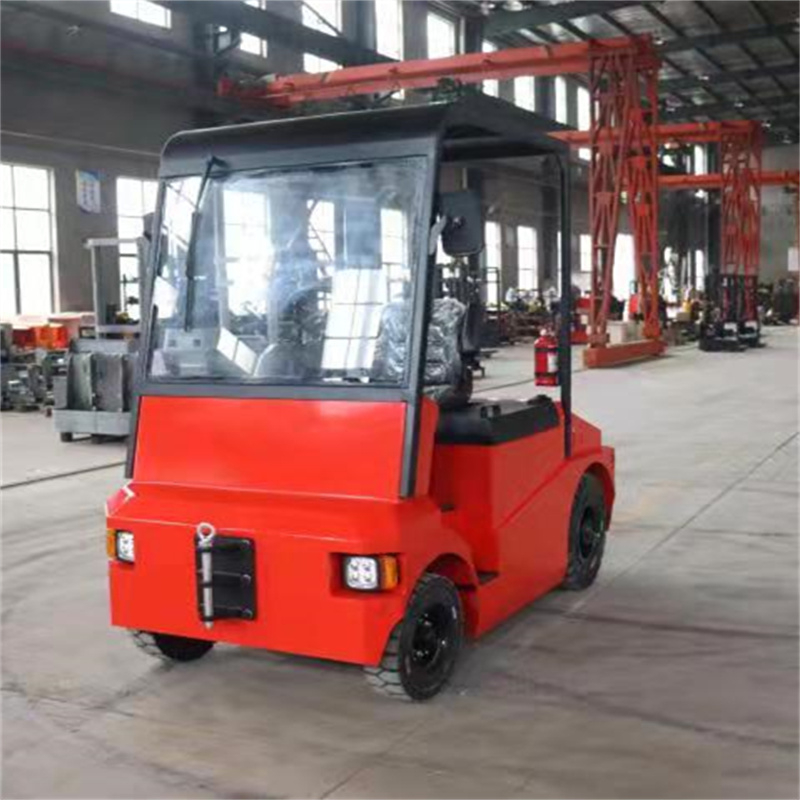

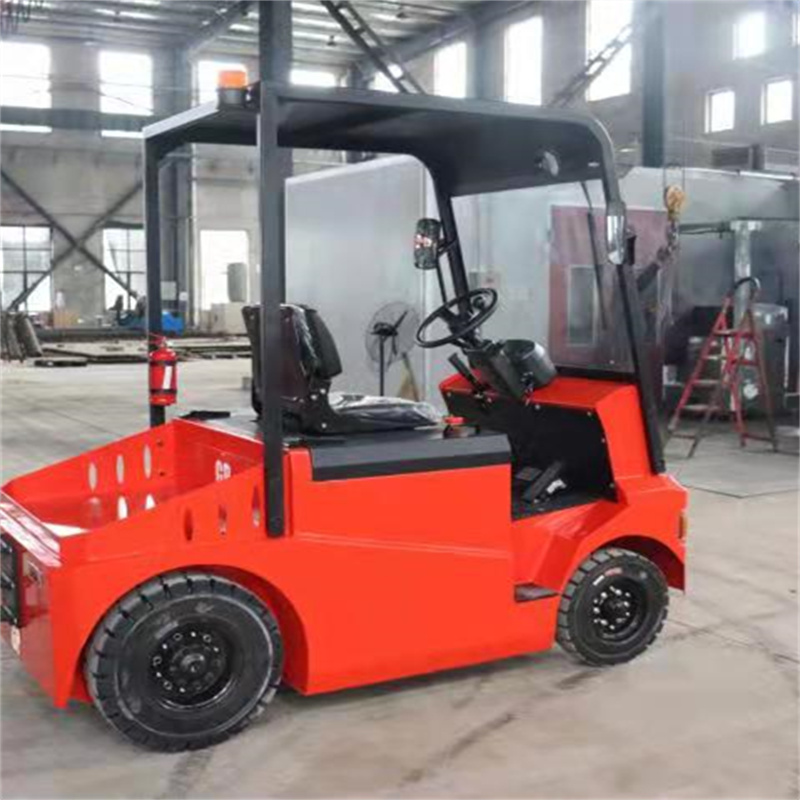

Product Figure
.jpg)
Advantages:
Hydraulic power steering, lightweight and quiet, bridge drive unit, AC drive, carbon brush free, maintenance-free, CURTIS Drive controller, regenerative braking system, safety seat, forward/backward fine adjustment, easy operation and flexible steering. Security:.
Security:
Drive stepless speed regulation, controller multiple automatic protection system, emergency brake switch walking warning light, hydraulic brake hydraulic power, wiper walking alarm light, optional lithium battery, automatic deceleration curve, optional roof protection frame, non-standard customization..
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
