Heavy-Duty 6000kg Electric Pallet Truck for Paper Roll & Reel Handling

Technical Parameters

FLIFT - CQD60R 6Ton Electric Paper Reel Pallet Truck
Model		CQD-60R
Operate Type		Electric
Operation Type		Seated Type
Rated Capacity	kg	6000
Load Center	mm	600
Applicable diameter range of paper rolls	mm	1600mm
Tyre mode	mm	Solid PU
Front Wheeling Size	mm	Φ267*114
Driving Wheeling Size	mm	Φ343*135
Standard Lifting Height	mm	130
Stationary Height	mm	2190
Seat height	mm	970
Driving Speed	km/h	7.5/8
Lifting Speed	mm/s	150/400
Descend Speed	mm/s	350/160
Gradeability	%	8%/15%
Driving motor capacity	kw	6.5
Lifting motor capacity	kw	8.6
Battery Voltage/Capacity	V/AH	48/420(Lead - Acid Battery)
Battery Voltage/Capacity	V/AH	51.2/400(Lithium Iron Battery)
Controller Brand		American Curtis
Battery Weight	kg	700
Overall Weight	kg	Around 3650
Steering Type		Electronic steering
Parking Brake Type		Electromagnetic brake

FEATURES

Paper Reel Handling Equipment Manufacturer
Character:
1,6,000 kg Heavy-Duty Capacity
Handles paper rolls weighing up to 6,000 kg, making it ideal for demanding paper mills,warehouses.
2,2450 mm Extended Fork Length
The extra-long 2450 mm forks provide stable support and secure handling of large and heavy paper rolls.
3,Designed for 1600 mm Paper Rolls
Optimized for handling paper rolls up to 1600 mm in diameter for efficient roll transportation and positioning.
4,Powerful Lithium-Ion Battery
The 51.2V/400Ah lithium-ion battery delivers reliable power,long operating hours.
5,CURTIS AC Control with EPS & OPS
Precise operation,responsive steering,and safety.
6,Stable Ride-On Design & Four-Link Lifting
Improve operator convenience,load stability.

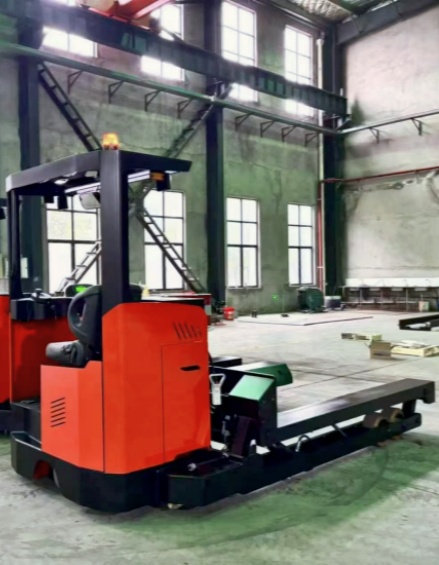

paper roll pallet jack manufacturer

Applications

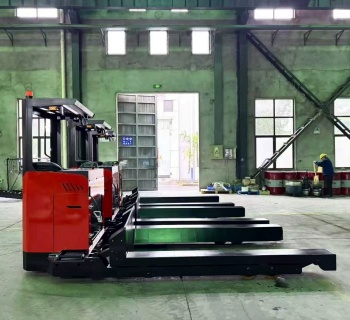

custom paper roll handling truck pallet truck for paper mill

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
