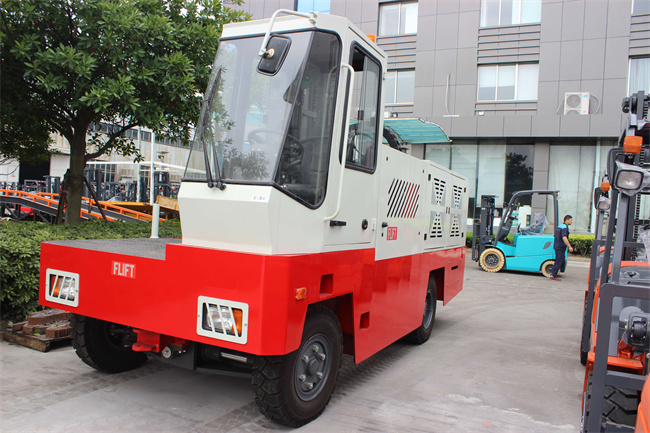

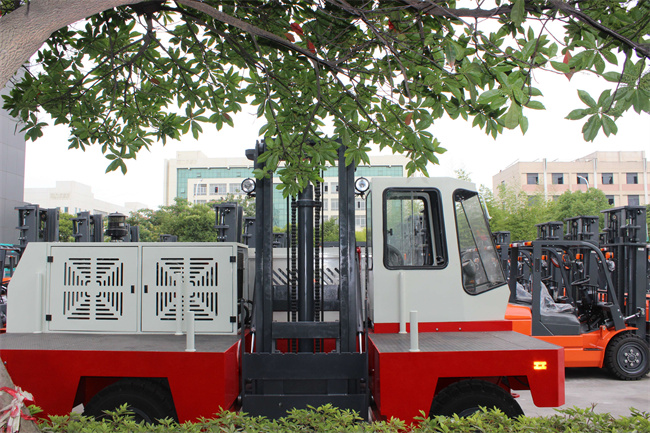

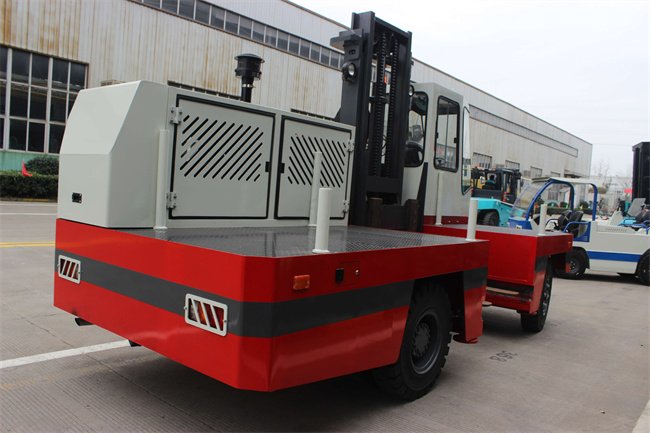

Multi-function FBS30 3ton Electric Side Loader Forklift with Fork Width 125mm for out door use

Date: 2022-04-18 View:

High Capacity Rated Capacity 3ton FBS30 Electric Side Loader Forklift with Load Centre 500mm




A side loader forklift, also known as a side loader, is a piece of materials handling equipment designed for long loads.The operator’s cab is positioned up front on the left hand side. The area to the right of the cab is called the bed or platform. This contains a central section within it, called the well, where the forks are positioned.The mast and forks reach out to lift the load at its central point and lower it onto the bed.



The load can then be safely carried on the bed with the operator facing forward.Side loader forklifts were originally developed for the timber / lumber industry.Since those early years, they have become increasingly important in the steel, plastics and concrete industries.Carrying a long load with a forklift presents a number of difficulties.It is difficult to see the width of a load when moving forward with the forks lowered.



Travelling with the forks raised, however, is incredibly dangerous, and the main cause of tipping accidents.Side loaders travel forwards with the load secure at the side. Travelling long distances or through narrow doorways and aisles is simple. As a result, loads are stored in smaller areas, increasing efficiency, safety and productivity.Just like forklift trucks, where terms like lift truck, and loader forklift are still common, so too side lifting forklifts are sometimes known by other terms.



Conversations around side loader forklifts, side loaders and side loading, typically involve long loads and narrower aisles.The lift capacity, load type, whether wide or long and heavy loads are also important.Ultimately, lifting loads with a diesel side loader or an electric side loader has often proved safer and more productive than fork lifts in timber, steel, and other heavy loads industries.



Product Parameters

Model     FBS30
Power Type     Battery
Rated Capacity   kg 3000
Load Centre   mm 500
Service Weight   kg 6850
Lift Height H mm 3600
Free Lift Height   mm 85
Mast Extended Height H1 mm 4465
Mast Lowered Height H2 mm 2525
Fork Size (L*W*T) L4 mm 1070x125x45
Mast Tilt Angle(F/R) a/|3 Deg 6°/4°
Front Overhang L2 mm 730
Rear Overhang L3 mm 715
Wheelbase L1 mm 2700
