China forklift manufacturer 3.5 ton diesel forklift customized with double front tires for sale

Date: 2022-04-18 View:

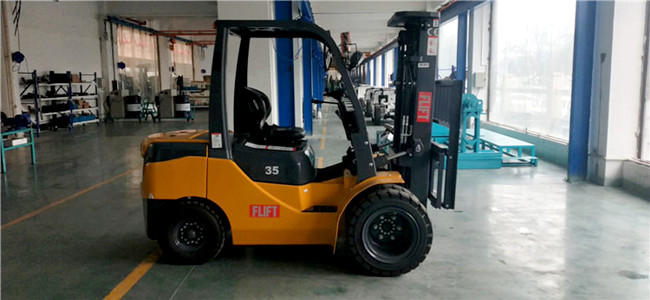

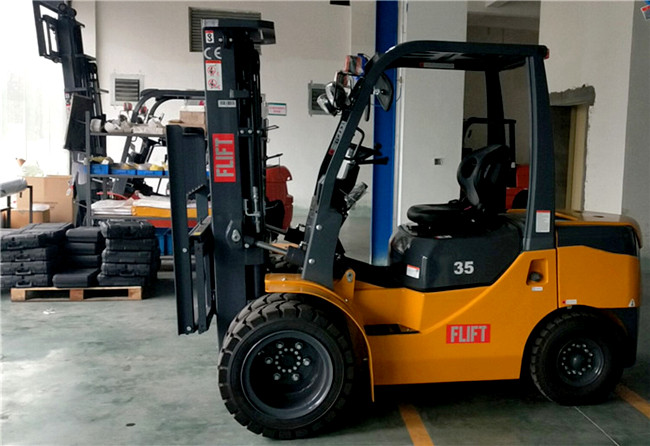

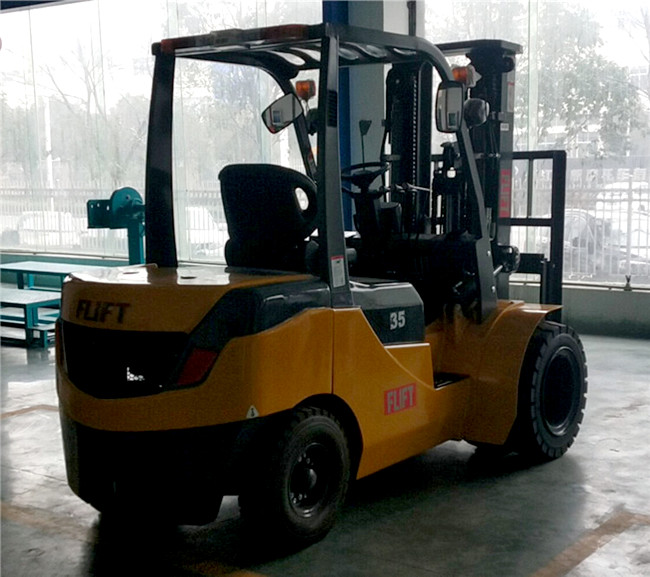

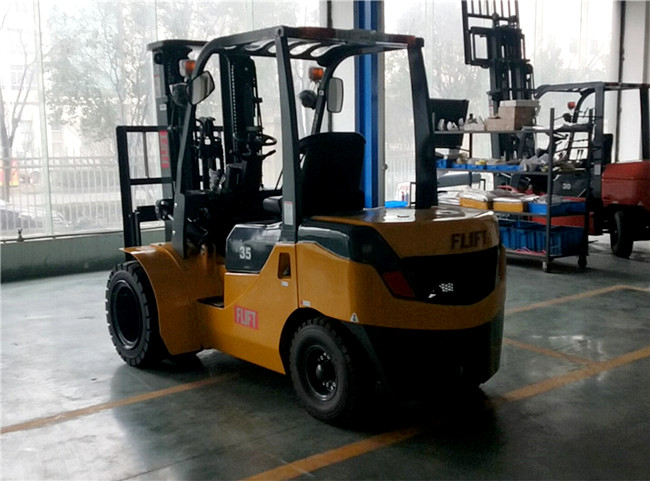

 3.5 Ton Diesel Forklift Truck With Triplex 4.5 Meter Mast With Double Front Tires Price


We are a professional and leading forklift manufacturer in China and we specialize on providing various kind of Material Handling Equipment,Warehouse Equipment,Ground Support Equipment and Spare Parts etc.


The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.

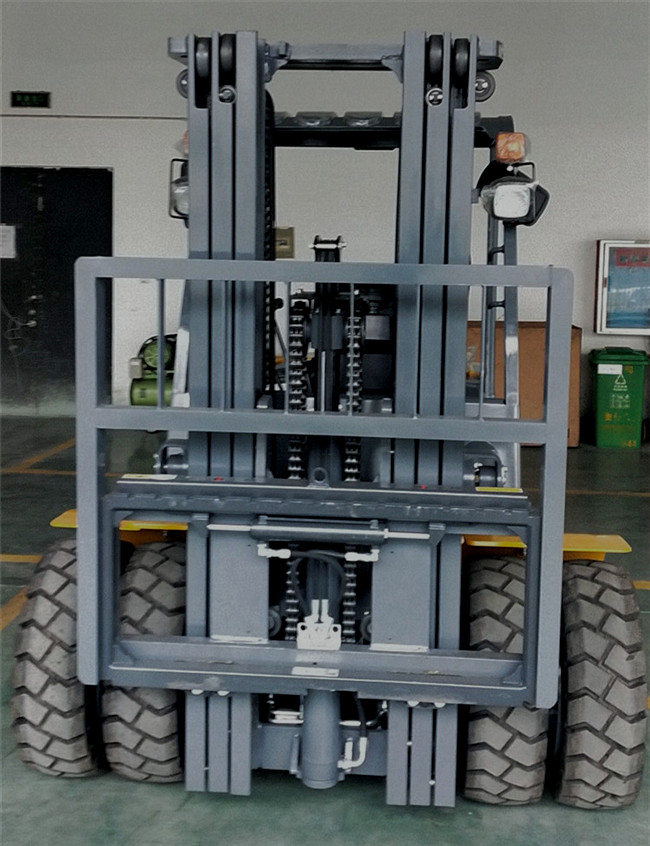

Triplex full free door frame pipeline back-mounted design, with a vision and duplex door frame.


Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%.


Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.



FLIFT 3.5 ton diesel forklift truck specifications
Model
FD35
Rated Capacity kg 3500
Load Centre mm 500
Lift Height mm 4500
Fork Size (L*W*T) mm 1070*125*50
Mast Tilt Angle (F/R) Deg 6°/6°
Front Overhang (Wheel Center to fork face) mm 480
Ground Clearance (Bottom of mast) mm 135
Length to face of fork(Without fork) mm 2770
Overall Width mm 1225
Mast Lowered Height mm 2135
Mast Extended Height(With backrest) mm 5675
Overall Guard Height mm 2090
Turning Radius(outside) mm 2480
Min. insecting aisle mm 2530
Travel(Empty load) km/h 19
Lifting(Full load) mm/s 520
Max. Gradeability % 20
Wheel Base mm 1700
Service Weight kg 4500
Battery Voltage/Capacity V/Ah (12V/80Ah)
Operating Pressure for Attachment Mpa 17.5

FLIFT forklift CE approved:
