Electric Forklift China FLIFT Brand 3.5 Ton Explosion-proof Electric Forklift

Date: 2022-04-02 View:

 FLIFT High Safety Explosion-proof Electric Forklift 3.5 Ton Price


FLIFT forklift 1.5 - 3.5 tons explosion-proof electric forklift truck is designed on the basis of normal serial forklift, combined with advanced domestic and foreign technology, strictly accordance with the national explosion-proof electrical standard.


The forklift can be used in type IIA and IIB level, the temperature of the T1 ~ T4 group of explosive gases 1 zone and 2 zone and the temperature of the T1 ~ T4 group explosive dust formation of 21, 22.Low noise, excellent steering performance, stable and reliable, easy operating.

The explosion-proof level reaches international leading level.

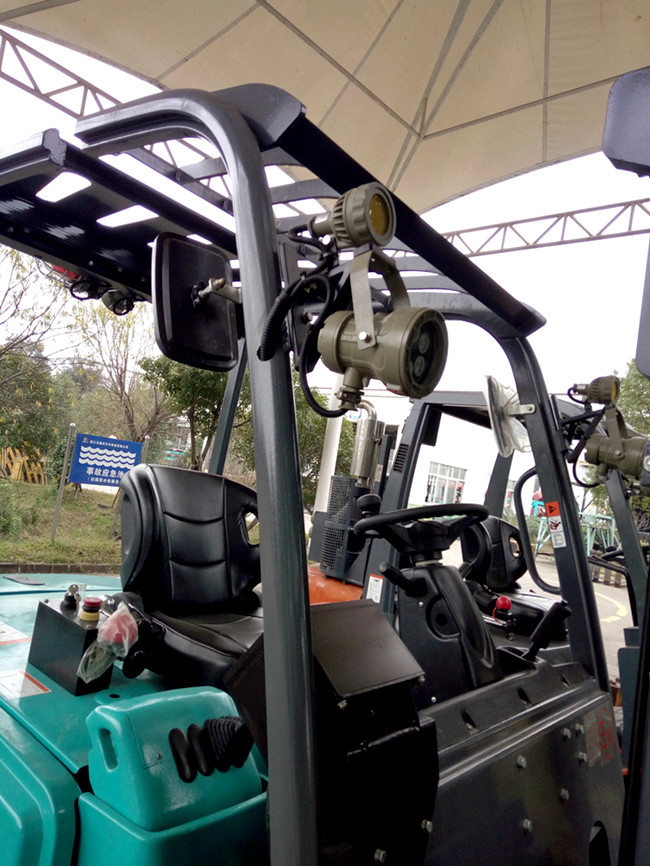

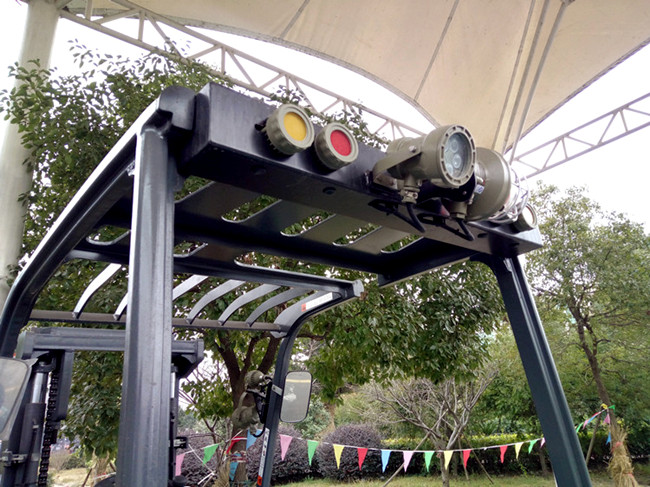

The whole light systemon the forklift are anti-explosion.


The forklift carrying explosion-proof control system, it monitors the insulating property, operation temperature and running speed. Equippes with emergency stop function, ensure the safety of persons and property in critical situation.


Explosion-proof AC motor, excellent performance, free-maintenance.



FLIFT 3.5 ton explosion-proof electric forklift specification
Model
FB35-EX-C2
Rated Capacity kg 3500
Load Centre mm 500
Lift Height mm 3000
Fork Size (L*W*T) mm 1070*125*50
Mast Tilt Angle (F/R) Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 485
Tread (F/R) mm 1000/980
Ground Clearance (Bottom of mast) mm 140
Fork Spread (Min./Max.)
250/1100
Length to face of fork(Without fork) mm 2615
Overall Width mm 1230
Mast Lowered Height mm 2055
Mast Extended Height(With backrest) mm 4180
Overall Guard Height mm 2250
Turning Radius(outside) mm 2350
Min. insecting aisle mm 2425
Travel(Empty load) km/h 14
Lifting(Full load) mm/s 280
Max. Gradeability % 15
Front Tire
28*9-15-12PR
Rear Tire
18*7-8-14PR
Wheel Base mm 1700
Service Weight kg 5700
Battery Voltage/Capacity V/Ah 80/500

FLIFT forklift CE certification:
