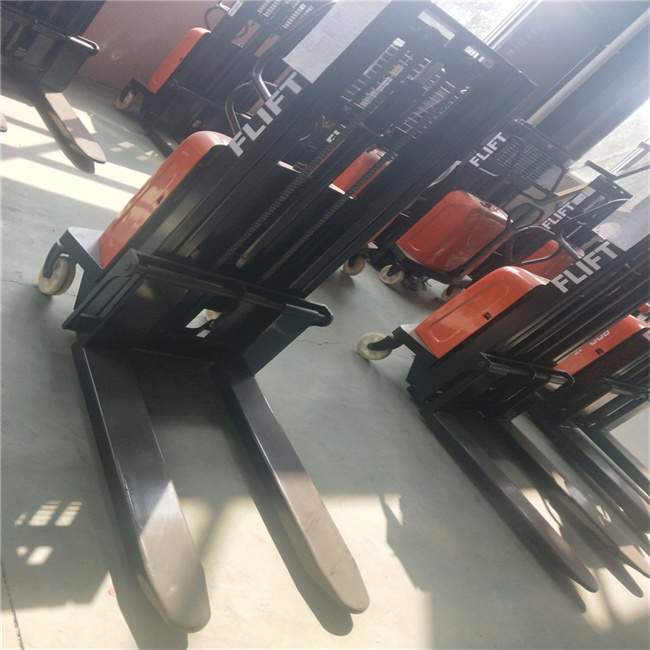

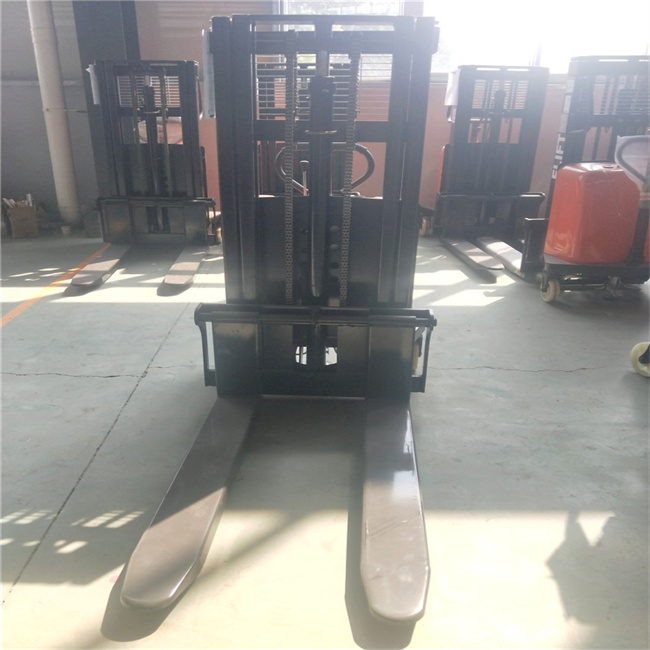

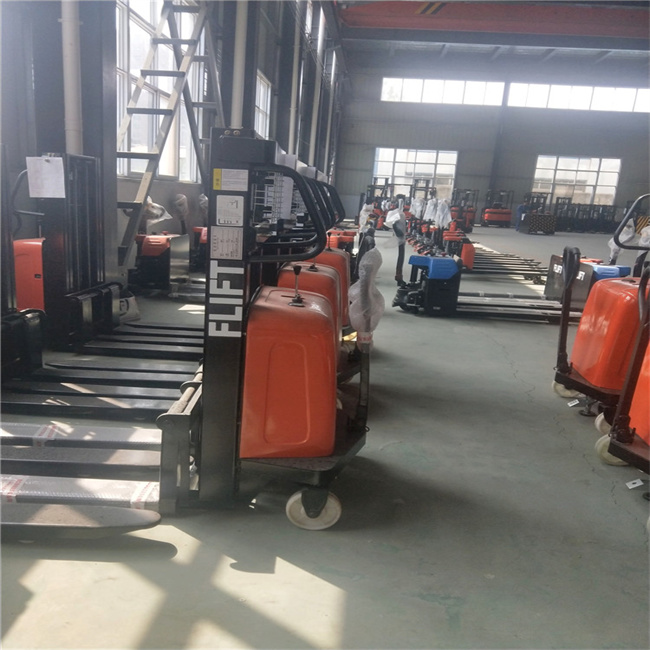

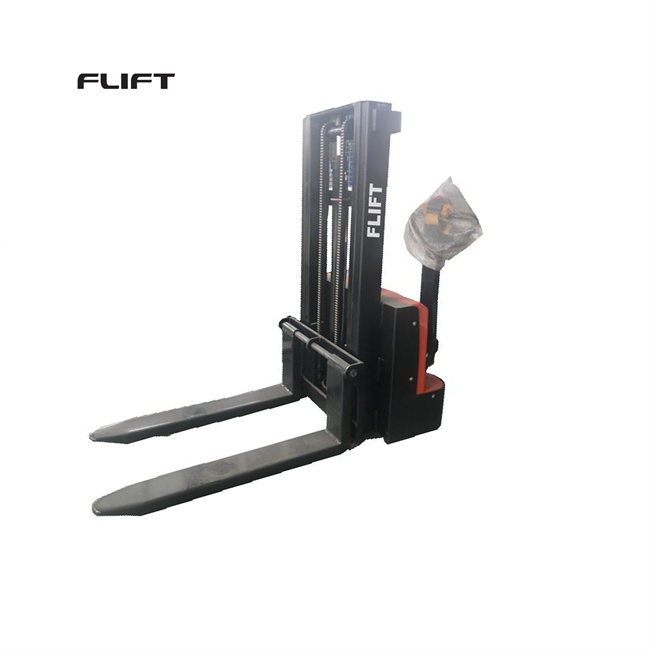

Famous Brand FLIFT Load Center 400mm DGX1220 1.2t Electric Pallet Stacker with Lifting Height 2000mm

Date: 2022-06-07 View:

Easy Operation High Safety DGX1220 1200kg Electric Pallet Stacker with Min, Turning Radius 1400mm



Main performance introduction
(1) The steering is flexible and the whole machine runs smoothly.
(2) Adjustable auxiliary wheels to solve the slip of the driving wheels with traditional structure.
(3) Maintenance-free power battery, and optional 24V/60Ah/80Ah/100Ah.
(4) The fault lamp is installed externally, which is convenient for maintenance and judgment.
(5) Control system intelligent code diagnosis fault, low voltage automatic protection, intelligent charging device.



Electric stacker is a kind of transport vehicle for loading and unloading, stacking and short-distance transportation of pallets.
1. Including: all electric stacker, semi electric stacker, forward moving stacker, forward moving all electric stacker, forward moving counterweight stacker.



2. Electric stacker is widely used in factory workshop, warehouse, distribution center, station, freight yard and so on. It can enter the cabin, carriage and container to load and unload pallet goods.



Product Parameters
Power Type
Storage Battery
Rated Capacity kg 1200
Load Centre mm 400
Lifting Height mm 2000
Fork Size mm 1080*140*60
Fork Distance(Outside) mm 685
Overall Length mm 1730
Overall Width mm 800
Mast Lowered Height mm 1580
Mast Extended Height mm 2250
Min, Turning Radius mm 1410
Min. Right-angle channel width mm 1000
Wheelbase mm 1151
Self-Weight kg 500
Min. Ground Clearance mm 30

Certificate
