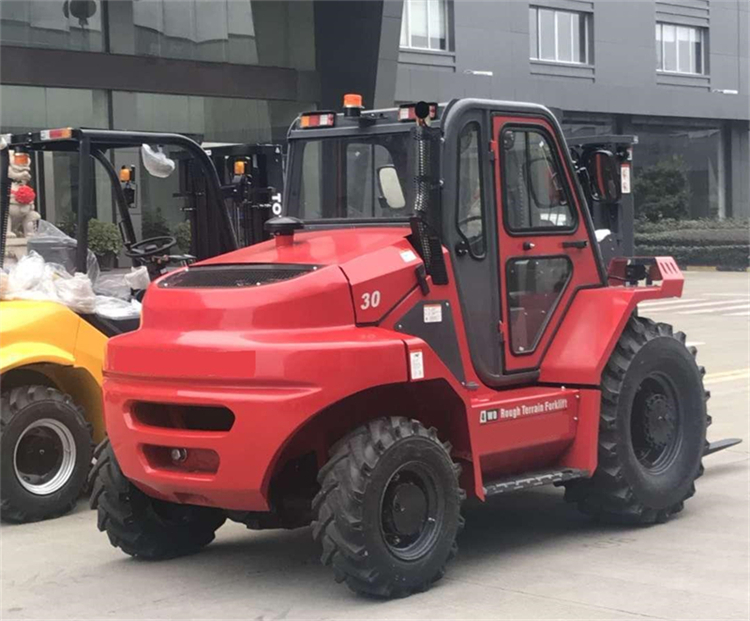

China Supplier 3 Ton Diesel Rough Terrain Forklift On Sale

Date: 2023-07-25 View:

 China 4 Wheel Drive Diesel Forklift Price 3 Ton All Terrain Forklift

Product Parameter
Model FD30RT4
Power Type Diesel
Rated Capacity 3000 kg
Load Centre 500 mm
Service weight 5700 kg
Front Tyre Size 405/70-20-14PR
Rear Tyre Size 10.0/75-15.3-12PR
Front Tread 1410 mm
Rear Tread 1484 mm
Wheelbasw 1990 mm
Fork Size 1220*125*45 mm

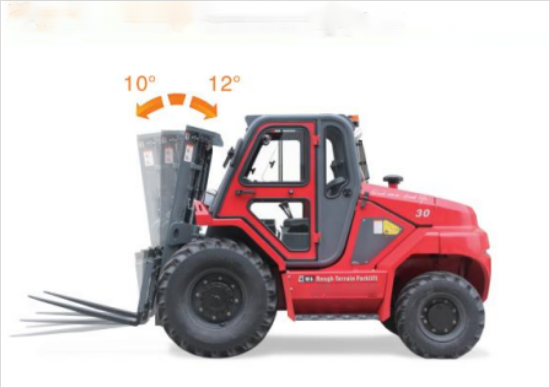

Mast Tilt Angle 10°/12°
Lift Height 3000 mm
Mast Lowered Height 2230 mm
Free Lift Height 125 mm
Mast Extended Height 4245 mm
Length to Face of Fork 3252 mm
Overall Width 1835 mm
Overhead Guard Height 2250 mm
Front Overhang 700 mm
Rear Overhang 607 mm
Turning Radius 4380 mm
Ground Clearamce 135 mm
Min.intersecting aisle 3040 mm
Min.right angle stacking aisle width 6350 mm
Max, Travel Speed 24/25 km/h
Lifting Speed 480/500 mm/s
Lowering Speed 380/400 mm/s
Max. Gradeability 30%
No.of Cylinder 4

Product Advantages

1: Reliable Lifting system

►Wide view mast prepare driver perfect view,
compare with normal mast it's 10% wider,
which provide more efficient and safety.

2: Excellent Lighting System

►The full machine equipped with LED lights,
low enwrgy consumption long service life and etc.

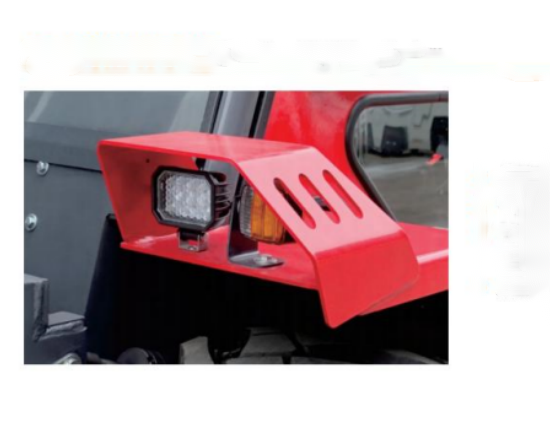

►Additional front and rear LED lights for options.

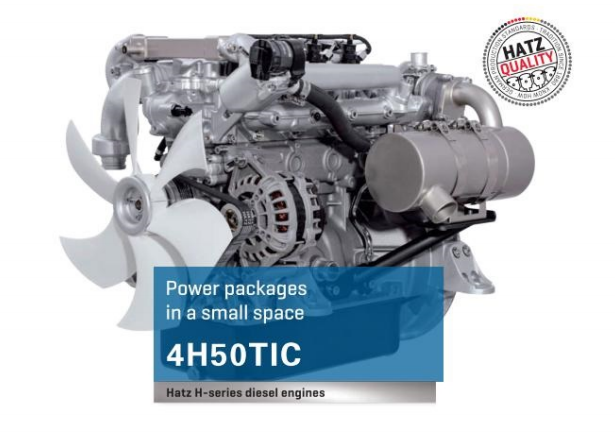

►Meet Euro stage 3B and USA EPA Tier 4 standard. The engine power up to 54.9kW.

4: Easy Maintenance

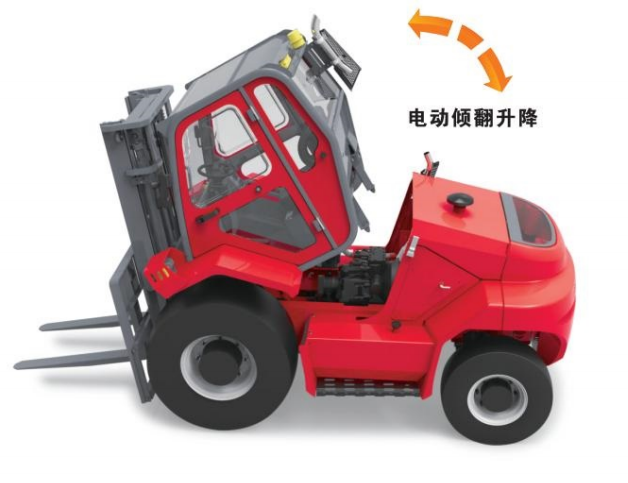

►The cabin has power rollover function.
When need maintenance, simply pressing the electronic swithch to tilt the cabin.

►Easy access to all the important components like electric control box,
air filter, battery and etc, and no need tools to assemnly or dismounting.
