FLIFT 2-3 Ton 4-Wheel Drive Rough Terrain Forklift

Date: 2023-06-01 View:

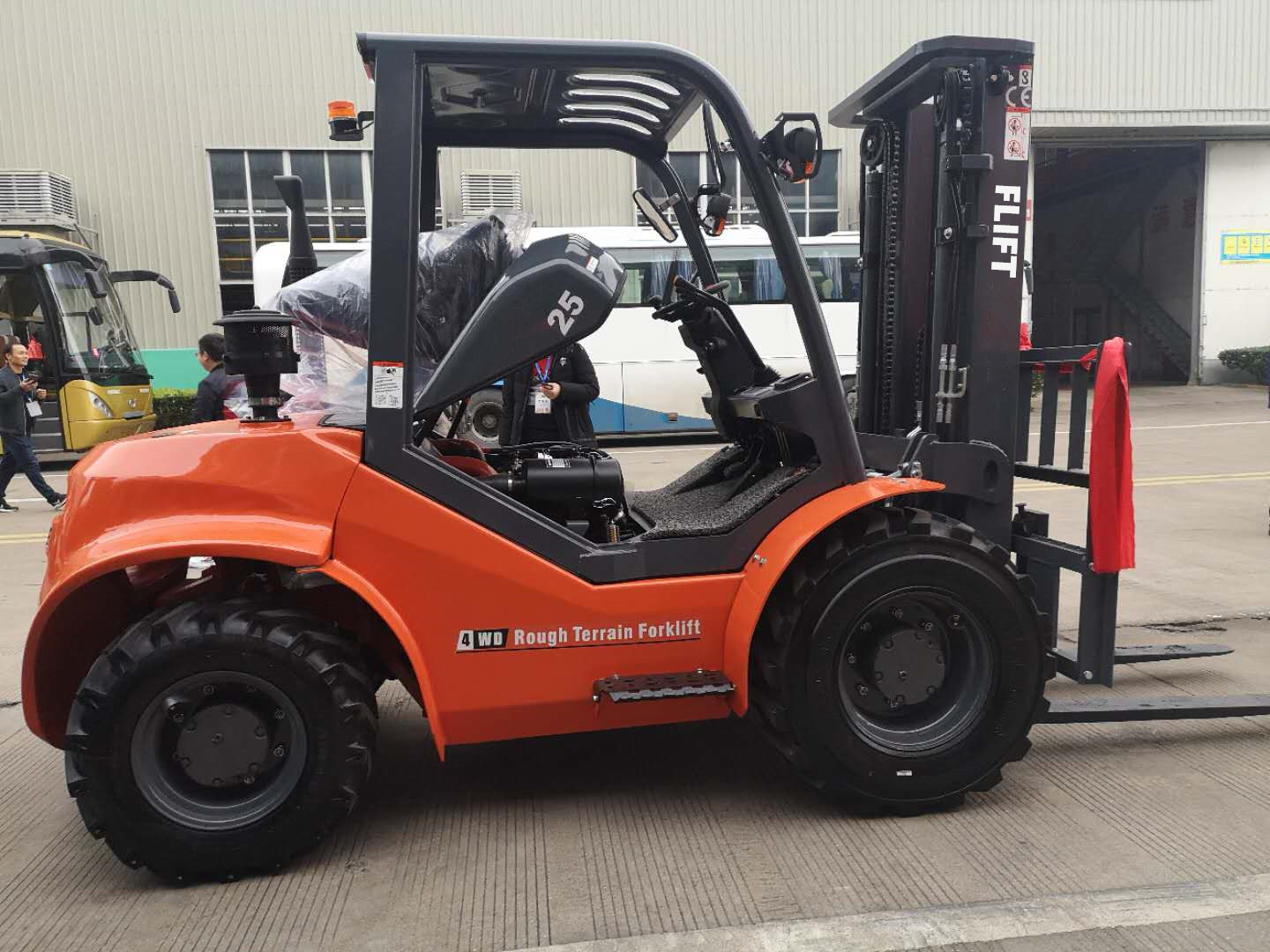

 2-3 Ton 4-Wheel Drive Rough Terrain Forklift

Product Parameter

Model FD20RTC4 FD25RTC4 FD30RTC4
Power Type Diesel Diesel Diesel
Rated Capacity 2000 kg 2500 kg 3000 kg
Load Centre 500 mm 500 mm 500 mm
Service Weight 4620 kg 4800 kg 5080 kg
Wheel number 2X/2X 2X/2X 2X/2X
Front Tyre Size 14-17.5-14PR 14-17.5-14PR 14-17.5-14PR
Rear Tyre Size 10.0/75-15.3-12PR 10.0/75-15.3-12PR 10.0/75-15.3-12PR
Front Tread 1217 mm 1217 mm 1217 mm
Rear Tread 1206 mm 1206 mm 1206 mm
Wheelbase 1920 mm 1920 mm 1920 mm
Length to Face of Fork 3110 mm 3110 mm 3110 mm
Overall Width 1560 mm 1560 mm 1560 mm
Overhead Guard Height 2260 mm 2260 mm 2260 mm
Front Overhang 580 mm 580 mm 580 mm
Rear Overhang 610 mm 610 mm 610 mm
Turning Radius 3200 mm 3200 mm 3200 mm
Ground Clearance 270 mm 270 mm 270 mm
Min.insecting aisle 2780 mm 2780 mm 2780 mm

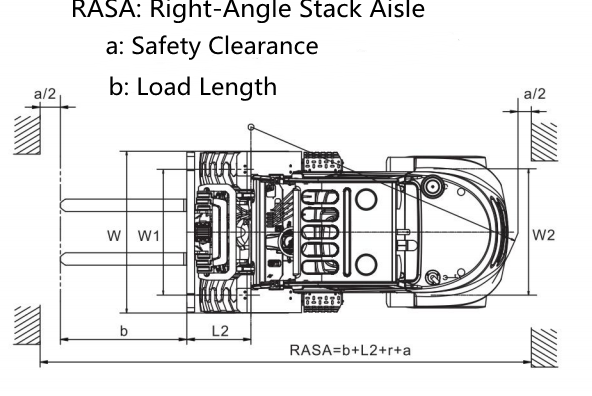

Min.right angle stacking aisle width 5200 mm 5200 mm 5200 mm
Lifting Speed  530/560 mm/s 530/560 mm/s 530/560 mm/s
Max. Gradeability 50% 50% 40%
Engine Rated torque 186/1600-1800 r.p.m 186/1600-1800 r.p.m 186/1600-1800 r.p.m
Engine Rated output 36.8/2500 r.p.m 36.8/2500 r.p.m 36.8/2500 r.p.m
Displacement 3.167 L 3.167 L 3.167 L
Fuel Tank Capacity 60 L 60 L 60 L
Battery 12V/80Ah 12V/80Ah 12V/80Ah
Transmission Type Hydraulic Hydraulic Hydraulic

Product Features

1: Equipped with full suspection overhead guard,
effectively reduce the vibration and noise from the road and the engine.

2: Standard equipped with vertical exhaust.
Special designed exhaust vent with antiwater drop function.

3: Large size deep pattern off-road vacuum tire
with excellent off-road capability and shock absorption performance.

4: 275 mm high ground clearance, excellent pass ability.

5: Anti-slip boarding pedal safe and reliable.

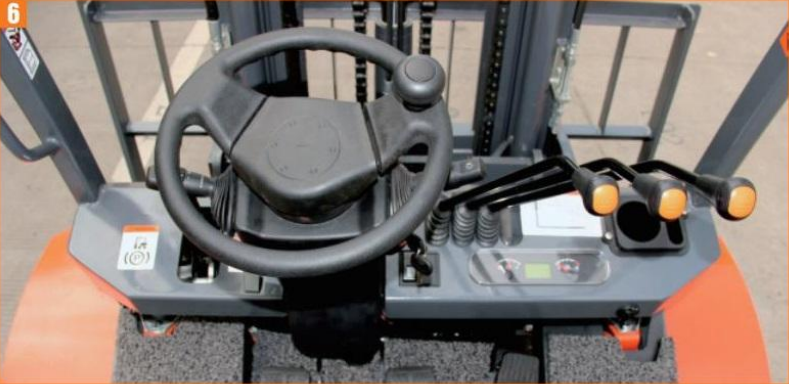

6: The vehicle adopts an electronic gearshift handle and knob-type control,
which makes the gear switching operation more convenient.
Two-wheel drive and four-wheel drive only need to be switched by electronic switch.
Combination dashboard, which can display vehicle data and diagostic information.
