Discover How Custom Colors Enhance Your 1600kg Double Scissor Reach Truck Experience

Date: 2025-05-23 View:

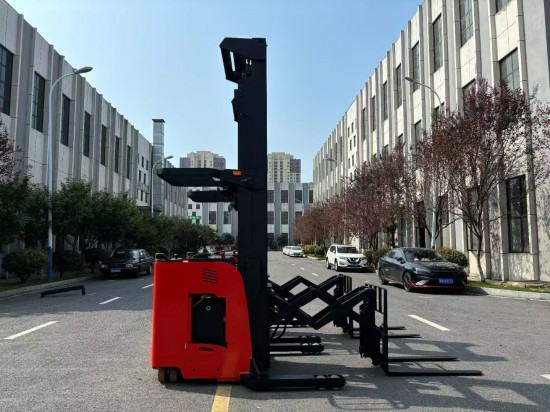

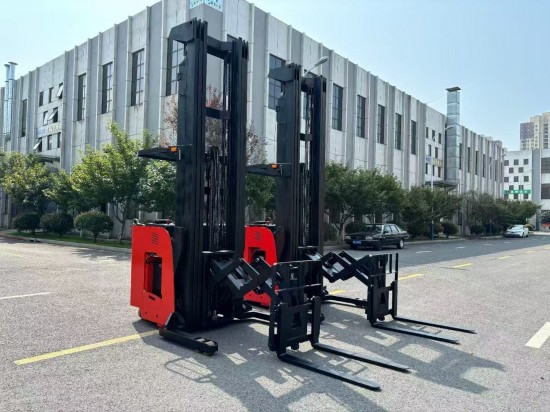

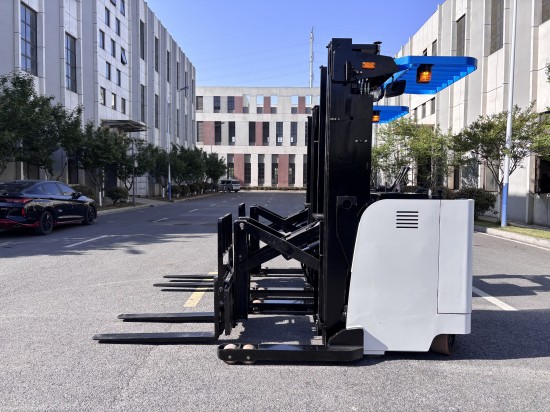

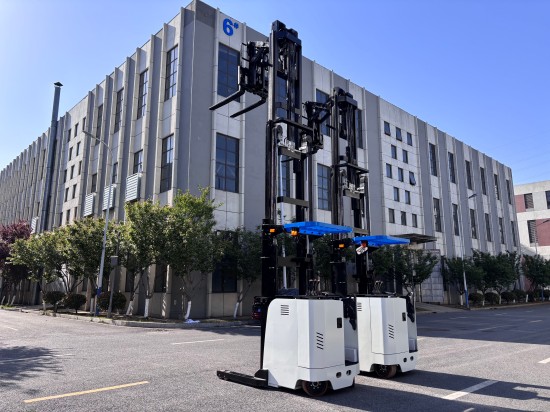

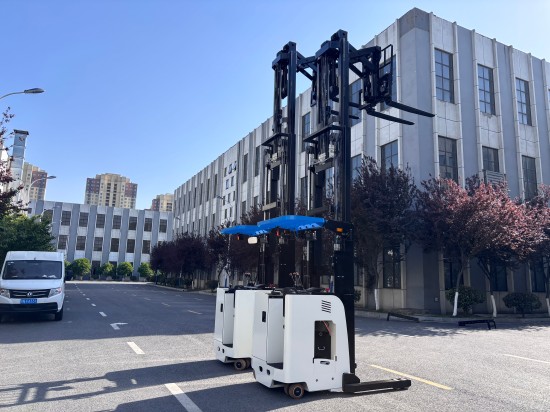

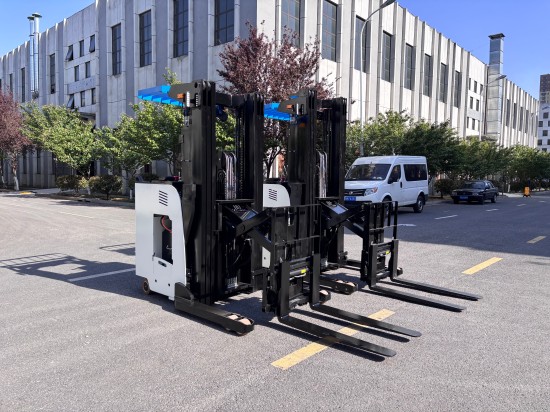

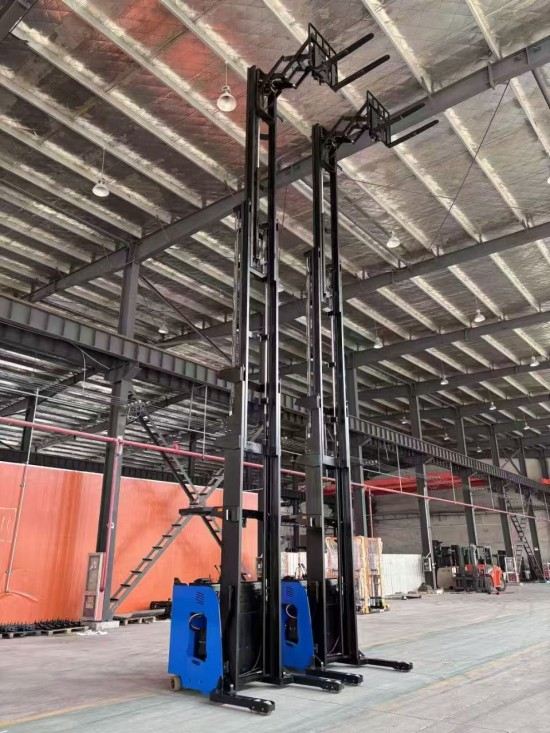

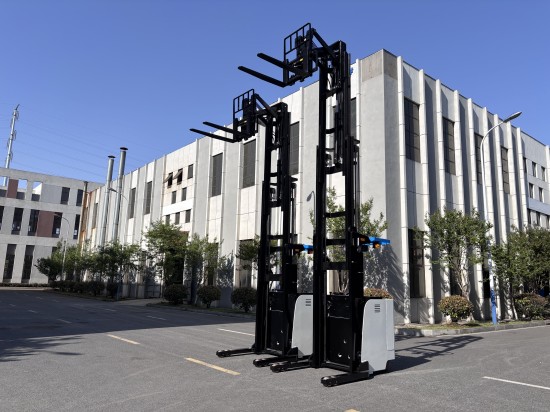

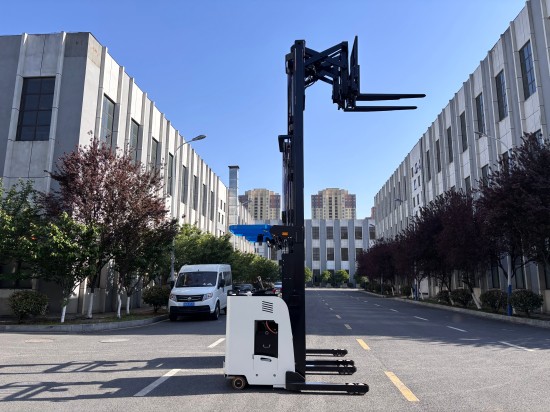

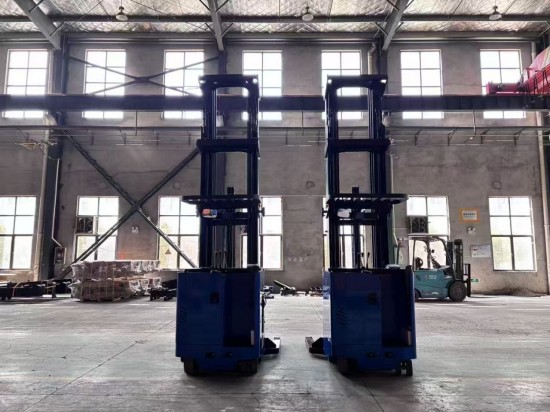

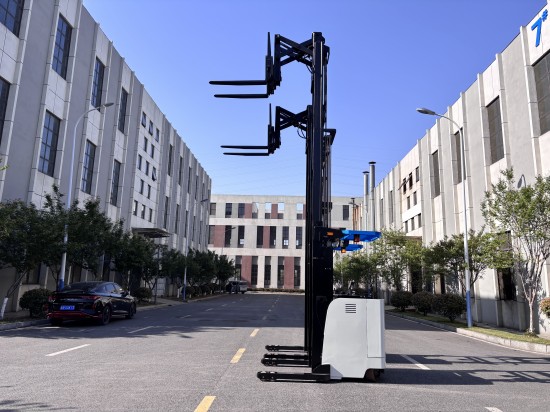

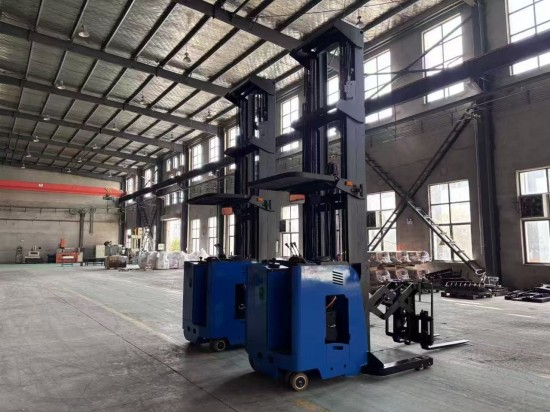

The 1.6T double scissor reach truck will be delivered to the American market again in a customized color.

"Double the Reach, Double the Style: New 1600kg Truck Hitting U.S. Market!"

 Revolutionizing Warehouses: Customized.

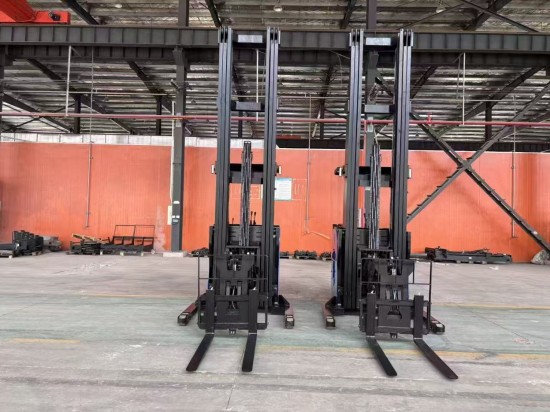

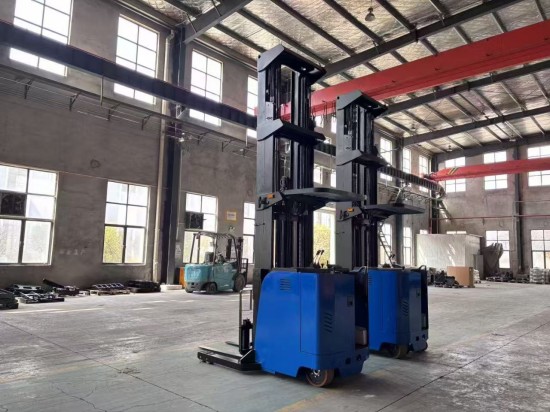

Last week, wecompletely finished the production ofd the double reach truck.

The 1.6T double scissor reach truck, Choose your custom colo,r and boost productivity withits cutting-edge design.
Here Are Our 1600kg Double Deep Reach Truck Main Parameter.

1600KG - Double Scissors Reach Truck

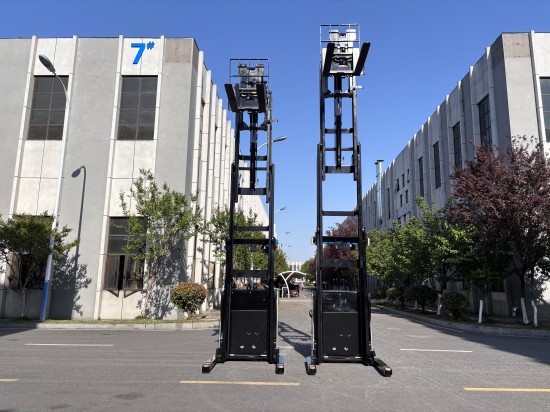

Rated lifting capacity: 1.6tonLifting Height: 6000mm, 3-stage mast.
Mast lowered height: 2800mm.
Fork Length: 1220mm*122mm*40mm(L*W*T)
Telescopic Scissor moves forward distance: 1080mm.
Mast Forward Tilt /Rear Tilt: 3/5° ,  Battery capacity: 48V/400AH, lead acid -battery. The iron lithium battery is optional.
American CURTIS control system, Electronic steering system. Equip with the customized Wireless camera and monitor device.





What is a Double Scissor Reach Truck?
A double scissor reach truck, also known as a double-deep reach truck is a type of electric narrow aisle forklift specially
designed to handle pallets stored in double-deep racking systems.
It uses a scissor-like pantograph mechanism that allows the forks to extend forward,
enabling the operator to place or retrieve loads from the second row of racking, without repositioning the truck.

Are Double Scissor Reach Trucks Electric or Diesel-Powered?
Double-scissor reach trucks are almost always electric-powered.
These forklifts are specifically designed for indoor warehouse operations, where zero emissions, low noise, and precise maneuverability are essential.
Diesel or LPG engines are not used in this type of reach truck due to their exhaust emissions, noise, and larger turning radius.

Why Are They Electric?
Zero Emissions: Perfect for enclosed spaces like warehouses, cold storage, and cleanrooms.
Compact Design: Electric motors allow for a smaller chassis, enabling tight turning in narrow aisles.
Lower Noise: Essential for indoor environments where noise reduction improves working conditions.
Energy Efficiency: Modern lithium-ion batteries offer long operating hours and fast charging.

Battery Types Commonly Used:
Lithium-ion batteries: Longer life, fast charging, maintenance-free.
Lead-acid batteries: More affordable upfront but require regular maintenance and longer charging times.





How does a double scissor reach truck work?
"Double Scissor Reach Trucks: The Secret Behind Their Incredible Lifting Power Explained!"
Discover how a double scissor reach truck works! Uncover its mechanics, benefits, and applications in warehouse operations. Learn more now!

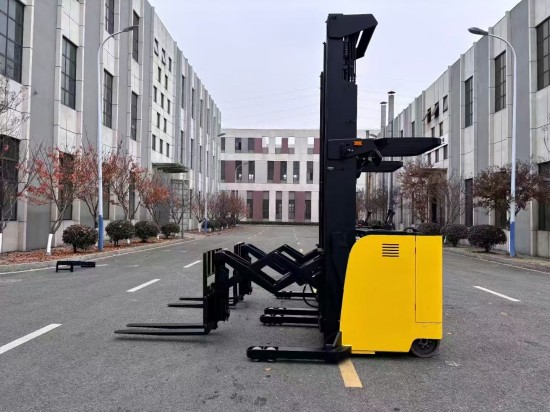

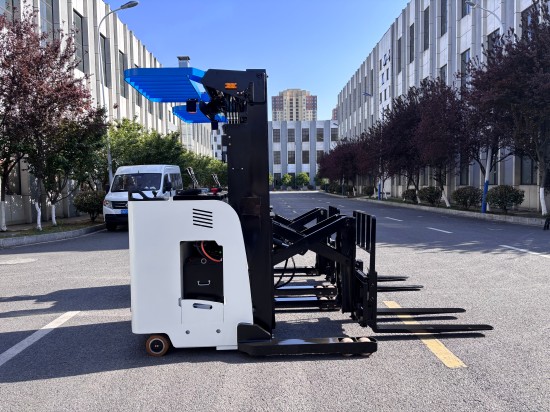

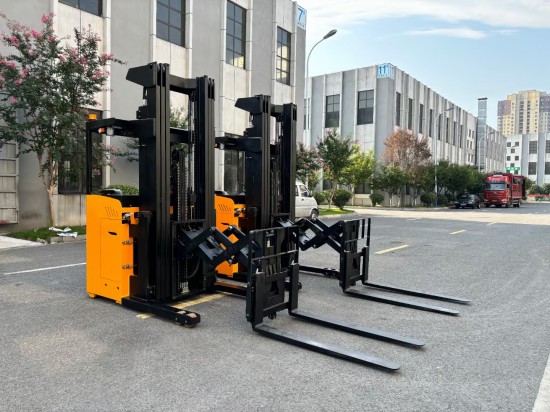

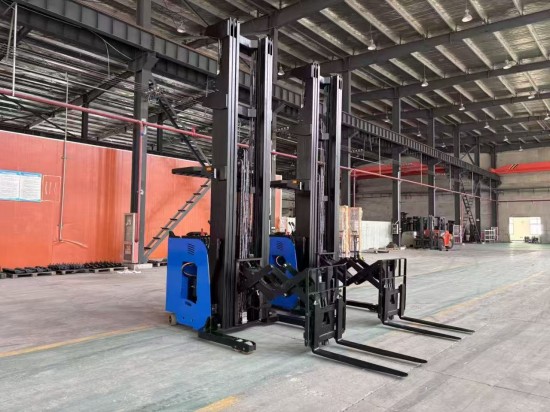

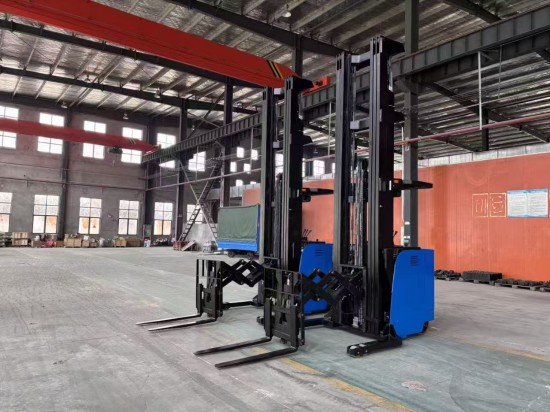

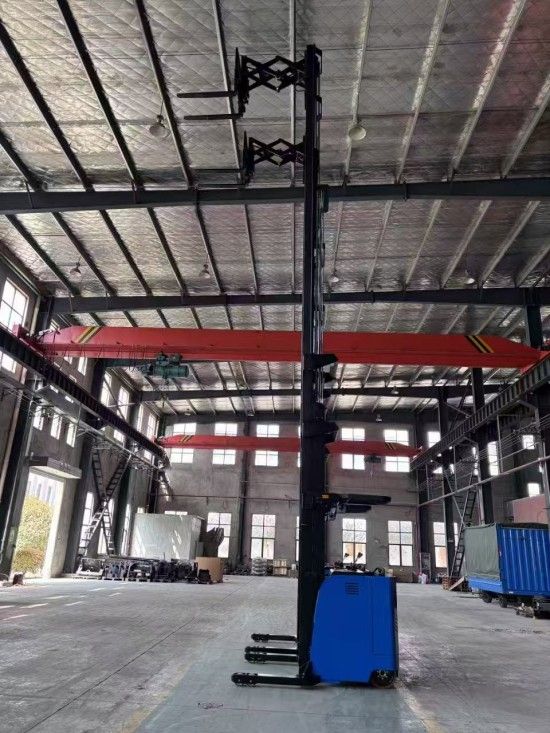

The key feature of this machine is its double pantograph scissor arm.
When activated, the arm extends the carriage and forks outward—usually twice the depth of a normal reach truck—so it can:

Reach pallets in the second row; Avoid the need for wide aisles;
Maximize storage density in warehouses.
What industries use double-scissor-reach trucks?
Warehouses with double-deep pallet racking,
Cold storage and high-density facilities.
E-commerce fulfillment centers, Automotive parts, and electronics warehouses.



Key Benefits of the Double Reach Truck
Space-saving: Requires less aisle space compared to counterbalance forklifts.
Increased storage density: Access second-deep racking without compromising stability.
Electric-powered: Environmentally friendly and ideal for indoor use.
Cost-effective: Reduces the need for extra aisles or more expensive racking solutions.

Who Needs the double deep-reach truck?
When should you use a double-deep reach truck?
If your facility is running out of floor space or wants to increase pallet positions without expanding the warehouse,
a double-scissor reach truck is a powerful and efficient solution.

What is the maximum reach of a double scissor reach truck?
For example our FLIFT double deep reach truck from the 1.5ton-2.5Ton series, the maximum reach distance is 1080mm. (So-called scissor reach distance)
Usually the reach truck scissor reach distance is fixed, but if you have the reach distance more longer,
we could customize this as per your requirements, need to be negociated with our technicians.







What is the turning radius of a double-scissor reach truck?

As usual, the double scissor reaches the truck turning radius around 1900mm.
Our seated type 1.6ton FLIFT double reach truck turning radius is 1950mm.
The side standing type 1.6ton FLIFT double reach truck turning radius is 1920mm.
2.0ton FLIFT double reach truck turning radius around 1985mm.

The smaller turning radius, represents that the warehouse can Reduce the width of the main Aisle, increase the storage efficiency.

How high can a double scissor reach a truck lift?
About how high can the double-reach truck lift? Another question must be asked, namely which type of the mast used for the double reach truck?
The two factors are extremely closely related.

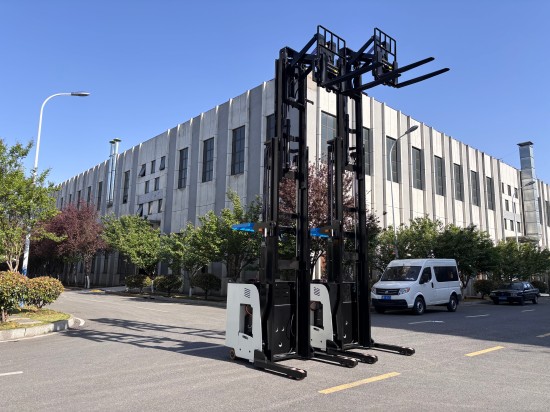

In general, our double scissor series is all equipped with the 3-stage full free mast which owns the more lower height than the common 2-stage mast.
For the lifting height for the double reach truck, we usually equip with the 3-stage 4500mm mast with the 1070mm or 1220mm fork on this double reach truck.
This is the regular lifting height.

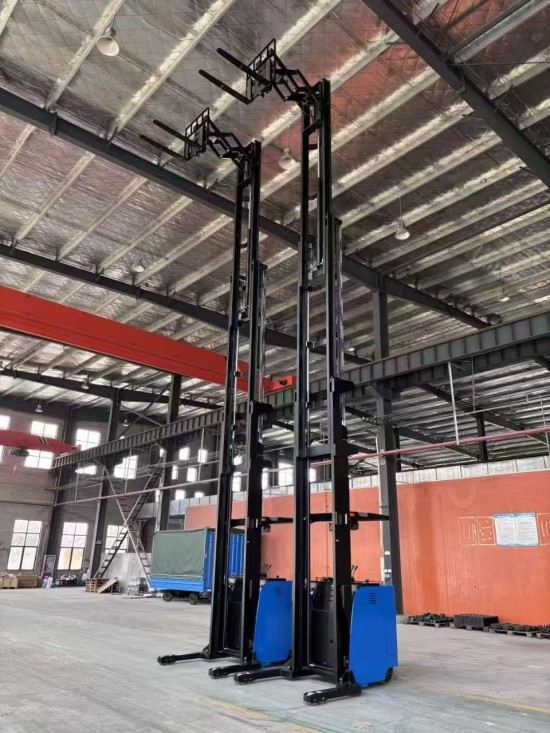

The maximum lifting height could be able to 10m for the double scissor forklift,
the prerequisite is that we have to adopt the imported "German Krupp Mast". Fully guarantee the safety.



Can You Customize a Scissor Reach Truck with a Carton Clamp?
Yes, scissor-reach trucks can be customized with a carton clamp attachment.
A carton clamp is ideal for handling large, non-palletized loads such as appliances, electronics,
or packaged consumer goods—especially in retail warehouses, logistics centers, and furniture distribution.

Why Use a Carton Clamp with a Scissor Reach Truck?
Non-palletized load handling: Move goods without needing a pallet.
Damage prevention: Pressure-sensitive clamps reduce crushing.
Efficiency: Speeds up material handling in double-deep racks.
Customization Capabilities Include:
Clamp opening range adjustments. Rotating or fixed clamp options
Load sensing pressure controls, Fork-mounted or carriage-mounted types
Clamp arms with rubber pads for delicate loads.
If you're a warehouse operator handling boxes, white goods, or soft packaging,
a scissor-reach truck with a carton clamp offers double-deep access plus non-palletized handling power.


Where Can I Find Reliable Double Scissor Reach Truck Manufacturers in China?
China is one of the top global hubs for forklift manufacturing, with many reputable companies offering high-quality,
customizable double-scissor reach trucks. When selecting a manufacturer, consider these criteria:

Key Factors to Evaluate:
Experience in forklift R&D and manufacturing (10+ years is ideal),
CE, ISO, and SGS certifications.The in-house engineering team for OEM/ODM customization.
Proven export history to markets like the USA, Europe, and Southeast Asia.After-sales support and parts availability.

FLIFT, for example, is a China-based forklift manufacturer offering full customization for electric scissor-reach trucks,
including attachments like carton clamps.
We serve clients across Asia, and Europe, especially the Americas and Canada.


How does a double scissor reach truck work?
"Double Scissor Reach Trucks: The Secret Behind Their Incredible Lifting Power Explained!"
Discover how a double scissor reach truck works!
Uncover its mechanics, benefits, and applications in warehouse operations. Learn more now!




Double deep reach truck specifications
文件类型: .pdf 1600kg-double-deep-reach-truck-specifications.pdf (716KB)
