FLIFT Brand Battery forklfit FB30 Rated Capacity 3ton lifting Height 3m 4.5m 6m

Date: 2022-08-31 View:

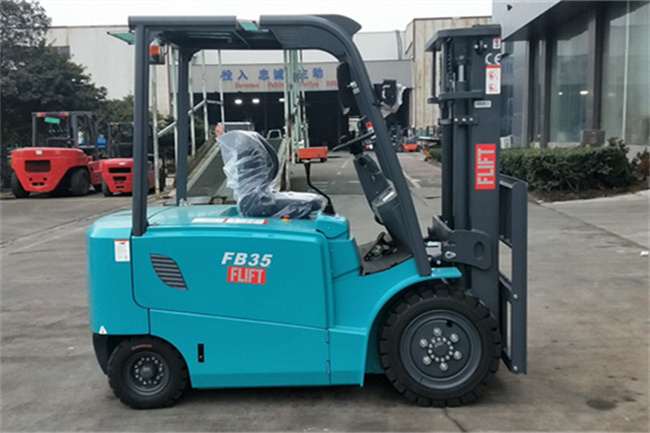

Chinese Brand FB30 Rated Capacity 3ton Battery Forklift lifting Height 3m 4.5m 6m

High Quality Electrical Components
Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking,fault self-diagnosis and other functions.

Reliable Steering System
Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.

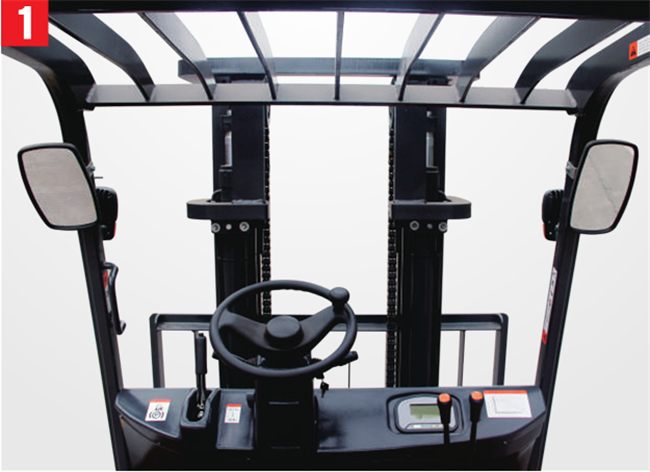

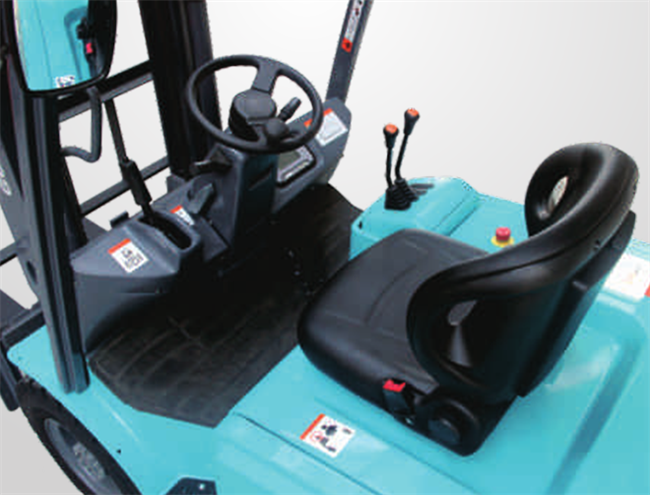

Comfortable Operating Space
Ergonomic full-scale operation space layout optimization, which offers operator excellent,comfortable and convenient operating experience.

Efficient Drive System
Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.

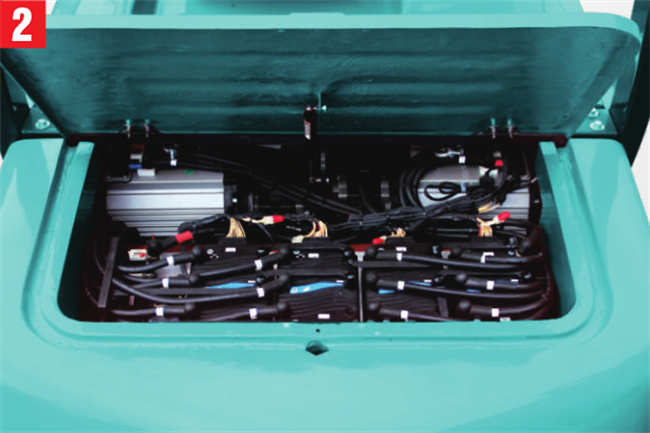

Battery Side-take Function
Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.


Product Parameters
Model
FB30
Power Type
Electric
Rated Capacity kg 3000
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 1070*125*45
Mast Tilt Angle Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 480
Tread mm 1000/980
Ground Clearance (Bottom of mast) mm 120
Fork Spread mm 250/1100
Length to face of fork(Without fork) mm 2610
Overall Width mm 1230
Mast Lowered Height mm 2115
Mast Extended Height(With backrest) mm 4180

Certification


The Video of Product
