3-3.5 Ton Lithium Battery Counter Balanced Forklift

Date: 2023-06-25 View:

 FLIFT Brand 3-3.5 Ton Lithium Battery Counter Balanced Forklift

Product Parameter

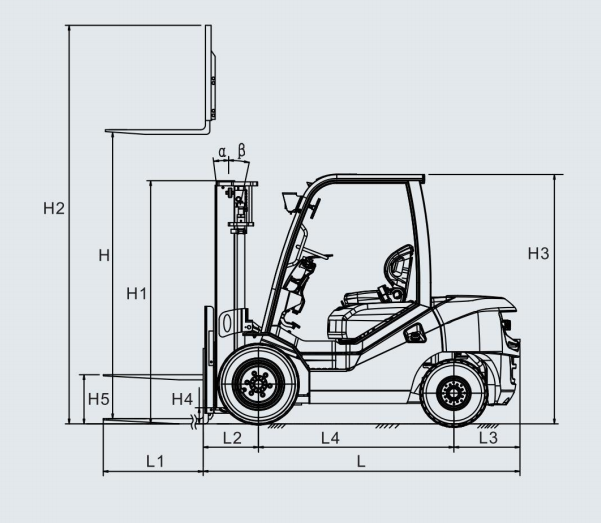

 Model  FB30Li-A  FB35Li-A
 Power Type  Electric  Electric
 Rated Capacity  3000 kg  3500 kg
 Load Centre  500 mm  500 mm
 Service Weight  4320 kg  4650 kg
 Tyre Type( Front/ Rear)  Aire Tyres  Aire Tyres
 Wheel number  2X/2  2X/2
 Tyre Size(Front)  28*9-15-14PR  28*9-15-14PR
 Tyre Size (Rear)  6.50-10-10PPR  6.50-10-10PR
 Front Tread  1000 mm  1000 mm
 Rear Tread  970 mm  970 mm
 Wheel base  1700 mm  1700 mm
 Fork Size  1070*125*45 mm  1070*125*50 mm
 Mast Tilt Angle  6°/12°  6°/12°
 Lift Height  3000 mm  3000 mm
 Mast Lowered Height  2115 mm  2150 mm
 Free Lift Height  125 mm  125 mm
 Mast Extended Height  4180 mm  4180 mm
 Backrest Height  1150 mm  1150 mm
 Fork Spread   250-1100 mm  250-1100 mm
 Length to Face of Fork  2740 mm  2770 mm
 Overall Width  1225 mm  1225 mm
 Overhead Guard Height  2150 mm  2150 mm
 Distance From Roof to Seat  950 mm  950 mm
 Front Overhang  481 mm  506 mm
 Rear Overhang  590 mm  590 mm
 Turning Radius  2460 mm  2460 mm
 Ground Clearance  140 mm  140 mm
 Min.intersecting aisle width  2530 mm  2530 mm

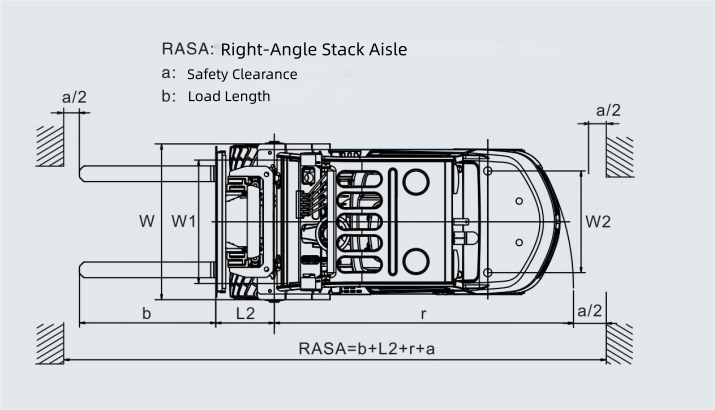

 Min. right angle stacking aisle width  4155 mm  4155 mm
 Max. Trave Speed(Full load/ No load)  13/14 km/h  13/14 km/h
 Lifting Speed(Full load/ No load)  380/400 mm/s  360/380 mm/s
 Lowering Speed( Full load/ No load)  350/400 mm/s  350/400 mm/s
 Max. Gradeability(Full load)  20%  20%
 Battery(Voltage/ Capacity)  153.6V/165Ah  153.6V165 Ah
 Compartment Size  620*650*605 mm  620*650*605 mm
 Drive Motor  18 kW  18 kW
 Lift Motor  20 kW  20 kW
 Driving Type  AC  AC
 Operating Pressure  17.5 Mpa  17.5 Mpa


Product Features

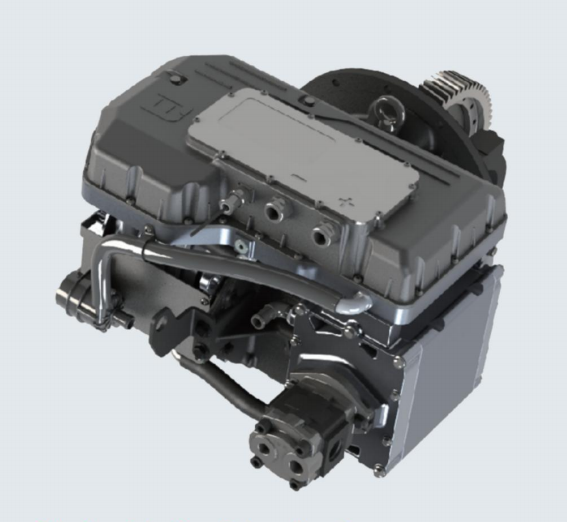

1:Drive and Hydraulic Integrated Power System

►High-efficiency permanent magnet synchronous motor

Compared with a three-phase asynchronous motor with the same performance,
the high-efficiency permanent magnet synchronous motor is lighter,
and the overall efficiency of the whole range is increased by 15%.

►Vehicle upper control system

The vehicle controller, which coordinates the walking motor controller,
oil pump motor controller, BMS, instrumentation and related body accessories.
The controller monitors real-time safety functions such as steering deceleration,
seat sensing, and neutral safety switch.

►IP67 protection level

Electric vehicle-level protection, fully meets the requirements of IP67.
The operating conditions are exactly the same as those of internal combustion forklifts,
and there are no restrictions on the operating environment.

►System-level high-voltage safety protection

Innovative system-level high-voltage safety protection scheme.
During the use of the high-voltage system. the safety of the system is ensured through can detection,
withstand voltage detection high temperature detection, and triple insulation detection.

►153.6V high voltage system

The high-voltage solution reduces energy consumption and improves endurance by increasing voltage,
increasing motor power, reducing motor and controller current, and reducing current thermal effects.

►Liquid cooling technolog

 The integrated liquid cooling system completely prevents the motor or electric control
from shutting down due to overheating, and it can work normally at 50°C.

2:Dual Mode Driving System

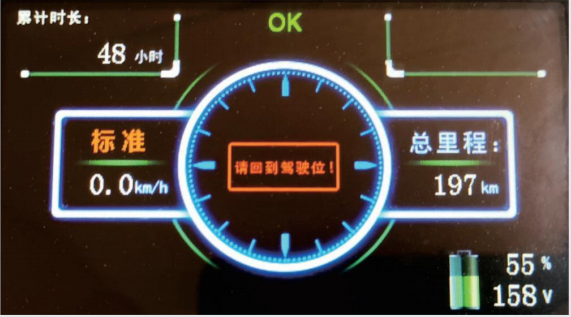

►Standard mode

 In the standard driving mode,
the power output setting is automatically adjusted to the best energy-saving state.
The driving speed of the forklift is up to 15km/h,
and the lifting speed is 380 mm/s with full load and 400 mm/s without load.

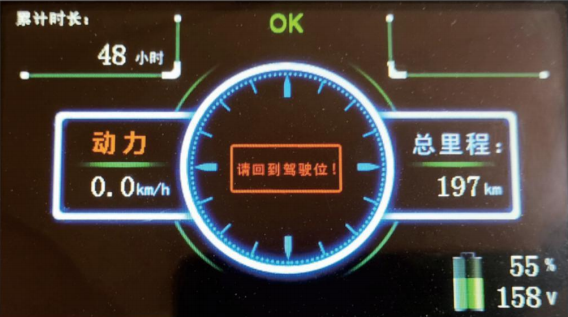

►Power mode

 In order to improve work efficiency,
it can be switched to power driving mode, the power response is more rapid,
and the handling and lifting speed are more obvious.
The forklift can travel at a maximum speed of 20 km/h,
with a lifting speed of 480 mm/s at full load and 520 mm/s at no load.
This speed is comparable to the performance of an internal combustion counterbalanced forklift.

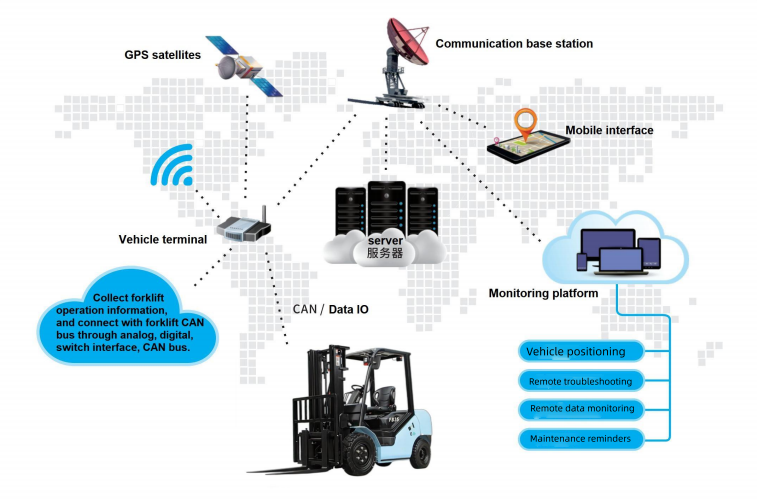

3:Cloud Intelligence Forklift Management System

 The cloud intelligent forklift management system
is the application of advanced internet of things and Internet technologies,
combined with manual forklifts to realize vehicle data colection,
vehicle alarms, vehicle remote control and diagnosis, vehicle scheduling,
logistics tracking  and other functions, helping users to carry out vehicle management,
intelligent scheduling and intelligence logistics management and control,
to improve the level of enterprise/ equipment management and logistics management,
the forklift cloud intelligent terminal can seamlessly cannect to the cloud intelligent forklift management system.
