High Efficient 3.5 Ton Lithium Battery Forklift On Sale

Date: 2023-05-15 View:

 Aprrove 3.5 Ton Lithium Battery Forklift With High Efficient For Sale

Product Features

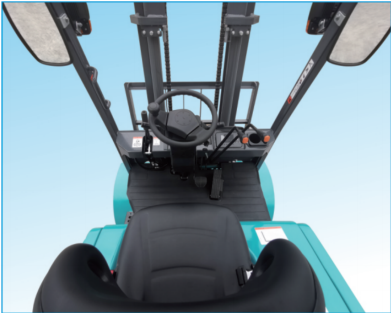

Comfortable Operating Space:
Ergonomic full-scale operation space layout optimization, which offers operator excellent,
comfortable and convenient operating experience.

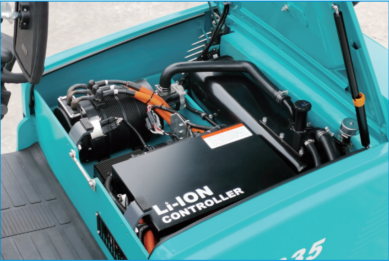

High Quality Electrical Components:
Original imported world famous brand controller. After professional adjustment,
walking and upgrade control is precision and efficiency, excellent performance.
The forklift with regenerative brakig, ramp braking, fault self-diagnosis and other functions.

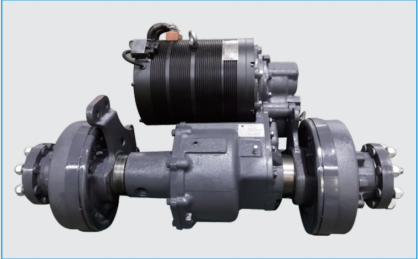

Efficient Drive System:
Advanced H-type remote drive unit, compact structure, lower gravity center,
more reasonable layout, more stable driving.

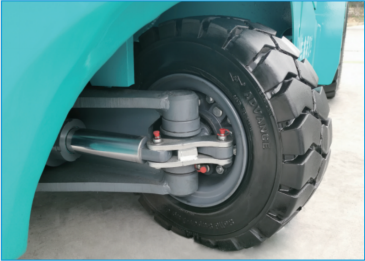

Flexible Steering System:
The dynamic load sensing priority steering system ia adopted to
make the steering response faster and the driving more stable.

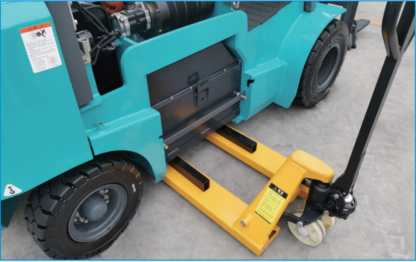

Battery Side-take Function:
With an open structure at the bottom of the frame, the lithium battery replacement,
maintenance is very fast and convenient.

Fast Charging Port:

The charging port is placed on the side, just open the charging port cover to charge.

Product Parameter
Model FB35Li-C4
Power Type Lithium Electric
Rated Capacity 3500 kg
Load Centre 500 mm
Service Weight 5210 kg
Front Tyre Size 23*10-12-20PR
Rear Tyre Size 200/50-10
Front Tread 1081 mm
Rear Tread 1008 mm
Wheelbase 1650 mm
Fork Size 1070*125*50
Lift Height 3000 mm
Mast Lowered Height 2130 mm
Free Lift Height 90 mm
Mast Extended Height 4180 mm
Length to Face of Fork 2545 mm
Overall Width 1330 mm
Overhead Guard Height 2200 mm
Distance From Roof to Seat 1050 mm
Front Overhang 495 mm
Rear Overhang 400 mm
Turning Radius(outside) 2315 mm
Ground Clearance( Bottom of mast) 120 mm
Max. Travel Speed(Full Load/No Load) 15/17
Lifting Speed(Full load/No load) 320/360
Max. Gradeability(Full Load) 370/480
Battery(Voltage/ Capacity) 15%
Battery 76.8V/420Ah
Controller Type AC drive motor
Operating Pressure 18 Mpa
