Supply 12 Ton Electric Forklift With China Supplier For Sale

Date: 2023-05-15 View:

FLIFT Brand 12 Ton Electric Forklift With China Supplier On Sale

Product Parameter
Model FB120
Power Type Electric
Rated Capacity 12000 kg
Load Centre 600 mm
Lift Height 3000 mm (As demand)
Fork Size 1520*180*100 mm
Mast Tilt Angle 6°/10°
Front Overhang 750 mm
Tread 1650/1700 mm
Ground Clearance 210 mm
Fork Spread(Min./Max) 515/2055
Length to face of fork 4480 mm
Overall Width 2270 mm
Mast Lowered Height 2810 mm
Mast Extended Height 4550 mm
Overhead Guard Height 2650 mm
Turning Radius 3850 mm
Min. insecting aisle 3200 mm
Travel Speed( Empty outside) 15 km/h
Lifting Speed( Full Load) 220 mm/s
Max. Gradeability 10%
Front Tire (Dual front tires) 9.00-20
Rear Tire 8.25-20
Wheel Base 2850 mm
Service Weight 16910 kg
Drive Motor 2*20 kw
Lift Motor 2*28 kw
Lead Acid Battery capacity 96V/1250 Ah
Controller Manufacturer CURTIS
Controller Type AC
Operating Pressure For Attachment 17.5 Mpa

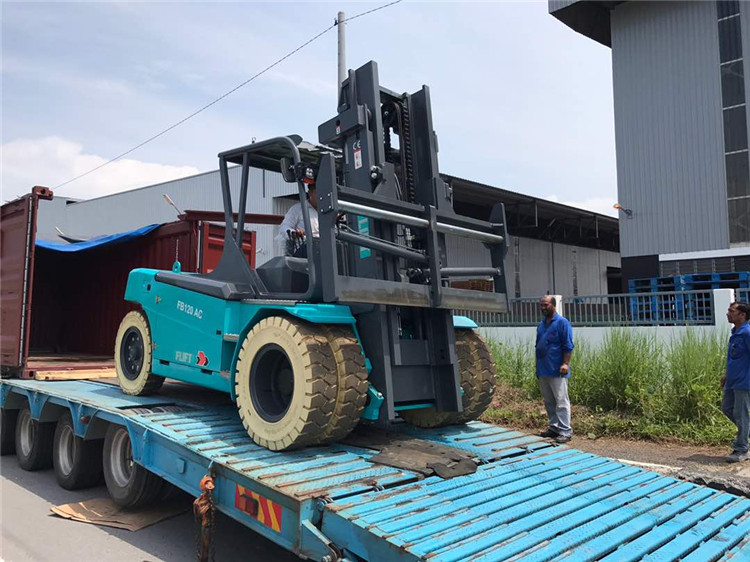

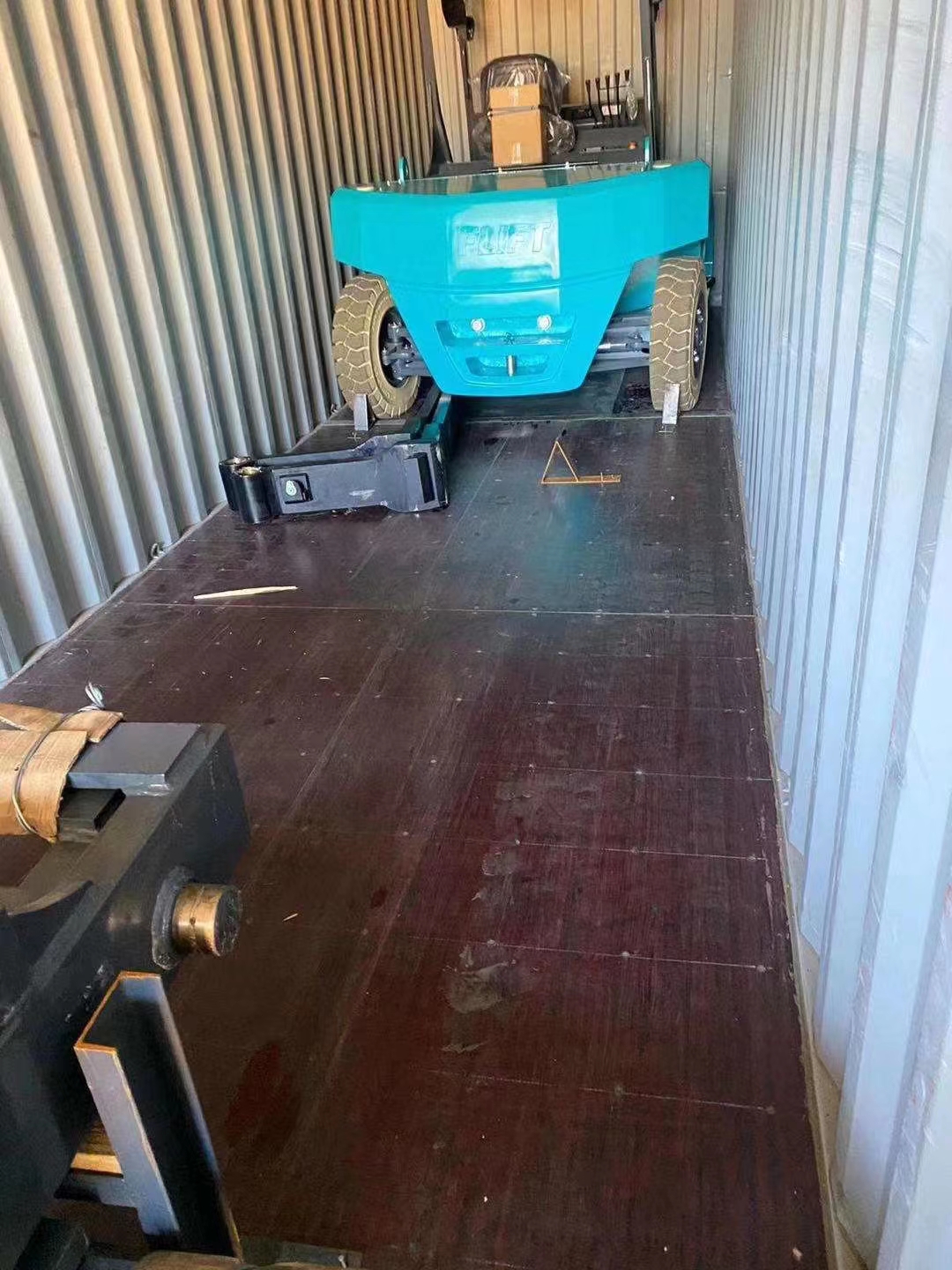

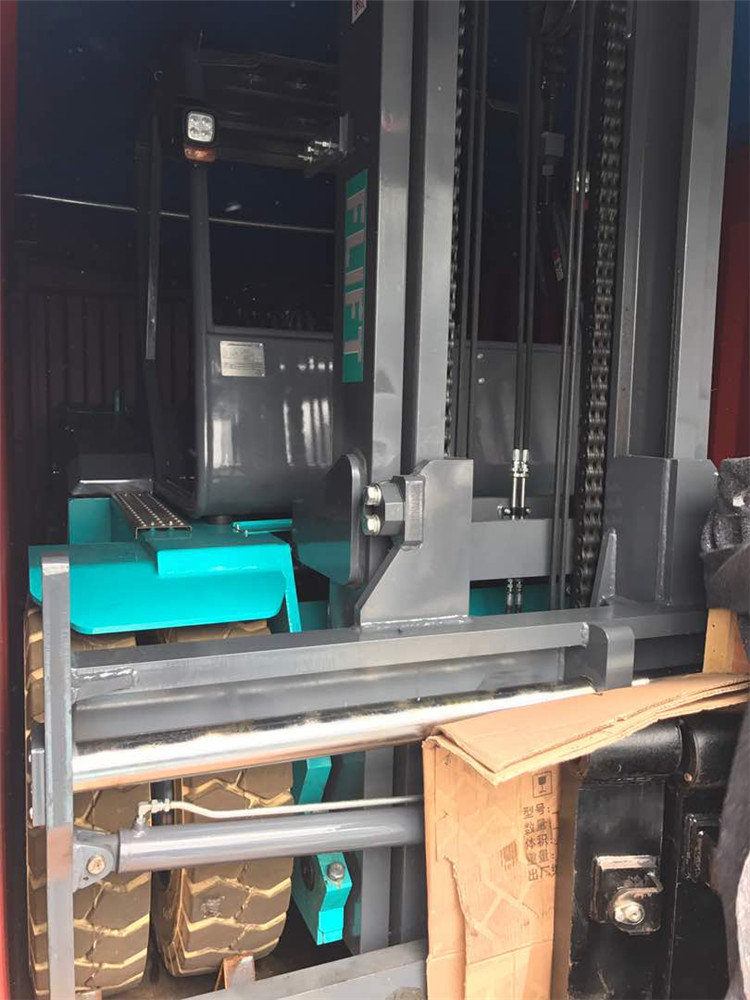

Product Transportation
