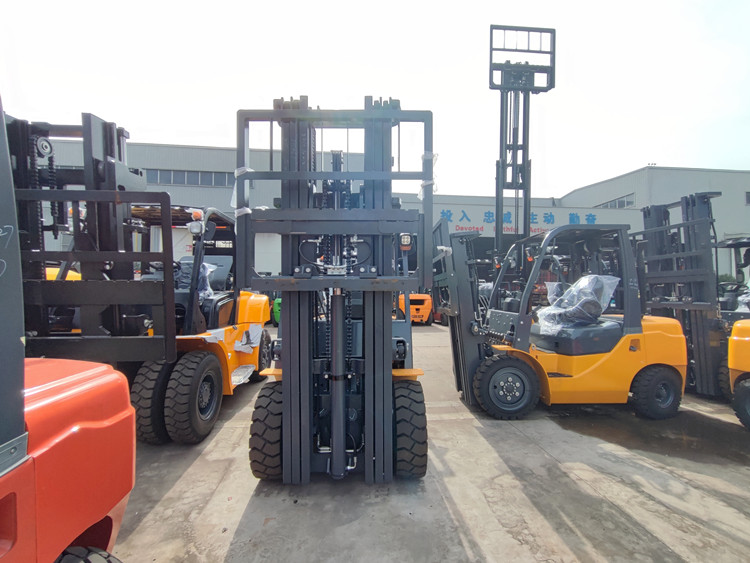

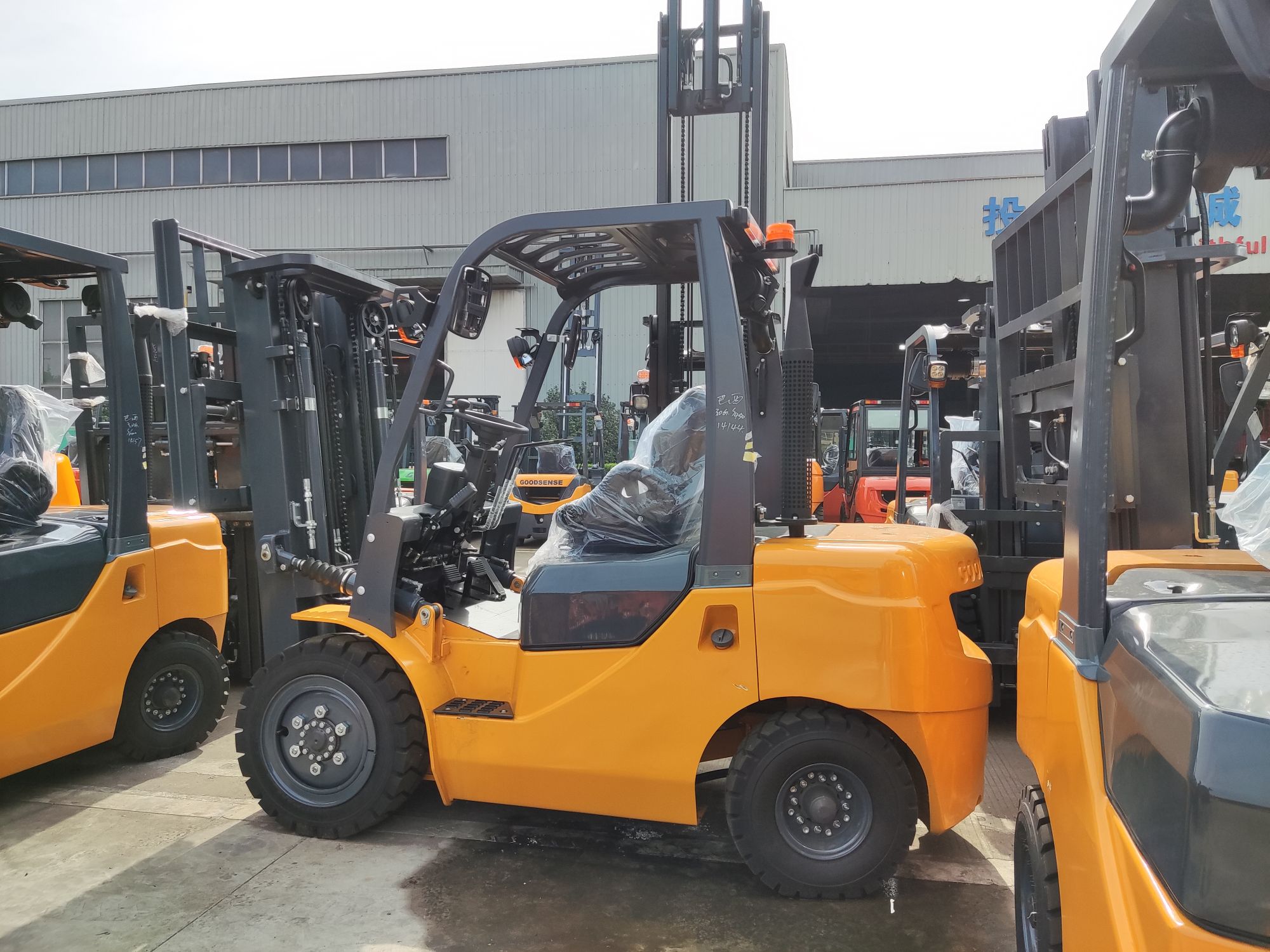

Chinese Supplier 3.5 Ton Diesel Forklift With Japanese Engine
Date: 2023-07-19 View:
Approve 3.5 Ton Diesel Forklift With Japanese Engine
Product Parameter
| Model | FD35 |
| Power Type | Diesel |
| Rated Capacity | 3500 kg |
| Load Centre | 500 mm |
| Lift Height | 3000 mm |
| Fork Size | 1070*125*50 mm |
| Mast Tilt Angle | 6°/12° |
| Front Overhang | 480 mm |
| Ground Clearance | 135 mm |
| Length to face of fork | 2770 mm |
| Overall width | 1225 mm |
| Mast lowered height | 2175 mm |
| Mast extended height | 4160 mm |
| Overhead guard height | 2090 mm |
| Turning Radius | 2480 mm |
| Min. insecting aisle | 2530 mm |
| Travel speed( Empty outside) | 19 km/h |
| Lifting Speed( Full load) | 520 mm/s |
| Max. Gradeability | 20% |
| Front Tire | 28*9-15-12PR |
| Rear Tire | 6.50-10-10PR |
| Wheel Base | 1700 mm |
| Service Weight | 4500 kg |
| Engine Model | 4JG2PE-01 |
| Engine Manufacture | ISUZU |
| Engine Rated output/r.p.m | 46/2450 kw |
| Engine Rated torque/ r.p.m | 186.3/1600-1800 N.m |
| Engine No.of Cylinder | 4 |
| Engine Bore*Stroke | 95.4*107 mm |
| Engine Displacement | 3059 cc |
| Engine Fuel tank capacity | 60 L |
| Battery(Voltage/Capacity) | 12v/80Ah |
| Transmission Type | Hydraulic |
| Operating Pressure for Attachment | 17.5 Mpa |

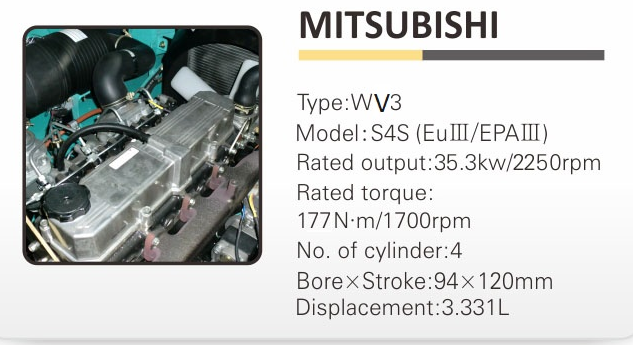

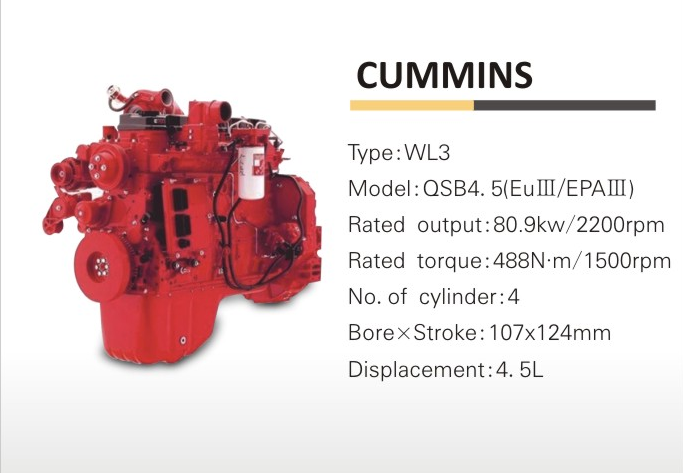

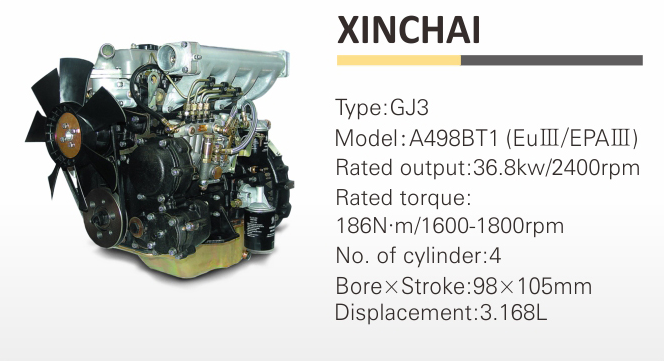

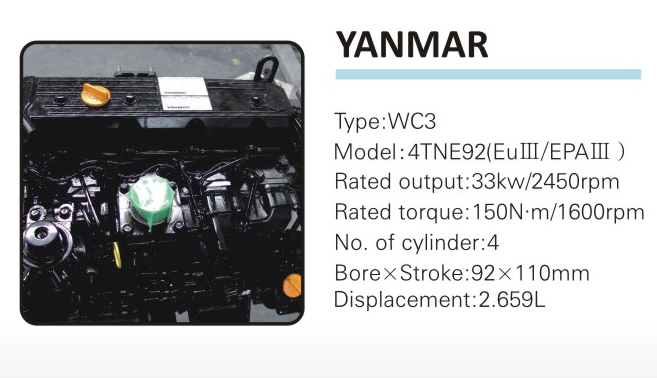

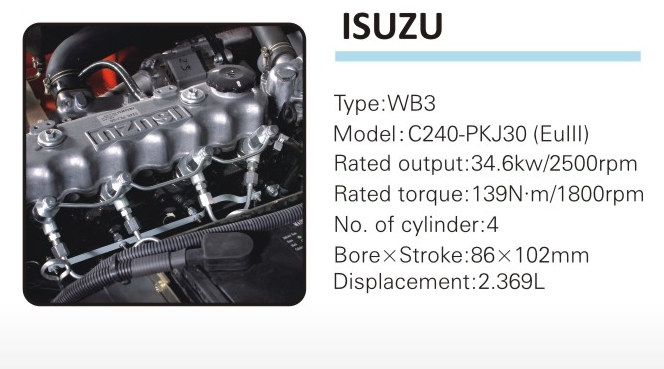

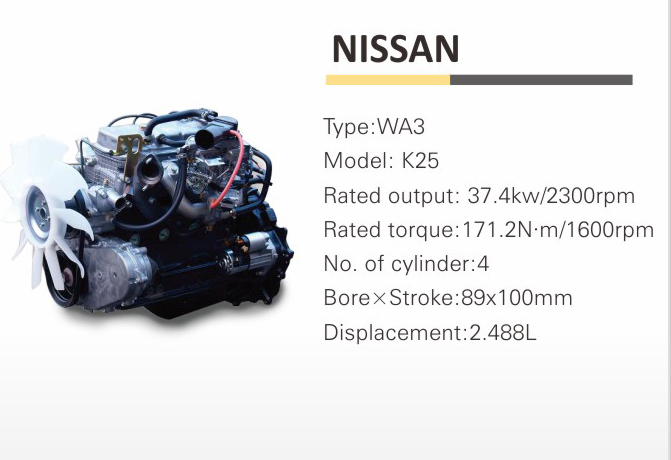

Engine Brand
We can provide different brands of engines,
customers can choose the engine brand that suit them according to their needs.
