Factory Professional 1.5 Ton 4-wheel Electric Forklift FB15 model

Date: 2023-07-20 View:

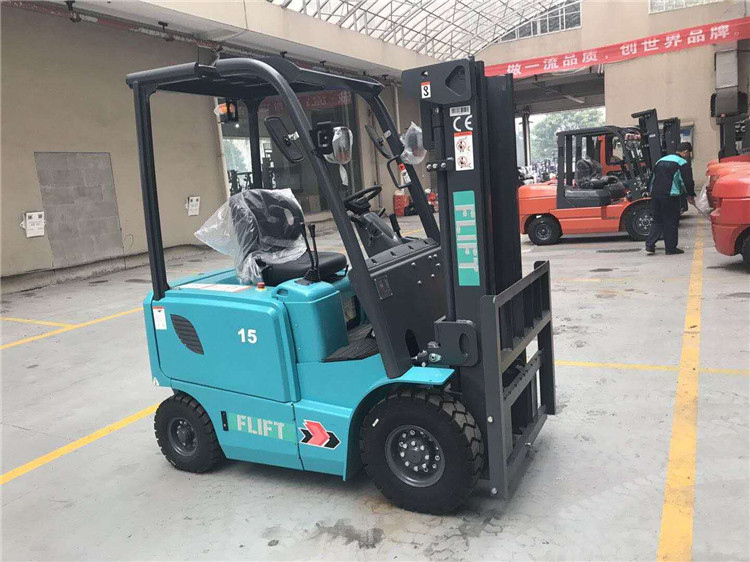

 FLIFT 1.5ton 4-wheel Electric Forklift FB15 Model

Full AC System and Comfortable Operator Space
 Lower Energy Consumption and Energy Regeneration Function
 Easy-to-read operator display
Zero-Emission, Zero-Pollution, Low-Level Vibration,
Low-Level Vibration, Low Operation Cost, High Efficiency, High Quality,
These are the reasons for you to choose FLIFT Electric Forklift.

Product Parameter
Model FB15
Power Type Electric
Rated Capacity 1500 kg
Load Centre 500 mm
Lift Height 3000 mm
Fork Size 920*120*35 mm
Mast Tilt Angle 6°/12°
Front Overhang 420 mm
Tread 890/920 mm
Ground Clearance 115 mm
Fork Spread 240/970 mm
Length to face of fork 2150 mm
Mast Extended Height 3945 mm
Overhead guard height 2170 mm
Overall Width 1090 mm
Mast Lowered Height 1995 mm
Turning Radius 1950 mm
Min.insecting aisle 2050 mm
Travel Speed( Empty outside) 15 km/h
Lifting Speed(Full load) 280 mm/s
Max. Gradeability 15%
Front Tire 6.50-10-10PR
Rear Tire 5.00-8-10PR
Wheel Base 1380 mm
Service Weight 3070 kg
Drive Motor 8 kw
Lift Motor 8.6 kw
Battery (Voltage/Capacity) 48V/440AH
Controller Manufacturer CURTIS
Controller Type AC

Product Details

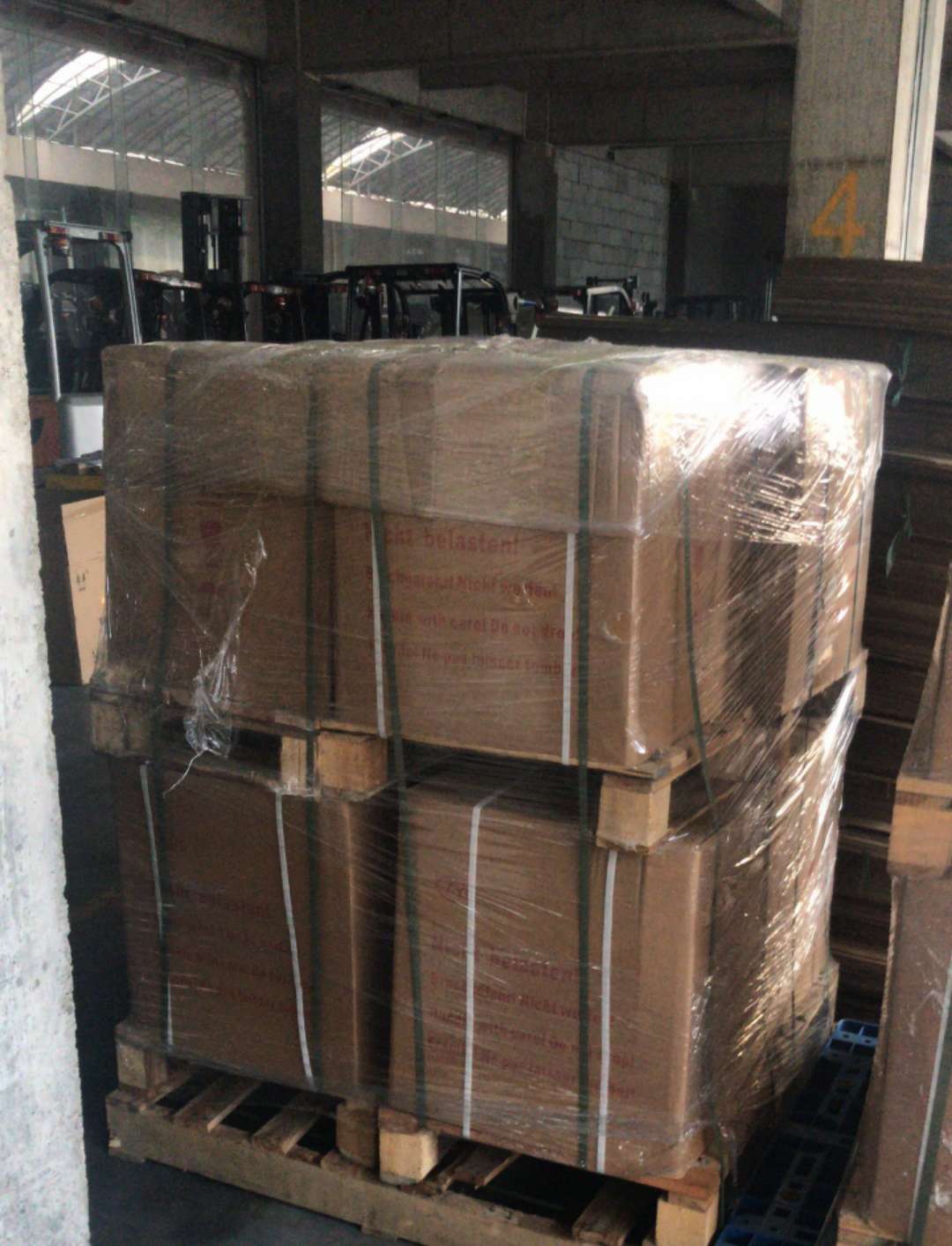

1: Battery Charger

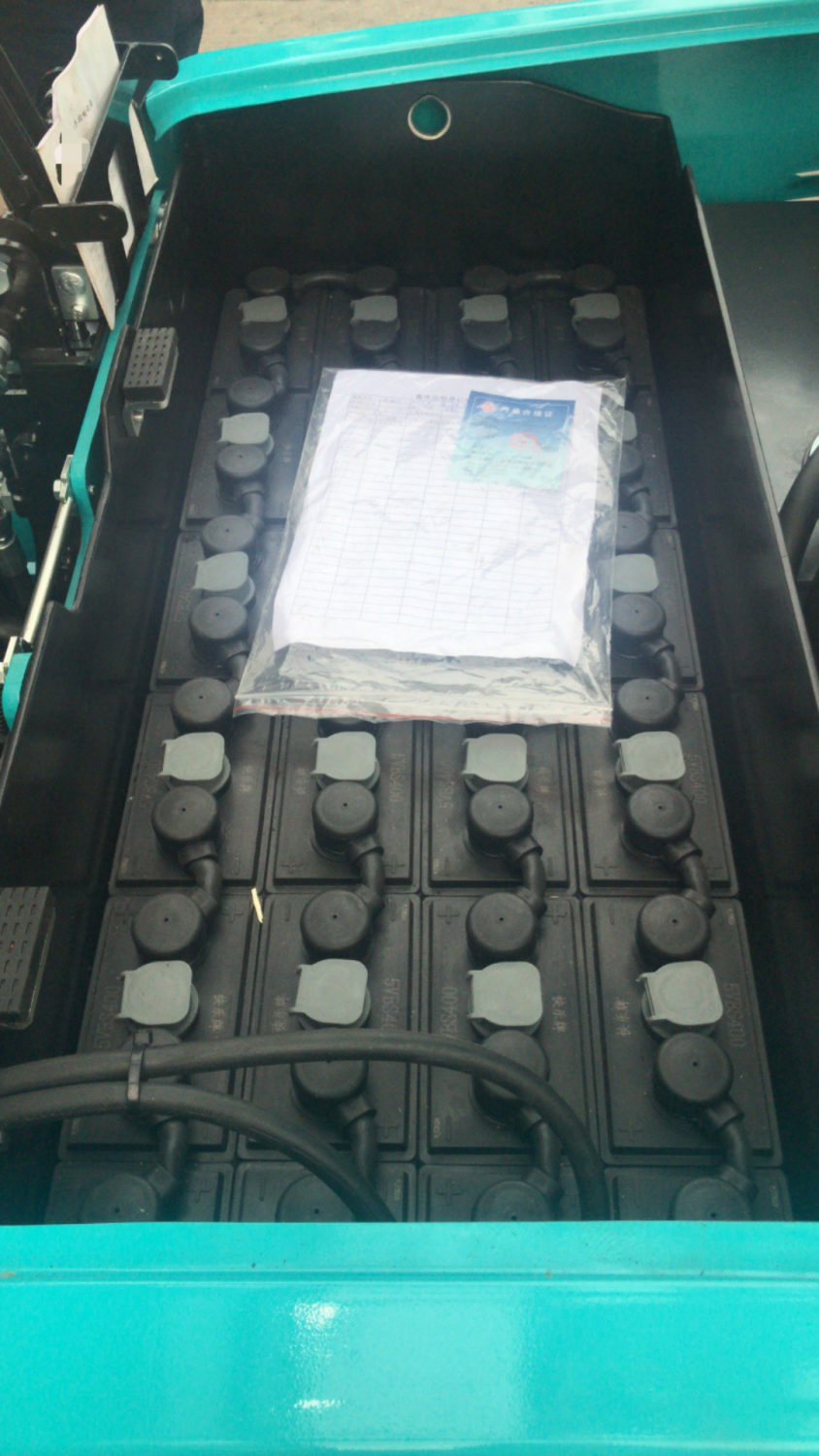

2:Battery for FB15

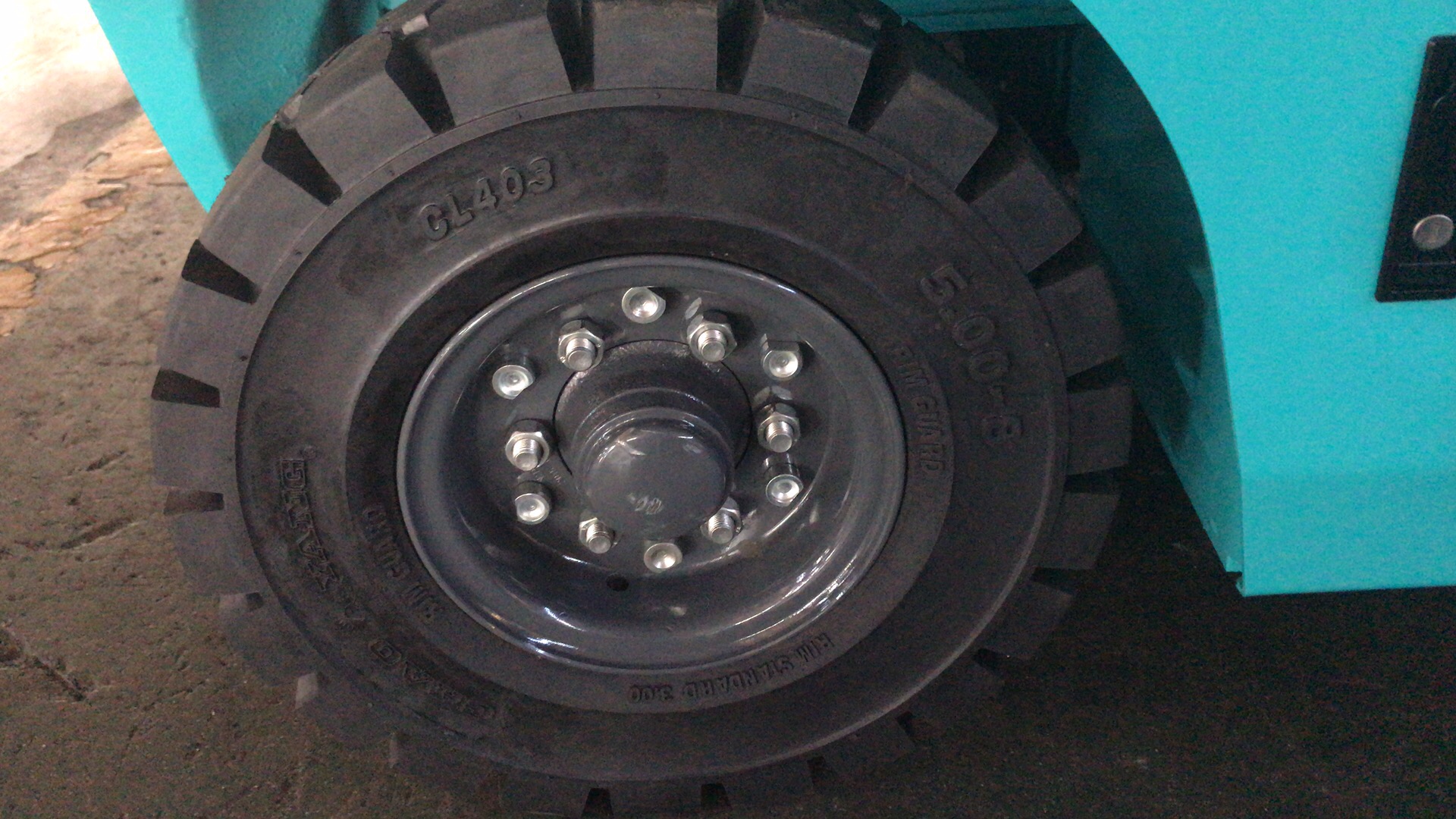

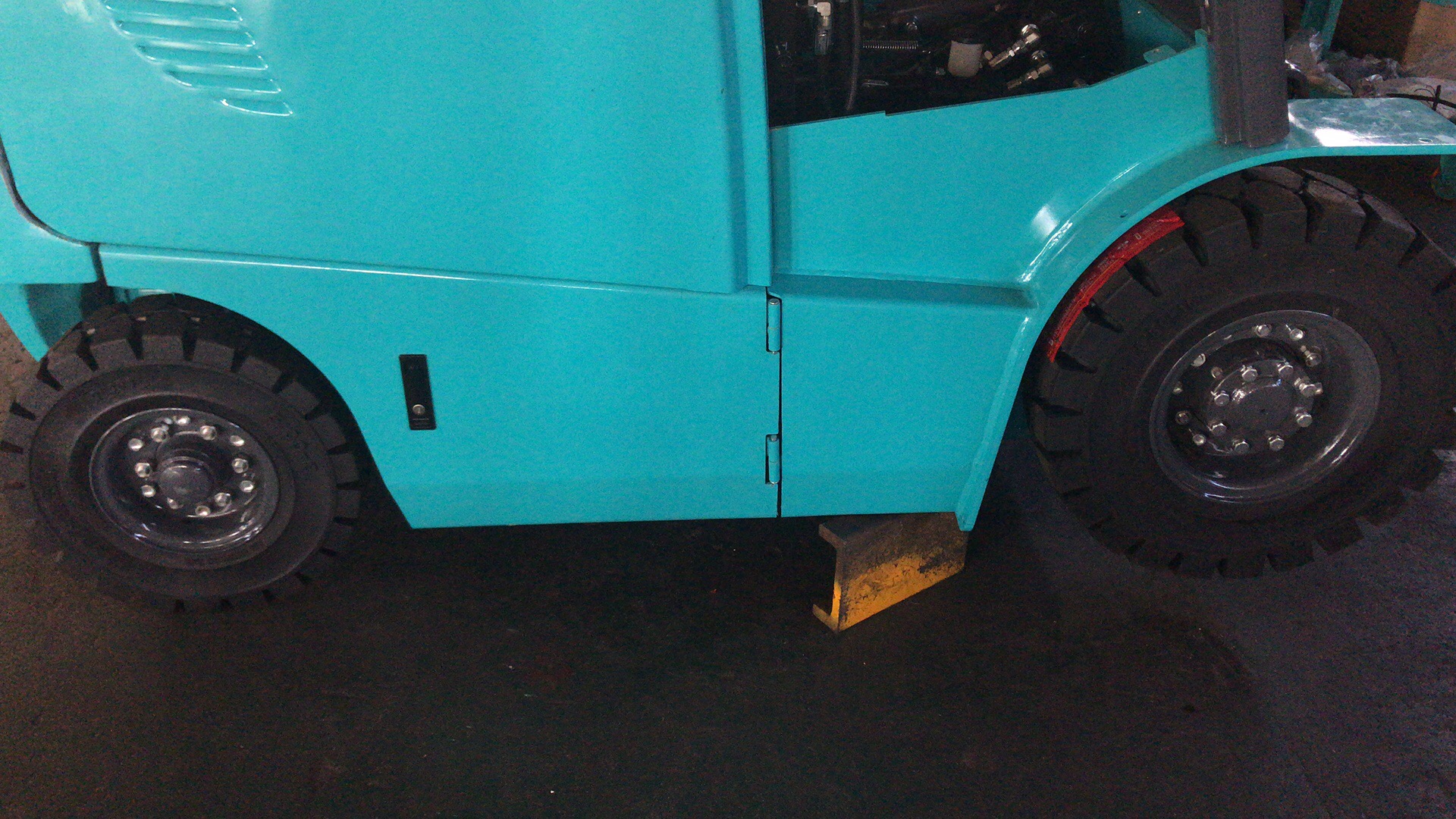

3:Solid Tires
