Comparison of 5-8 Ton Diesel Forklift

Date: 2023-05-23 View:

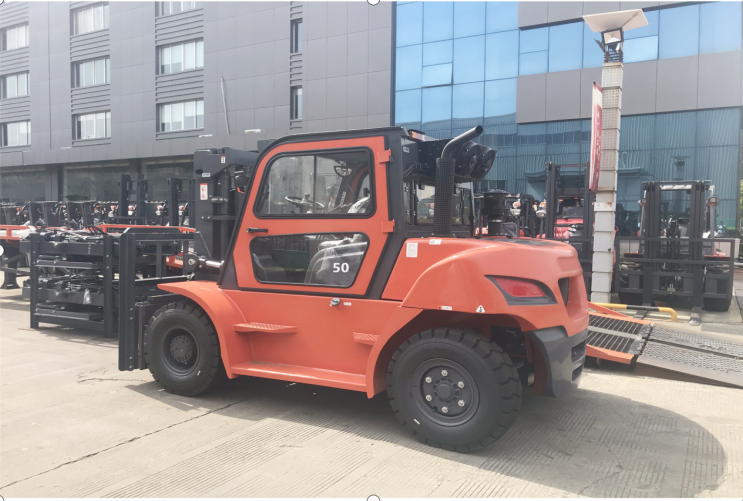

FLIFT 5-8 Ton Diesel Forklift Comparison










Product Description
►Through compare with the 5-8 ton diesel forklift,
the big 5 ton forklift almost own the same parameters,
except the overall length and service weight is small difference.
Especially the load center is 600mm.
►Indicate that big 5 ton series be able to lifting goods over 5 ton as descent to the 3 m height.
(We had tested the maximum lifting capacity is around 58000kg as lifting up to 3m)

Specification Comparison of 5t-8t Diesel Forklift

Model FD50 FD60 FD70 FD80
Power Type Diesell
Diesel Diesel Diesel
Rated Capacity 5000 kg 6000 kg 7000 kg 8000 kg
Load Centre 600mm 600 mm 600 mm 600 mm
Lift Height 3000 mm 3000 mm 3000 mm 300 mm
Fork Size 1220*150*60 mm 1220*50*60mm  1220*150*70 mm 1220*150*70 mm
Mast Tilt Angle 6°/12° 6°/12° 6°/12° 6°/12°
Front Overhang 590 mm 590 mm 595 mm 595 mm
Ground Clearance 200 mm 200 mm 200 mm 200 mm
Length to Face of fork 3450 mm 3450 mm 3560 mm 3560 mm
Overall Width 2010 mm 2010 mm 2010 mm 2010 mm
Mast Lowered Height 2500 mm 2500 mm 2500 mm 2500 mm
Mast Extended Height 4415 mm 4415 mm 4415 mm 4415 mm
Overhead Guard Height 2470 mm 2470 mm 2470 mm 2470 mm
Turning Radius 3250 mm 3250 mm 3350 mm 3350 mm
Min.insecting Aisle 2960 mm 2960 mm 3040 mm 3040 mm
Travel Speed(Empty load) 30  km/h 30 km/h 30 km/h 30 km/h
Lifting Speed(Full load) 500 mm/s 500 mm/s 460 mm/s 420 mm/s
Max.Gradeability 20% 20% 20% 20%
Front Tire 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-15PR
Rear Tire 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-15PR
Wheel Base 2250 mm 2250 mm 2250 mm 2250 mm
Service Weight 8150 kg 8750 kg 9750 kg 10350 kg
Voltage/Capacity (12/80)*2 (12/80)*2 (12/80)*2 (12/80)*2
Engine model 6BG1 6BG1 6BG1 6BG1
Engine Manufacture ISUZU ISUZU ISUZU ISUZU
Engine  Rated output/r.p.m. 82.3/2000 kw 82.3/2000 kw 82.3/2000 kw 82.3/2000 kw
Engine Rated torque/r.p.m. 416/1400-1600 N·m 416/1400-1600 N·m 416/1400-1600 N·m 416/1400-1600 N·m
Engine No.of Cylinder 6 6 6 6
Engine Bore*Stroke 105*125 105*125 105*125 105*125
Engine Displacement 6494 cc 6494 cc 6494 cc 6494 cc
Engine Fuel Tank Capacity 140L 140L 140L 140L
Transmission Type Hydraulic Hydraulic Hydraulic Hydraulic
Transmission Stage 2/2 2/2 2/2 2/2
Operating Pressure for Attachment 19 Mpa 19 Mpa 19 Mpa 19 Mpa

(The highlight line indicate the difference, the others parameter is same.)

Diesel&Gasoline Engine

The Big 5ton series also could be equipped with
the 6 cylinder diesel engine and 4 cylinder Turbo diesel engine.
The optional Diesel Engine:
1: Japanese Isuzu 6BG1(6 cylinder)
   2: Mitsubishi S6S            (6 cylinder)
                           3:USA Cummins QSF 3.8 engine.(4 cylinder Turbo)
                           4:USA Cummins QSF 4.5 engine.(6 cylinder Turbo)
A large number of America clients prefer to use the Lpg/ Cng&Gasoline.
          In other words, our 5-8 ton forklift also could be equipped with
gasoline engine and LPG/CNG device, so called dual fuel forklift.

The optional gasoline engine:
1:America PST 4.3 gasoline engine(EPA-T4F)
(EPA-T4F,represent the EPA approved engine which could be exported into the America Market.
Meaning the highest emission standard in USA.)
EAP:(Envirormental Protection Agency)
