FLIFT 3 Ton 4-wheel Electric Forklift With Air Tires On Sale

Date: 2023-05-10 View:

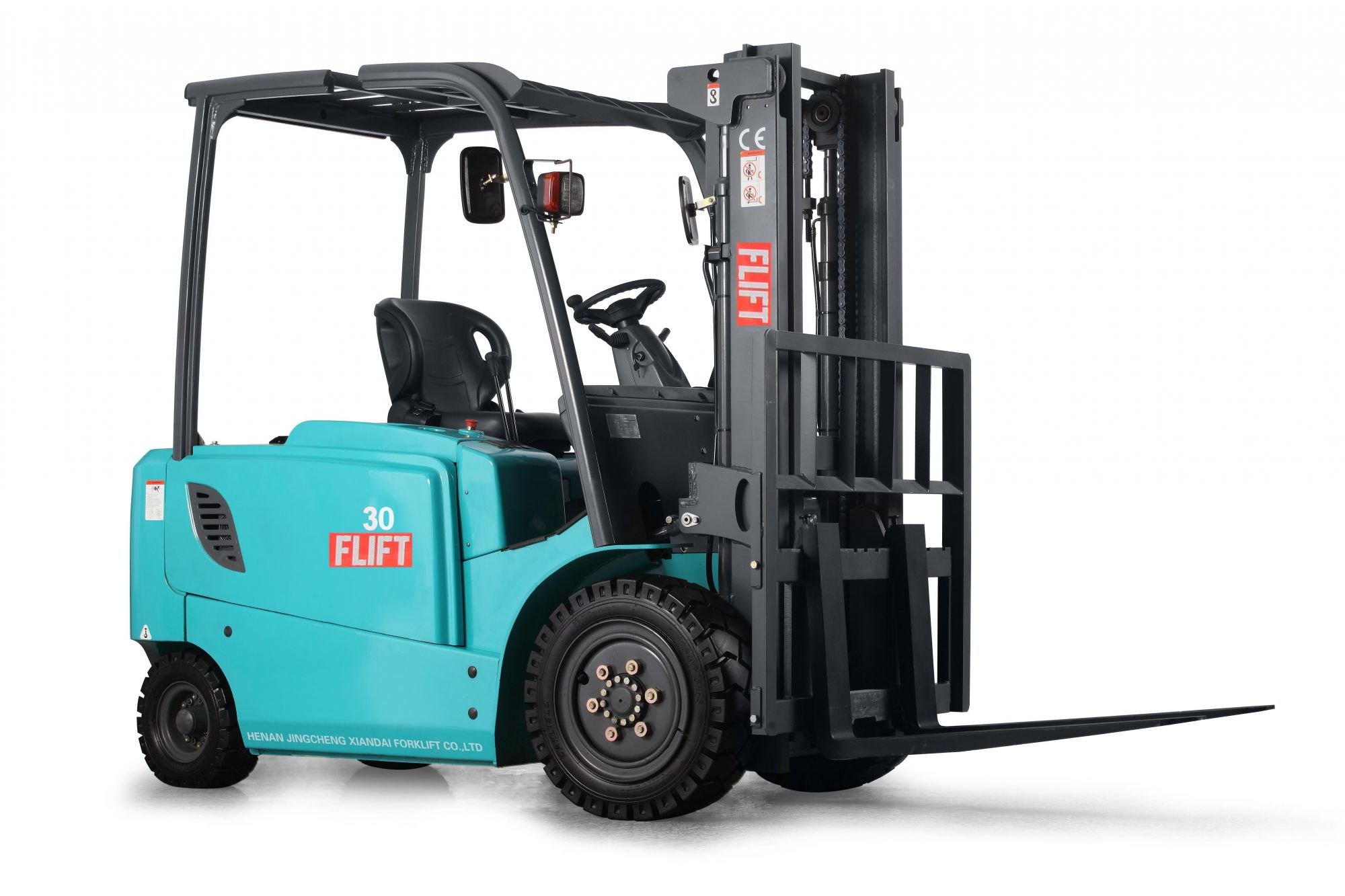

3 Ton 4-wheel Electric Forklift With Air Tires On Sale

Product Description
(1)High Quality Electrical components
Original imported world famous brand controller.After professional adjustment,
walking and upgrade controlis precision and efficiency, excellent performance.
The forklift with regenerative braking,ramp braking,fault self-diagnosis and other functions.

(2)Reliable Steering System
Using dynamic load sensing priority steering system,
steering response more quickly, driving more smoothly.

(3)Comfortable Operating Space
Eronomic full-scale operation space layout optimization,
which offers operator excellent,comfortable and convenient operating experience.

(4)Efficient Drive System
Advanced H-type remote drive unit, compact structure,
lower gravity center, more reasonable layout, more stable driving.

(5) Battery Side-take Function
Fully open hood, it can quickly remove from both side.
Hinge design frame side door. The using of advanced design concept of battery replacement program,
gives fast and convenient maintenance.

Product Parameter
Model FB30
Power Type Electric
Rated Capacity 3000 kg
Load Centre 500 mm
Lift Height 3000 mm
Fork Size 1070*125*45
Front Overhang 480 mm
Tread(Front/Rear) 1000/980 mm
Ground Clearance 120 mm
Fork Spread(Min.Max) 250/1100
Length to face of fork 2560 mm
Overall width 1230 mm
mast lowered height 2120 mm
Mast Extended Height 4160 mm
Overead guard height 2250 mm
Turning Radius 2315 mm
Min. insecting aisle 2425 mm
Travel speed(empty outside) 15 km/h
Lifting speed(Full load) 300 mm/s
Max.Gradeability 15%
Front tire 28*9-15-12PR
Rear Tire 18*7-8-14PR
Wheel Base 1710 mm
Service Weight 5100 kg
Drive Motor 15 kw
Lift Motor 12 kw
Battery 80V/500Ah
Controller Manufacturer CURTIS
Controller type AC
Operating Pressure for Attachmen 17.5 Mpa
