High Quality 3.5 Ton Diesel Forklift On Sale

Date: 2023-06-14 View:

 Best Selling 3.5 Ton Diesel Forklift With Good Quality

Product Features

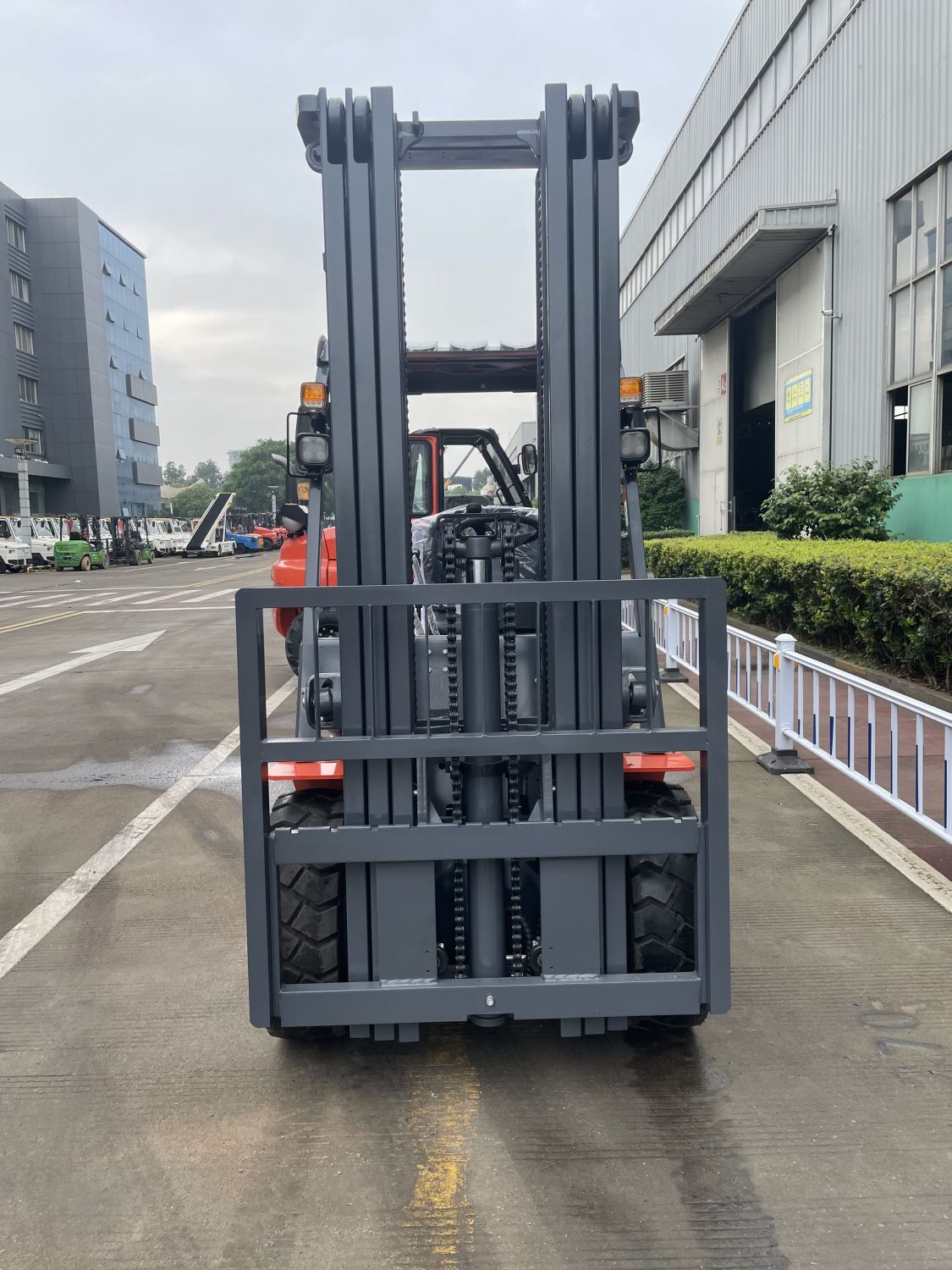

1:Wide view mast

Wide-view mast gives the operator and enhanced forward visibility,
which adds great to the efficiency and safety of operator.

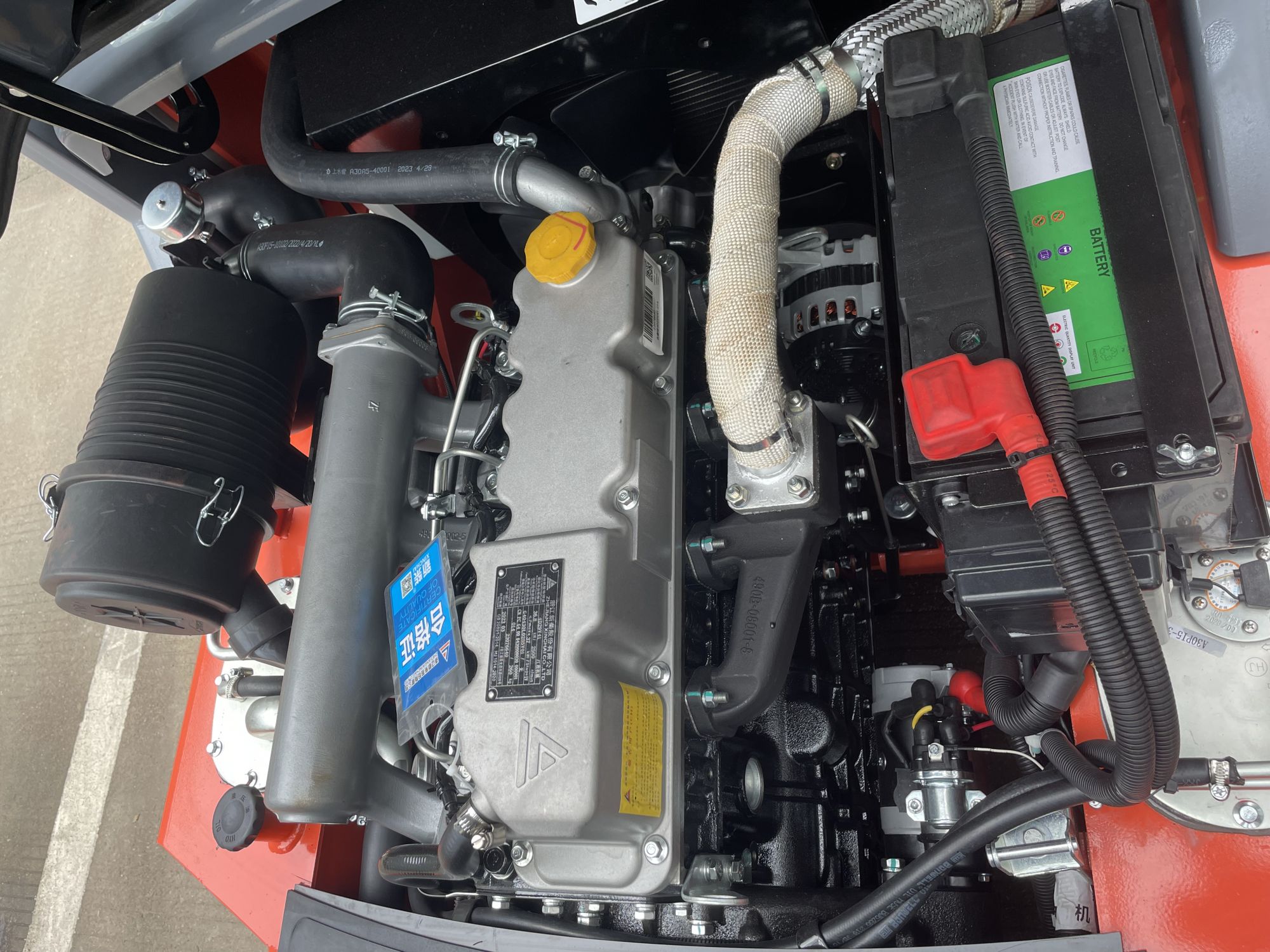

2: Powerful Engine

The powerful engine ensures our trucks high handling performance
and offers an intrinsical safety and efficient operation.

3: Solid Overhead Guard

Specially designed solid overhead guard
provides additional security for the operator.

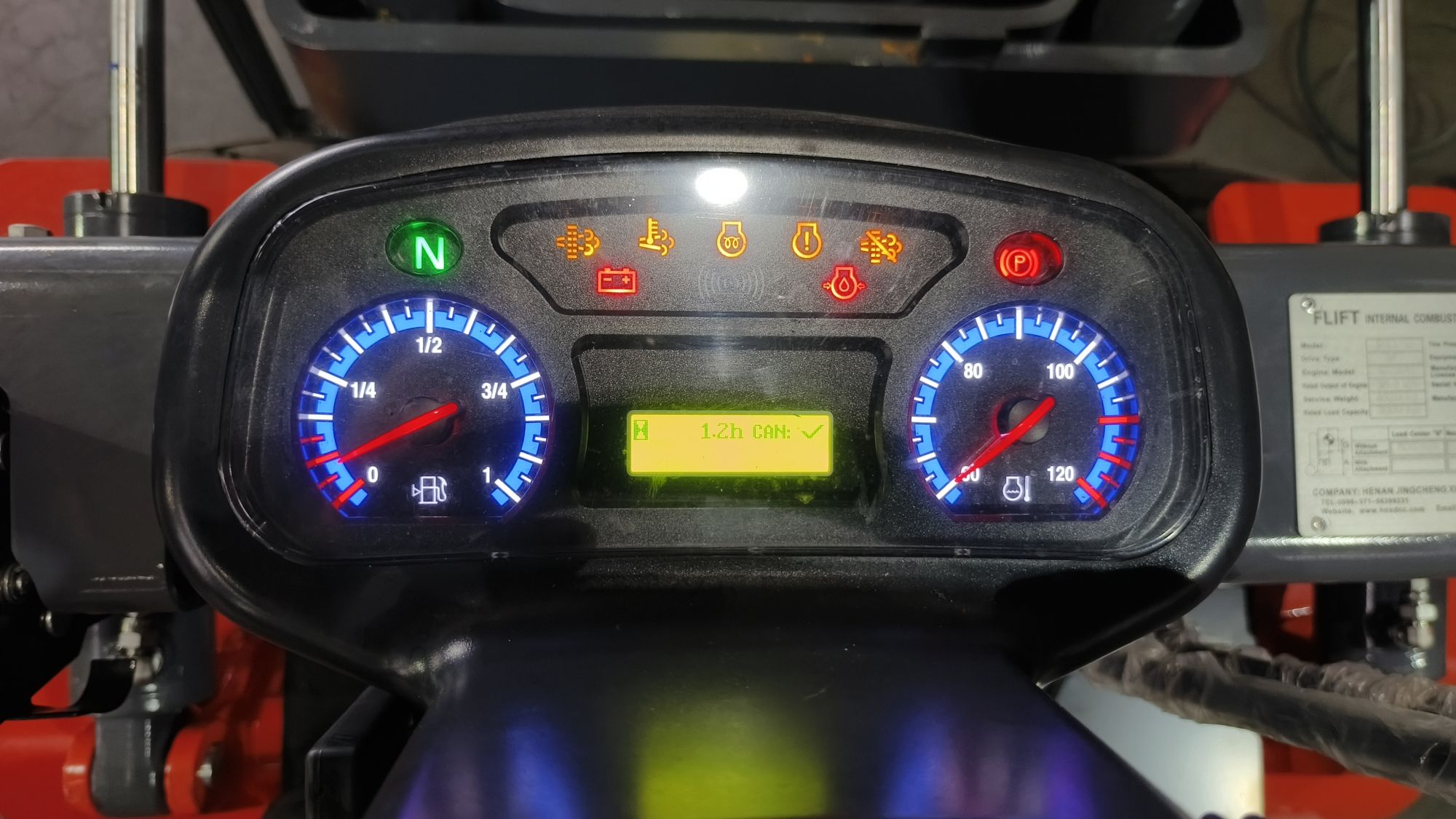

4: Reliable Instruments

The instruments offer an easy access to the working condition of the truck,
thus makes handling process more efficient and safe.

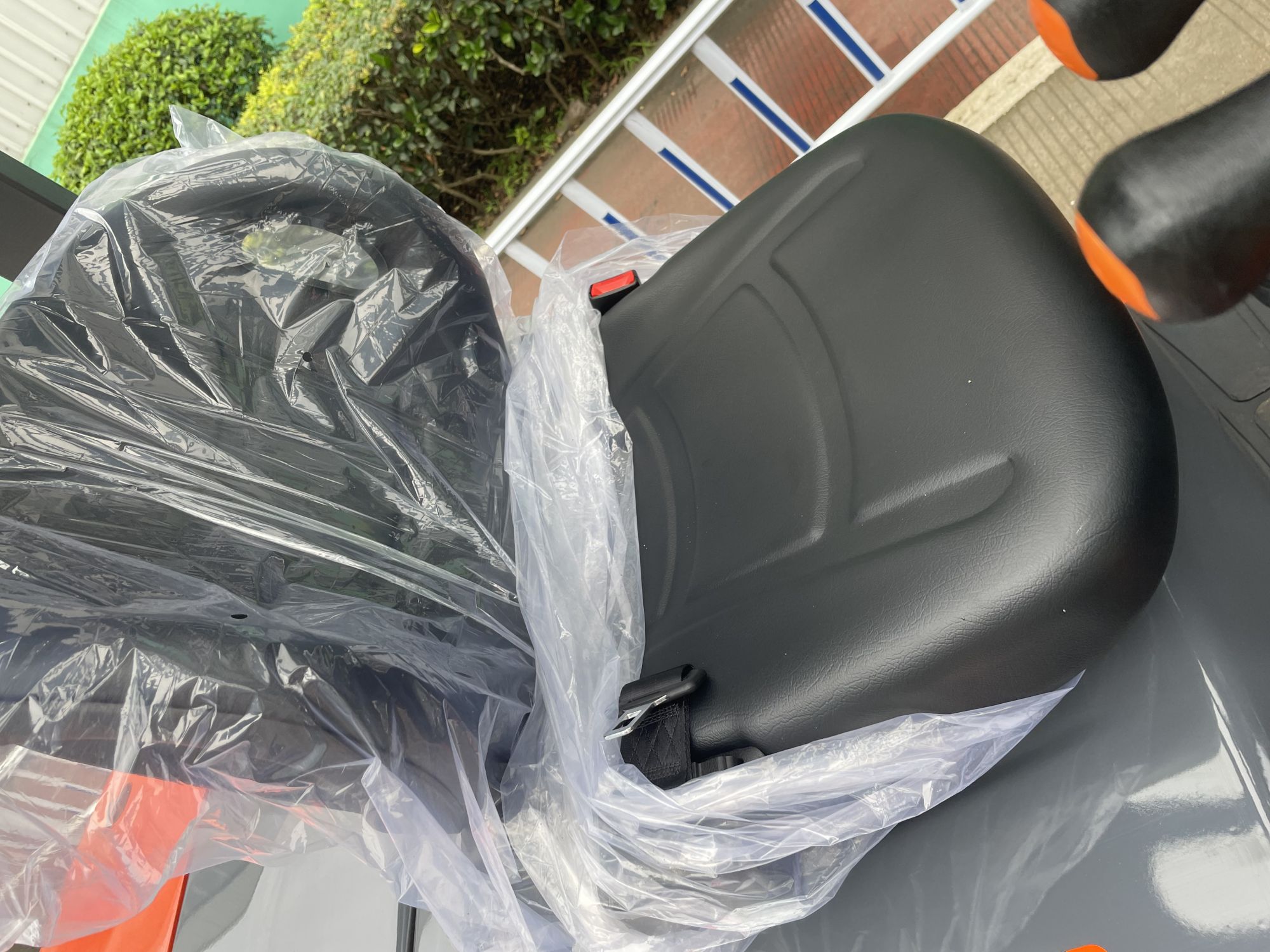

5: Ergonomics Seat

Designed according to ergonomic principles,
makes operation much comfortable and also relieves the fatigue
caused by long time continuous operation.

6: Super low and non-slip step

Supper low and non-sslip make operating convenient and safe.

Product Parameter

Model FD35
Power Type Diesel
Rated Capacity 3500 kg
Load Centre 500 mm
Lift Height 3000 mm
Fork Size 1070*125*50 mm
Mast Tilt Angle 6°/12°
Front Overhang 480 mm
Ground Clearance 135 mm
Length to face of fork 2770 mm
Overall Width 1225 mm
Mast Lowered Height 2175 mm
Mast extended height 4160 mm
Overhead guard height 2090 mm
Turning Radius 2480 mm
Min.insecting aisle 2530 mm
Travel(Empty outside) 19 km/h
Lifting(Full load) 520 mm/s
Max. Gradeability 20%
Front Tire 28*9-15-12PR
Rear Tire 6.50-10-10PR
Wheel Base 1700 mm
Service Weight 4500 kg
Engine Model 4JG2PE-01
Engine Manufacture ISUZU
Engine Rated output/r.p.m. 46/2450 kw
Engine Rated torque/r.p.m. 186.3/1600-1800 N.m
Engine No.of Cylinder 4
Engine(Bore*Stroke) 95.4*107 mm
Engine Displacement 3059 cc
Engine Fuel Tank Capacity 60 L
Battery(Voltage/Capacity) 12V/80Ah
Operating Pressure for Attachment 17.5 Mpa
