FLIFT 2-2.5 Ton Electric Pallet Stacker On Sale

Date: 2023-06-13 View:

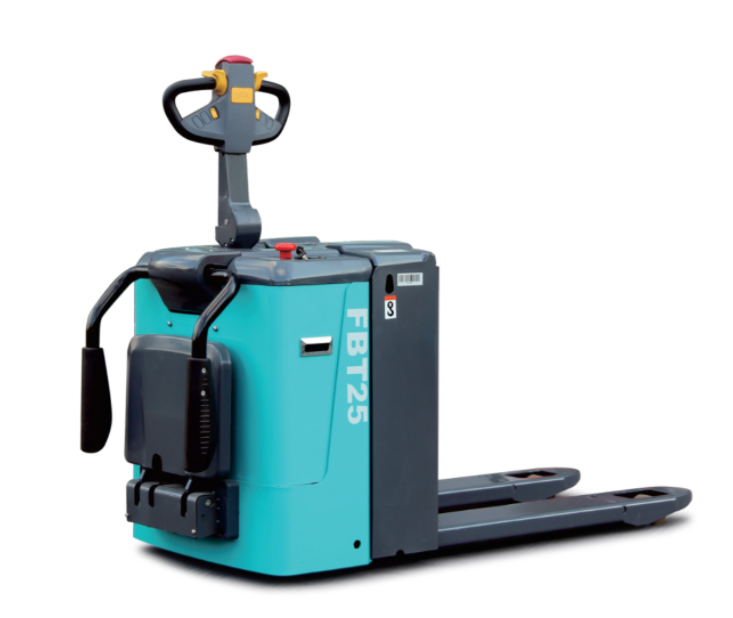

 Hot Sale 2-2.5 Ton Electric Pallet Stacker

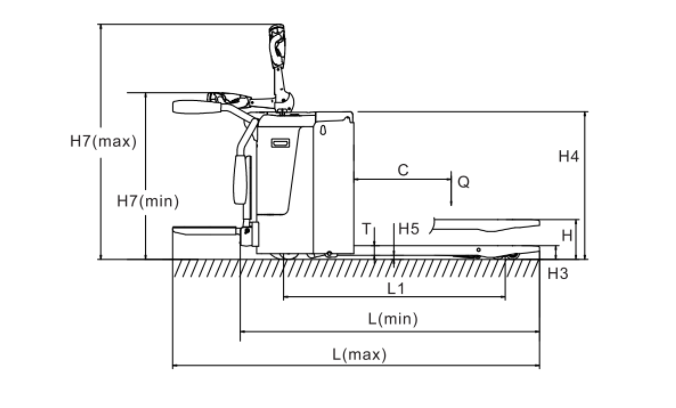

Product Parameter

 Model  FBT20  FBT25
 Power Type  Electric  Electric
 Operation Type  Pedestrian  Pedestrian
 Rated Capacity  2000 kg  2500 kg
 Load Center  600 mm  600 mm
 Weight(with battery)  655 kg  680 kg
 Material  PU  PU
 No.of Wheels  1X+2/4  1X+2/4
 Drive Wheel  Ø230*70 mm  Ø230*70 mm
 Load Wheel  Ø80*70 mm  Ø80*70 mm
 Balance Wheel  Ø100*50 mm  Ø100*50 mm
 Wheel Base  1366 mm  1366 mm
 Lift Height  205 mm  205 mm
 Fork Size  1150*185*60 mm  1150*185*60 mm
 Distance Between Fork Arms  540/560/685 mm  540/560/685 mm
 Overall Length/with Pedal  1844/2216 mm  1844/2216 mm
 Overall Width  773 mm  773 mm
 Overall Height  1148 mm  1148 mm
 Mini. Ground Clearance  85 mm  85 mm
 Height of tiller in drive position  1448/1026 mm  1448/1026 mm

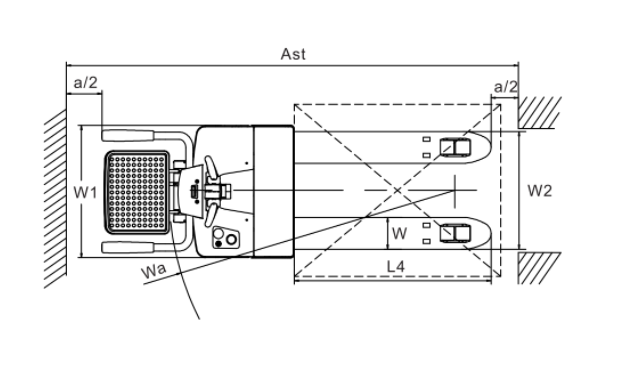

 Turning Radius  1663 mm  1663 mm
 Floor Clearance  25 mm  25 mm
 For pallets 1000*1200 lengthways  2520 mm  2520 mm
 Travel Speed(Laden/unladen)  5.5/6 km/h  5.5/6 km/h
 Lifting Speed( Laden/unladen)  35/40 mm/s  35/40 mm/s
 Lowering Speed(Laden/Unladen)  45/35 mm/s  45/35 mm/s
 Max. Gradeability(Laden/unladen)  8/15%  8/15%
 Braking System  Electromagnetic  Electromagnetic
 Battery(Voltage/Capacity  24V/180 Ah  24V/210 Ah
 Drive Motor  1.5 kw  1.5 kw
 Lift Motor  2.2 kw  2.2 kw
 Steer Motor  0.2 kw  0.2 kw
 Controller  Curtis DC  Curtis DC


Product Advantages


Reasonable wheel load on drive / balance wheel, ensure good stability.
► Electronic limit of the lift, eliminate lifting shocks to ensure operation safety.
►AMP water-proof connector, greatly increase the raliability.

AC drive motor, big power, Low radiation, maintenance free.
►Germany ZF transmission and INTRO brake.
►Two side balance wheel with shork absorbing.

Auto speed reduction in turning.
►Emergency button for safty.
►Anti-skid ramp function to ensure safe operation on ramp.

Damping Pedal provides more confortable driving.

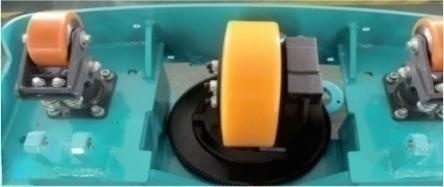

►Floating drive wheel offer more flexibility and stability.
►EPS steering, easy and precise operation.

Easy Maintenance
Openable cover for convenient maintenance.
►Built-in charger, maintenance free battery.
