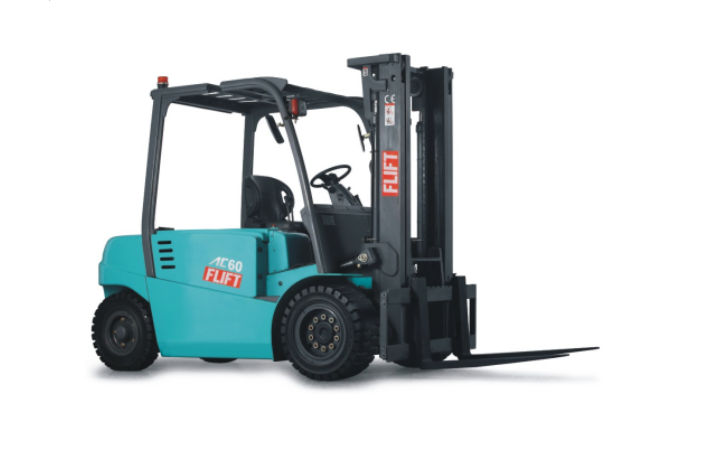

6 Ton 4-wheel Electric Forklift With High Quality On Sale

Date: 2023-07-05 View:

 Factory Direct Sale FB60 With High Quality On Sale

Product Parameter

 Model  FB60
 Power Type  Electric
 Rated Capacity  6000 kg
 Load Centre  500 mm
 Lift Height  3000 mm
 Fork Size(L*W*T)  1070*150*50 mm
 Mast Tilt Angle (F/R)  6°/9°
 Front Overhang( Wheel Center to fork face)  555 mm
 Tread(F/R)  1280/1190 mm
 Ground Clearance( Bottom of mast)  160 mm
 Fork Spread( Min./Max)  300/1380 mm
 Length to face of fork(without fork)  3030 mm
 Overall Width  1600 mm
 Mast Lowered Height  2330 mm
 Mast Extended Height( with backrest)  4255 mm
 Overhead Guard Height  2255 mm
 Turning Radius( outside)  2755 mm
 Min. insecting aisle  2955 mm
 Travel (Empty load)  14 km/h
 Lifting (Full load)  220 mm/s
 Max. Gradeability  15%
 Front Tire  2.8*12.5-15-24PR
 Rear Tire  7.00-12-14PR
 Wheel Base  2000 mm
 Service Weight  8200 mm
 Drive Motor  9.1*2 kw
 Lift Motor  25.4 kw
 Voltage/ Capacity  80V/800 Ah
 Manufacturer  CURTIS
 Type  AC
 Operating Pressure for Attachment  17.5 Mpa

Product Details

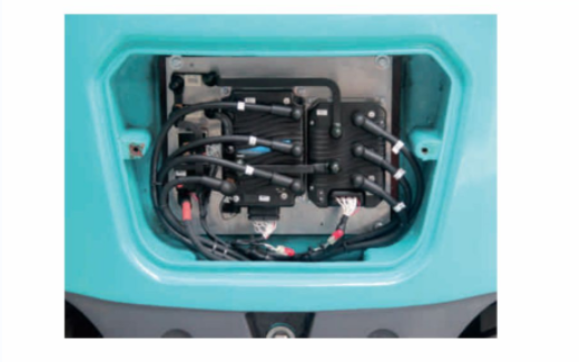

1: High Quality Electrical Components

Original imported world famous brand controller.
After professional adjustment,
walking and upgrade control is precision and efficienct, excellent performance.
The forklift with regenerative braking, ramp braking, fault self-diagnosis and other functions.

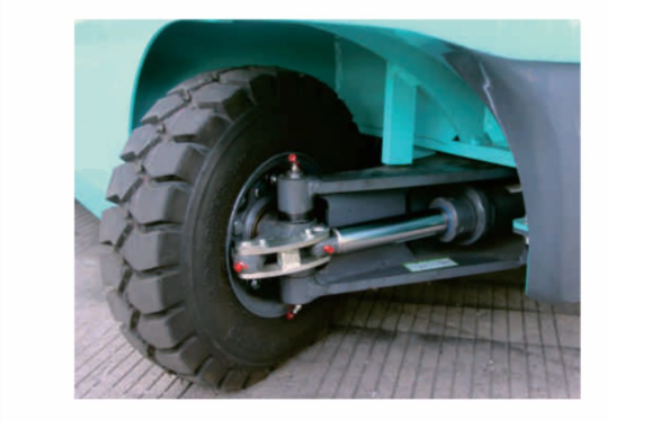

2: Reliable Steering System

Using dynamic load sensing priority steering system,
steering response more quickly, drivng more smoothly.

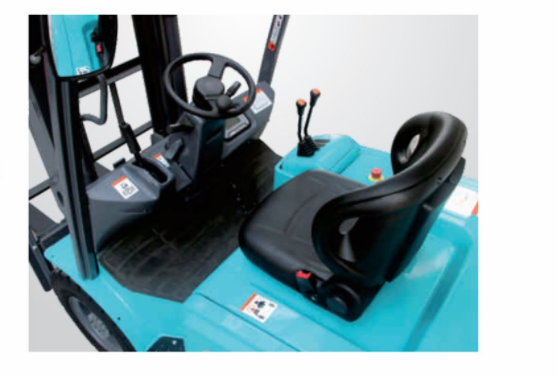

3:Comfortable Operating Space

Ergonomic full-scale operation space layout optimization,
which offers operator excellent. comfortable and convenient operating experience.

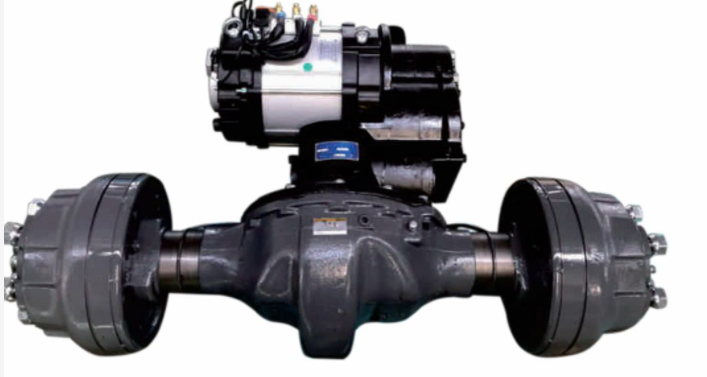

4: Efficient Drive System

Advanced H-type remote drive unit, compact structure,
lower gravict center, more reasonable layout, more stable driving.

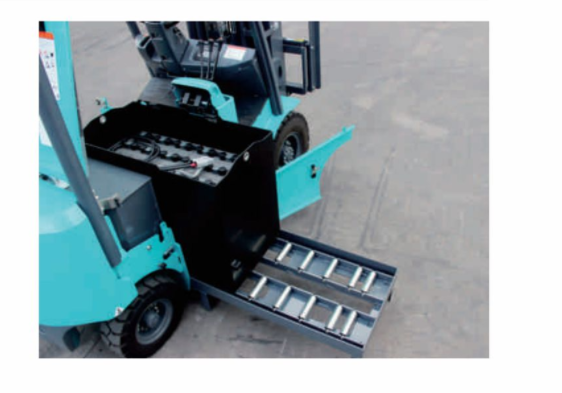

5: Battery Side-take Function

Fully open hood, it can quickly remove from both side.
Hinge design frame side door.
The using of advanced design concept of battery replacement program,
gives fast and convenient maintenance.
