FBD 12J/15J Elrctric Pallet Stacker

Date: 2023-07-04 View:

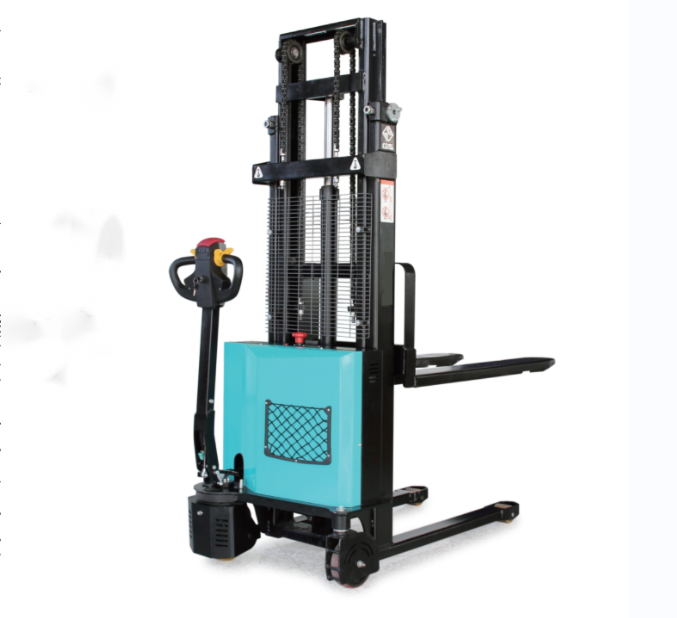

 High Quality FBD 12J/15J Electric Pallet Stacker

Product Parameter

Model FBD12J FBD15J
Power Type Electric Electric
Operation Type Pedestrian Pedertrian
Rated Capacity 1200 kg 1500 kg
Load Center 600 mm 600 mm
Weight( with battery) 1210 kg 1210 kg
Material PU PU
No.of wheels 1X+1/2 1X+1/2
Drive Wheel Ø 230*75 mm Ø 230*75 mm
Load Wheel Ø 80*80 mm Ø 80*80 mm
Balance Wheel Ø 180*50 mm Ø 180*50 mm
Wheelbase 1230 mm 1230 mm
Lift Height 3000 mm 2000 mm
Mast Extended Height(with backrest) 3445 mm 2445 mm
Height of Tiller in Drive Position min./max 1140/1156 mm 1140/1156 mm
Fork Size(L4*w*T) 1150*160*55 mm 1150*160*55 mm
Distance between Fork Arms(outside) 685 mm 685 mm
Overall Length 1730 mm 1730 mm
Overall Width 800 mm 800 mm
Overall Height 1780 mm 1950 mm
Mini. Ground Clearance(forks) 85 mm 85 mm
Turning Radius 1644/1430 mm 1644/1430 mm
Floor Clearance 30 mm 30 mm
For pallets 1000*1200 lengthways 2586/2600 mm 2586/2600 mm
For pallets  800*1200 lengthways 2437/2530 mm 2437/2530 mm
Travel Speed( Laden/ unladen) 5.5/6 km/h 2/5/3 km/h
Lifting Speed (Landen/ unladen) 80/150 mm/s 75/90 mm/s
Lowering Speed( Laden/Unladen) 145/110 mm/s 85/75 mm/s
Max. Gradeability( Laden/ unladen) 8/6 % 7/5 %
Braking System Electromagnetic Electromagnetic
Battery Voltage/Capacity 2*12V/80Ah 2* 12V/80Ah
Drive Motor 0.75 kW 0.75 kW
Lift Motor 2.2 kW 2.2 kW
Controller Curtis DC Curtis DC

Product Features

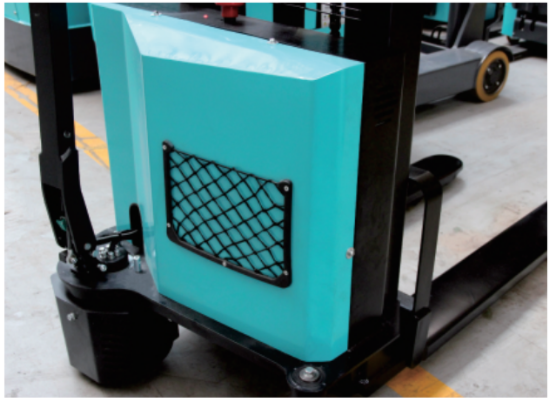

1:Tight and strong structure,
metal back cover with folder, Practice and beautiful.

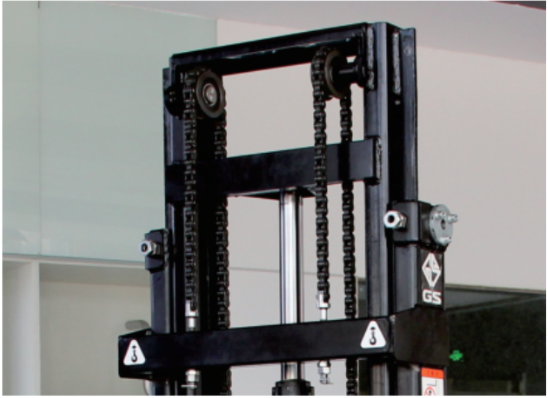

2:Stainless steel chain rod,
plate chain, solid and durable sheave.

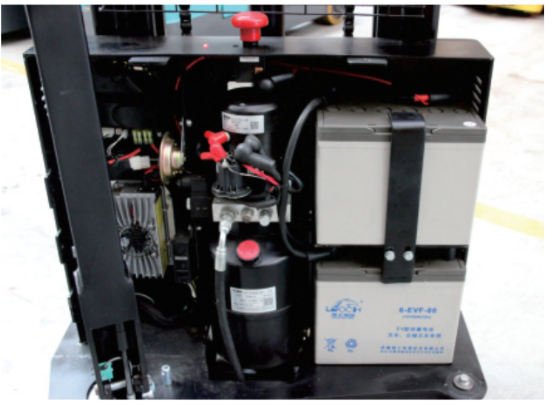

3:Battery well position, never fall off.

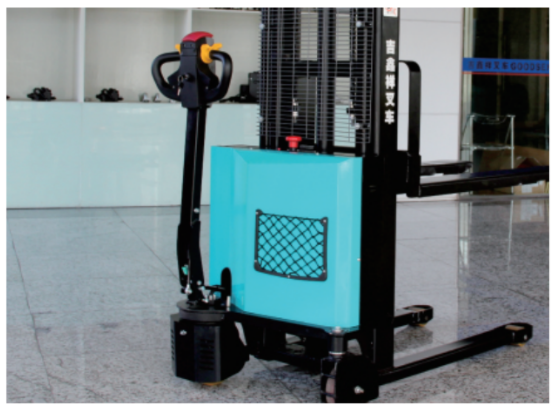

 4:The tiller can automaticly re-set

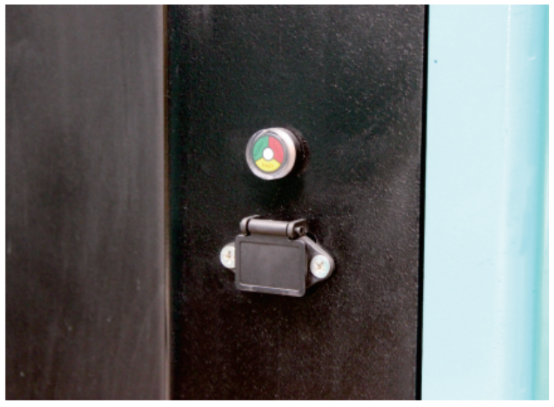

 5:Plug with cover, charging with indicator
