FLIFT Brand 3 Ton Side Loader Forklift With XINCHAI Engine

Date: 2023-05-05 View:

Supply 3 Ton Side Loader Forklift With XINCHAI Engine

Product Parameter

Power Type Diesel
Rated Capacity 3000 kg
Load Centre 500 mm
Lift Height 3600 mm
Front Overhang 700 mm
Ground Clearance 160 mm
Turning Radius 4250 mm
Wheel Base 2550 mm
Service Weight 2590 kg
Battery 12V/80Ah
Engine Manufacture XINCHAI
Engine(Rated output/r.p.m.) 42/2500 (kw)
Engine(Rated torque/r.p.m.) 193/1800 (N.m)
Engine(No. of Cylinder) 4
Engine( Bore*Stroke) 98*105 mm
Engine Displacement 3168 cc
Fuel Tank Capacity 75 L
Engine model A498BPG-78
Transmission Type Hydraulic
Max. Gradeability 20%
Product Details
1. Mast:The standard equipment of our products is 3600mm,but we can customized the mast according to the customer's needs.

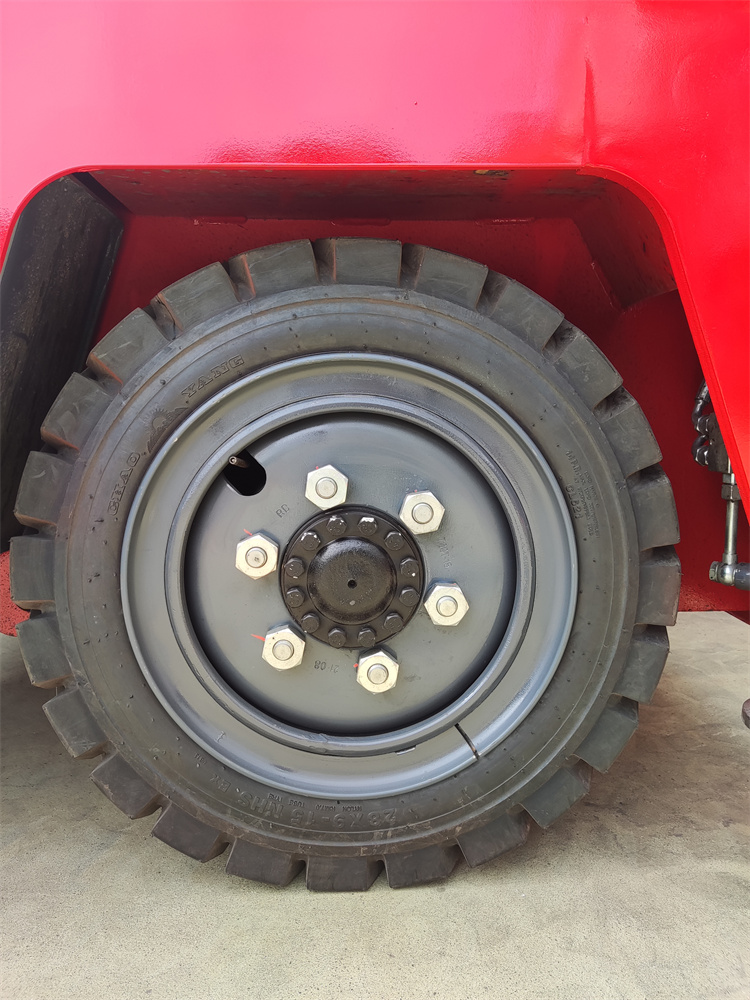

2.Air tires: Air tires can reduce bumps while driving, giving the driver a more comfortable driving feeling.

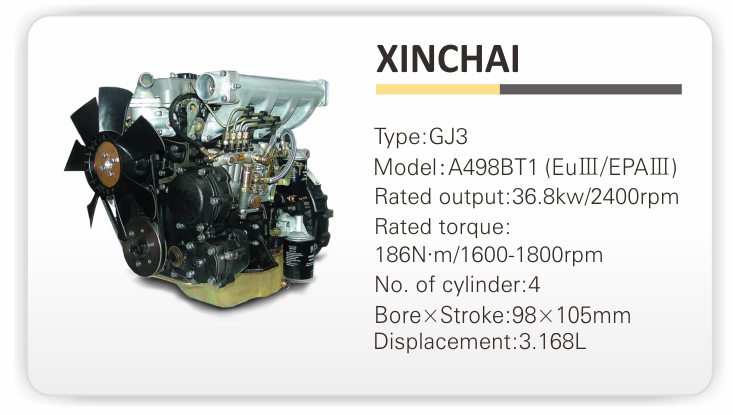

3.XINCHAI Engine:XINCHAI engine is an environmentally friendly engine,and the noise emission also comes up to EU standard.
