FLIFT FBTA 13/15 Mini Electric Pallet Truck On Sale

Date: 2023-06-28 View:

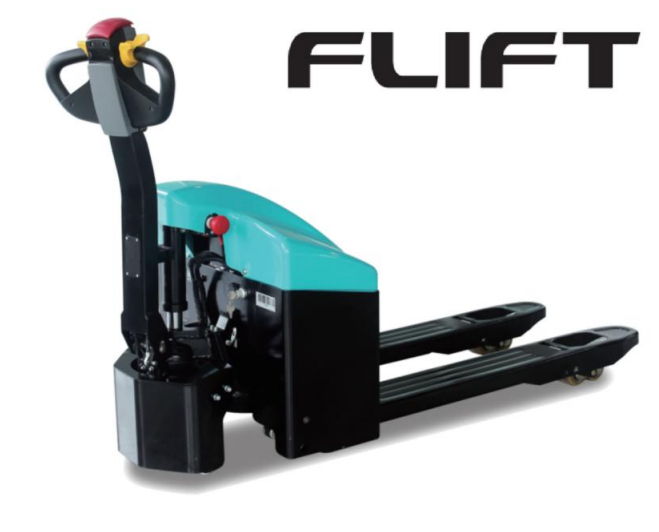

 Best Sale FBTA 13/15 Mini Electric Pallet Truck

Product Parameter
 Model  FBTA13  FBTA15
 Power Type  Electric  Electric
 Operation Type  Pedestrian  Pedestrian
 Rated Capacity  1300 kg  1500 kg
 Load Center  600 mm  600 mm
 Weight(with battery)  195 kg  215 kg
 Material  PU  PU
 No.of Wheels  1X+2/4  1X+2/4
 Drive Wheel  Ø 210*70 mm  Ø 210*70 mm
 Load Wheel  Ø 80*70 mm  Ø 80*70 mm
 Balance Wheel  Ø 55*28 mm  Ø 55*28 mm
 Wheelbase  1152 mm  1152 mm
 Lift Height  205 mm  205 mm
 Fork Size  1150*160*50 mm  1150*160*50 mm
 Distance between Fork Arms  560/685 mm  560/685 mm

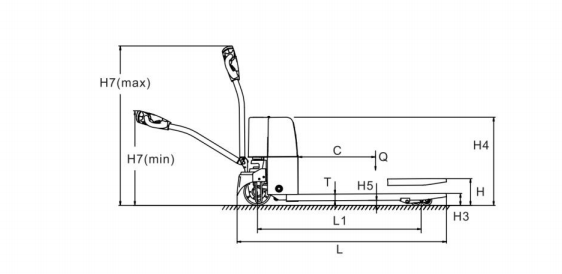

 Overall Length  1720 mm  1720 mm
 Overall Height  703 mm  703 mm
 Mini. Ground Clearance  80/85 mm  80/85 mm
 Height of tiller in drive position  1230/729 mm  1230/729 mm
 Front Overhang  954 mm  954 mm
 Turning Radius  1366 mm  1366 mm
 Floor Clearance  25 mm  25 mm

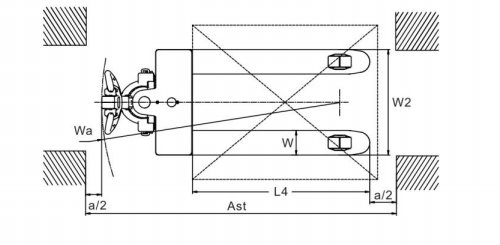

 For pallets 1000*1200 lengthways  1925 mm  1925 mm
 Travel Sopeed  3.5/4 km/h  3.5/4 km/h
 Lifting Speed  35/45 mm/s  35/45 mm/s
 Lowering Speed  45/35 mm/s  45/35 mm/s
 Max. Gradeability  8/15 %  8/15 %
 Braking System  Electromagnetic  Electromagnetic
 Battery Voltage/Capacity  2*12V/65Ah  2*12V/80Ah
 Drive Motor  0.75 kW  0,75 kW
 Steer Motor  0.8 kW  0.8 kW
 Controller  Curtis DC  Curtis DC
 Operating Pressure for Hydraulic System  7.5 Mpa  8.5 Mpa

Product Features

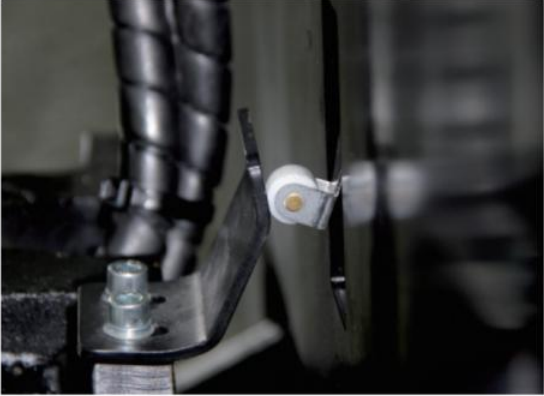

1: Electronic limit in lifting, eliminate lifting shock,
ensure operation safety and usability of the entire vehicle.

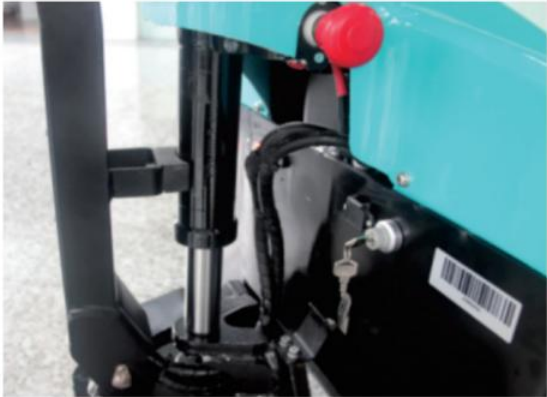

2:The instrument, key and emergency stop switch placed
behind the vehicle to prevent from being wet or stroke by falling objects.

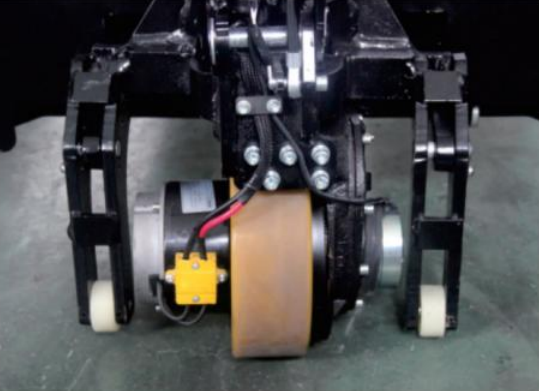

3: The balance wheels of two sides always contact the ground,
so that the vehicle will work stably and have no vibration.
