China High Quality Cheap Price Diesel Forklift Truck 2.5 Ton powerful FD25 Small Forklift

Date: 2022-04-29 View:

Cheap price forklift toyota seat FD25 2.5 ton diesel forklift with good quality for sale



High Strength Overhead Guard
The overhead guard adopts the high strength steel sheet to press molding, providing more sophisticated security for the driver, it can also prevent wind and rain.



Reliable Lifting System

Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
>High-strength alloy channel steel (20MnSiv), the performance is improved by 20% compared with ordinary gantry channel steel;
>Three-section fully free gantry pipeline design, with the same field of view as the two-section gantry;
>The main side rollers are designed independently.



High Performance Hydraulic System
Load sensing priority steering hydraulic system design, flexible steering, mast lift speed increased by 20%;
>Tilt cylinder, lift cylinder and steering cylinder are equipped with imported oil seals;
>The lifting cylinder comes standard with the lowering buffer function.



Intelligent LCD Instrument
Charging Light, High Water Temperature Alarm, Oil-water Separator Alarm, Turn Left Indicator, Time, Neutral Indicator, Preheat Indicator, Engine Failure Indicator, Turn Right Indicator, Water Temperature, Fuel Gauge.



Variety Kinds Of Options

FLIFT forklifts provide users with a variety of power options. Different Power Engines.
>In addition to conventional mechanical and hydraulic gearboxes, Japanese original Okamura suspension gearboxes can be provided;
> Can provide diesel, gasoline, LPG, LNG, CNG fuel power;
>Steering axle can choose steel plate welded axle or one-piece cast axle.

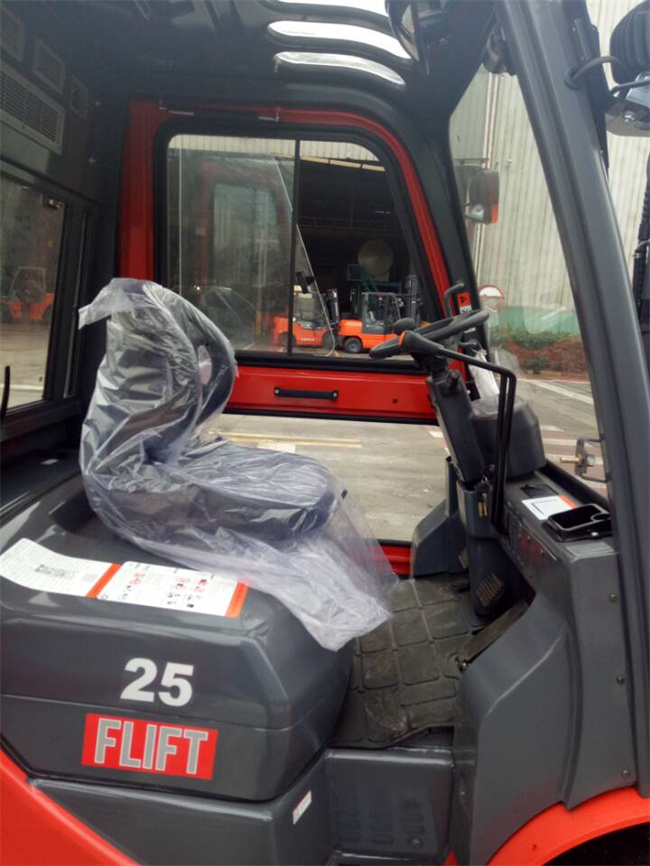

Comfortable Driving Space
All accessories like engine, gear box are supported by domestic and world famous brand, high quality, reliable after-sales.
>Large opening iron stamping hood (opening angle can reach 70%), built-in heat insulation and sound insulation molding lining;
>Large open anti-skid pedals make it more convenient and safe for the operator to get on and off;
>Optional instrument panel cover.



Product Parameters

Model
FD25
Power Type
Diesel
Rated Capacity kg 2500
Load Centre mm 500
Life Height mm 3000
Fork Size mm 1070*120*40
Mast Tlit Angle Deg 6°/12°
Front Overhang mm 470
Ground Clearance mm 120
Length to face of fork mm 2600
Overall Width mm 1150
Mast Lowered Height mm 2055
Mast Extended Height mm 4050
Overhead Guard Height mm 2070
Turning Radius mm 2310
Service Weight kg 3700
