Hot Sale 3.5 Ton Diesel Forklift And Some Tires

Date: 2023-06-02 View:

 3.5 Ton Diesel Forklift And Some Tires Were Sent To Curacao

Product Parameter

 Model  FD35
 Power Type  Diesel
 Rated Capacity  3500 kg
 Load Centre  500 mm
 Lift Height  3000 mm
 Fork Size  1070*125*50 mm
 Mast Tilt Angle  6°/12°
 Front Overhang  480 mm
 Ground Clearance  135 mm
 Length to face of fork  2770 mm
 Overall Width  1225 mm
 Mast Lowered Height  2175 mm
 Mast Extended Height  4160 mm
 Overhead Guard Height  2090 mm
 Turning Radius  2480 mm
 Min.insecting aisle  2530 mm
 Front Tire  28*9-15-12PR
 Rear Tire  6.50-10-10PR
 Wheel Base  1700 mm
 Service Weight  4500 kg
 Engine Model  4JG2PE-01
 Engine Manufacture  ISUZU
 Engine Rated output  46/2450 kw
 Engine Rated torque  186.3/1600-1800 N.m
 Engine No.of Cylinder  4
 Engine Displacement  3059 cc
 Engine Fuel Tank Capacity  60 L
 Battery(Voltage/Capacity)  12V/80Ah
 Transmission Type  Hydraulic
 Engine( Bore*Stroke)  95.4*107 mm
 Max. Gradeability  20%
 Travel Speed( Empty outside)  19 km/h
 Lifting Speed (Full load)  520 mm/s
 Operating Pressure For Attachment  17.5 Mpa

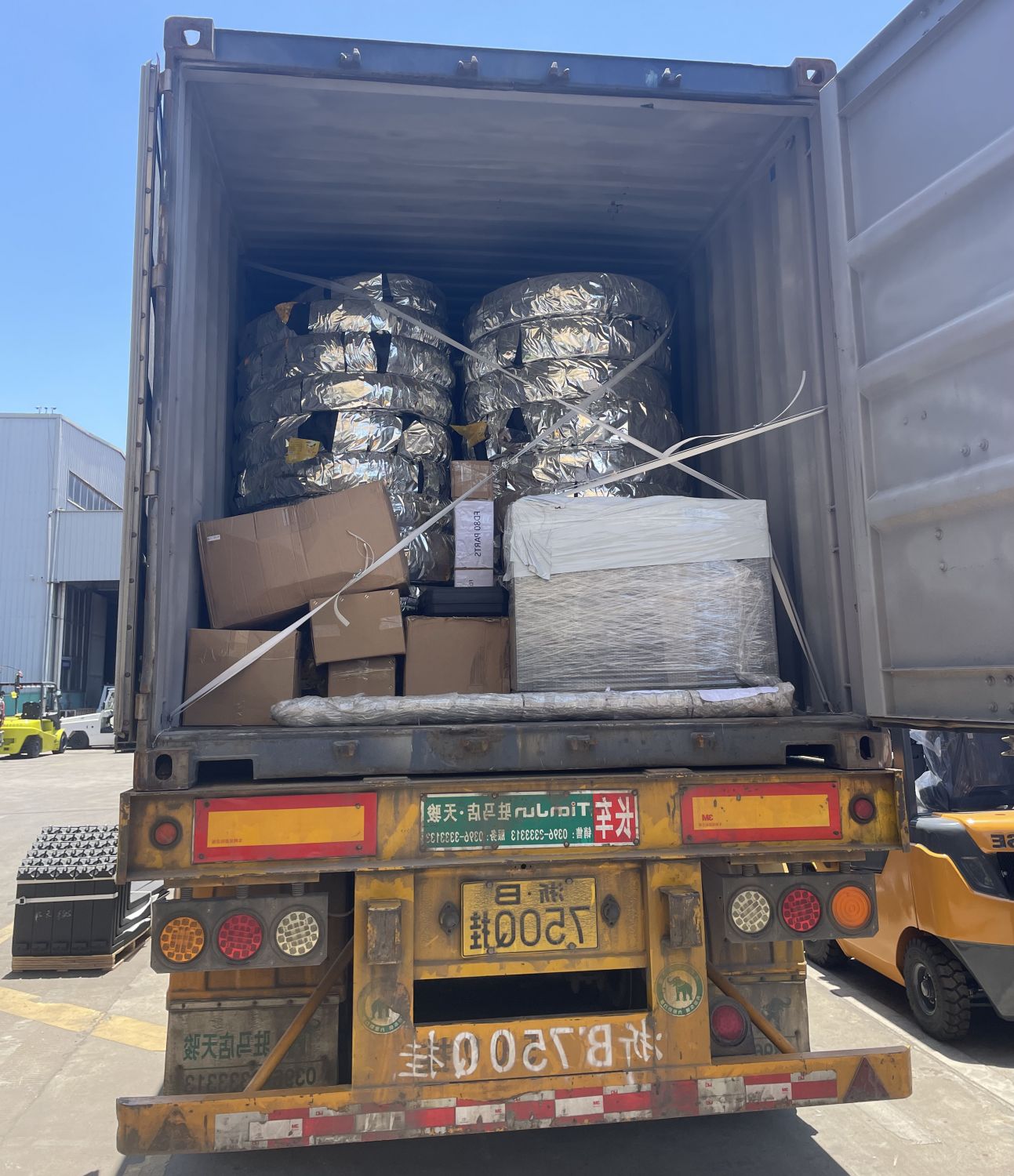

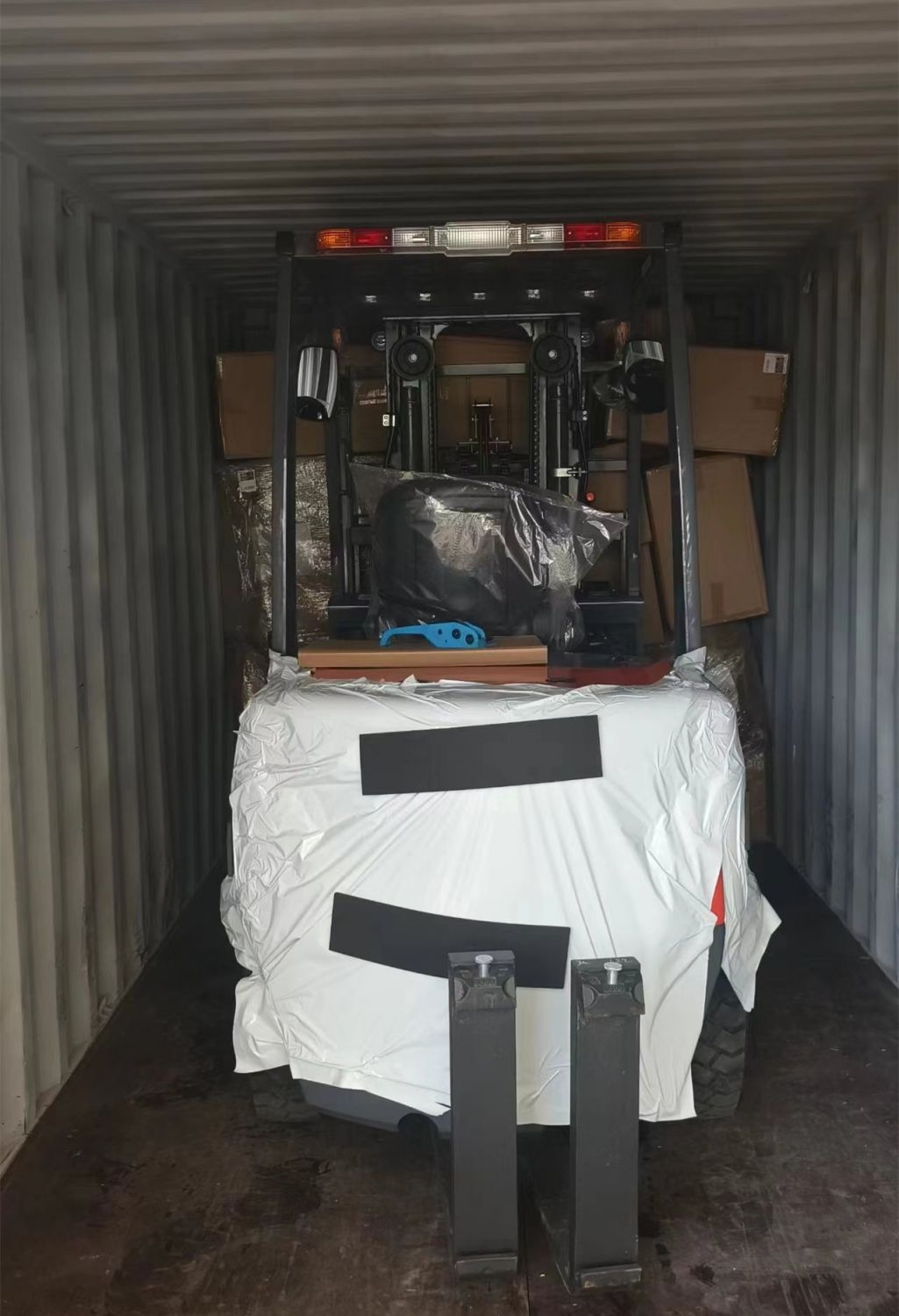

Product Transportation
