Factory Supply Load Centre 600mm Electric Man Mount Three-way Stacker with Carry Distance 435mm

Date: 2022-06-07 View:

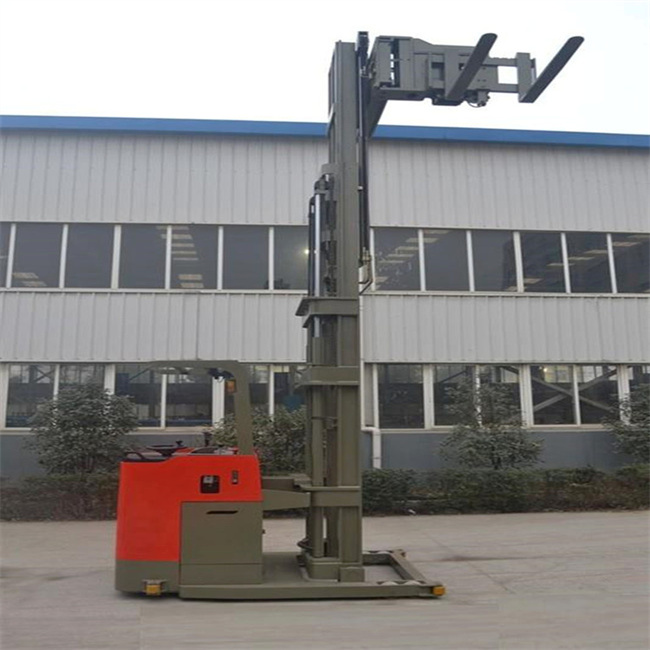

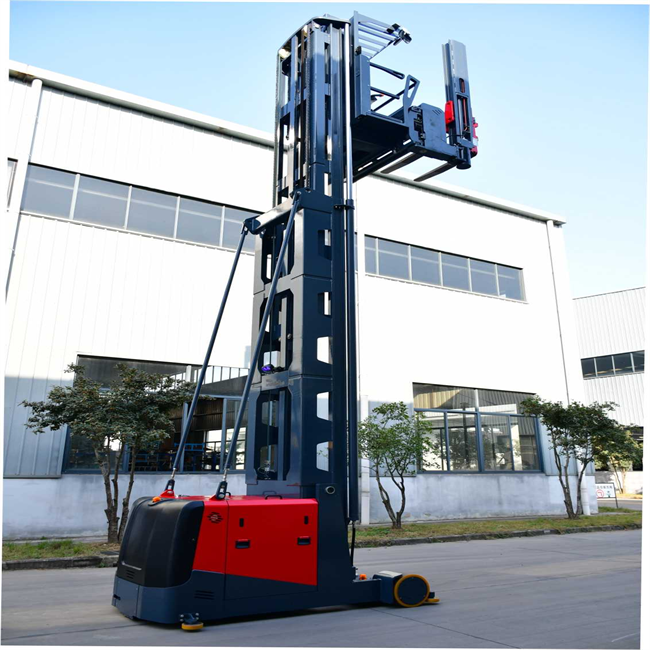

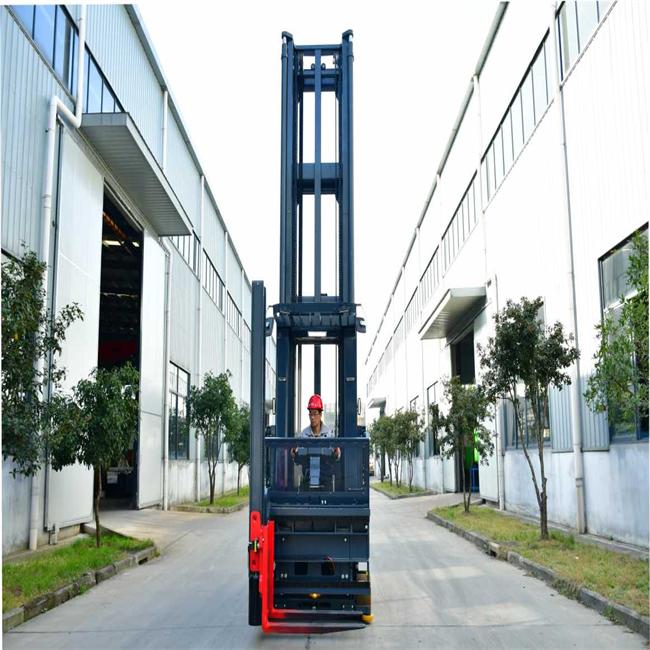

Industrial Commerical Carry Distance 435mm Man Mount Three-way Stacker with main mast lifting 4500mm

Ultra-high safety
Through the setting of the height sensor and the optimization of the hydraulic and electrical system of the whole vehicle.

Powerful Special Mast Structure
The gantry channel steel adopts imported high-strength customized steel to ensure the super high load capacity. The fork of the high-level stacking operation is less shaky,the operation is more safer.

Practical function
The driver can control and grasp all the status of the vehicle through the integrated control panel.
Support fork side shift movement, final draft lifting, main and secondary mast synchronous lifting and descending and other practical functions.
After detecting obstacles or people in front of and behind the set distance,
automatically accelerate until stopping.

Product Parameters
Driving Type
Rated Capacity kg 1600
Loading Centre mm 600
Carry Distance mm 435
Service Weight kg 7720
Wheel Type
Wheelbase mm 1950
Wheel Size(Load-bearing wheels) mm 380*192
Wheel Size(Driving  wheels) mm 480*160
Tire Quantity(Front/Driving)
Tread mm 1310
The Lowered Mast Height mm 3665
Main Mast Lifting Height mm 4500
Secondly Mast Lifting Height mm 1700
Mast Extended Height mm 7130
