FBD15 series electric pallet stacker on sale

Date: 2023-06-12 View:

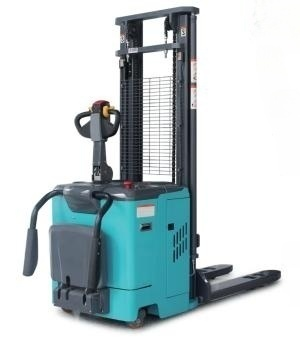

 Factory Direct 1.5 Ton Electric Pallet Stacker

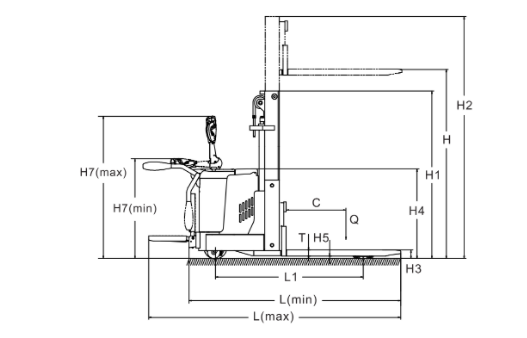

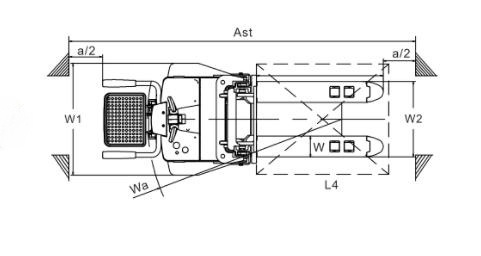

Product Parameter
 Model  FBD15
 Power Type  Electric
 Operation Type  Pedestrian
 Rated Capacity  1500 kg
 Load Center  600 mm
 Weight(with battery)  1184 kg
 Material  PU
 No.of Wheels  1X+2/4
 Drive Wheel  Ø 230*70 mm
 Load Wheel  Ø 80*70 mm
 Balance Wheel  Ø 100*50 mm
 Wheel Base  1478 mm
 Lift Height  3000 mm
 Mast Lowered Height  2090 mm
 Mast Extended Height(with backrest)  3565 mm
 Fork Size( L4*W*T)  1150*185*55 mm
 Distance between Fork Arms(outside)  570/685 mm
 Overall Length/ with Pedal  1995/2490 mm
 Overall Width  770 mm
 Overall Height  900 mm
 Mini. Ground Clearance  85 mm
 Height of tiller in drive position(max/min)  1435/983 mm
 Turning Radius  1644 mm
 Floor Clearance  27 mm
 For pallets 1000*1200 lengthways  2700 mm
 For pallets 800*1200 lengthways  2580 mm
 Travel Speed(Laden/unladen)  5.5/6 km/h
 Lifting Speed(Laden/unladen)  87/120 mm/s
 Lowering Speed(Laden/unladen)  145/105 mm/s
 Max.Gradeability(Laden/unladen)  6/10%
 Braking System  electromagnetic
 Battery(Voltage/ Capacity)  24V/180Ah
 Motor(Drive/Lift/Steer)  1.5/2.2/0.2 kW
 Controller   Curtis DC


Product Details

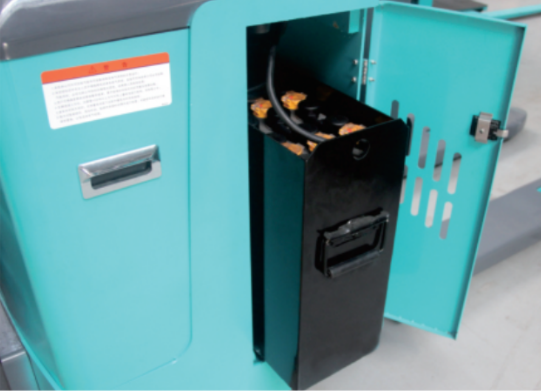

Side Pull-out Battery

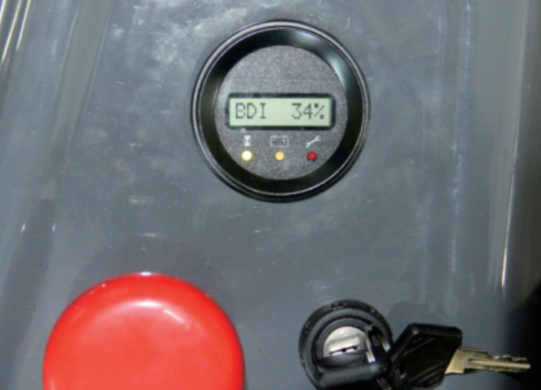

Multifunction instrument

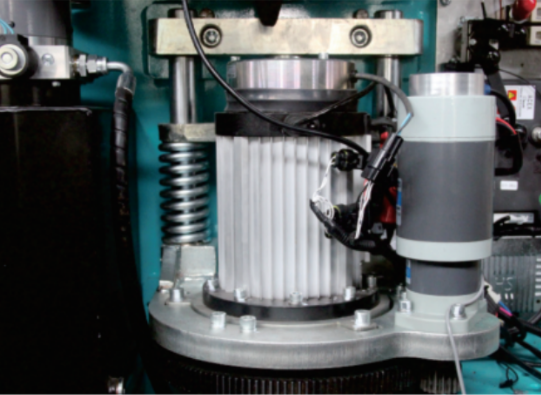

Floating Driving System

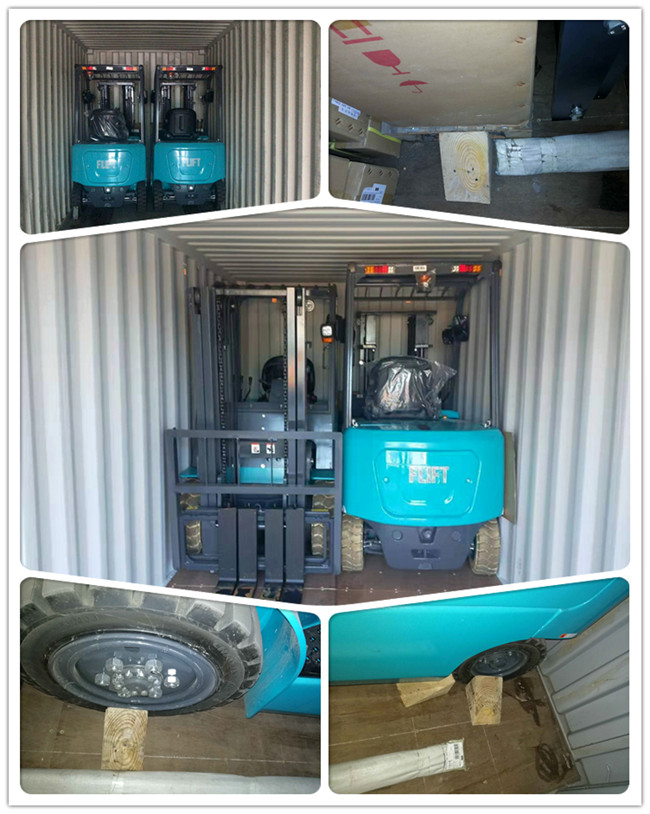

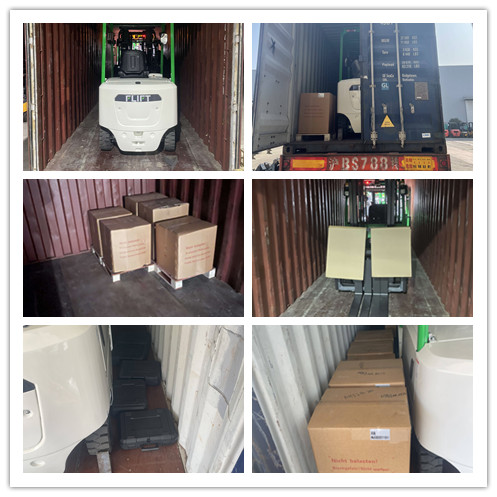

Product Transportation
