Hot Sale FBD18H Electric Pallet Stacker With Good Quality

Date: 2023-07-28 View:

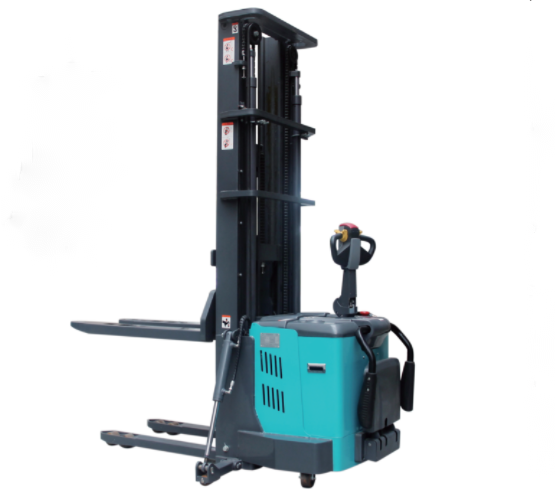

 FLIFT Brand FBD18H Electric Pallet Stacker On Sale

Producr Parameter

Model FBD18H FBD20H
Power Type Electric Electric
Operation Type Pedestrian Pedestrian
Rated Capacity 1800 kg 2000 kg
Load Center 600 mm 600 mm
Weight(with battery) 1362 kg 1386 kg
Material PU PU
No.of Wheels 1X+2/4 1x+2/4
Drive Wheel Ø 230*70 mm Ø 230*70 mm
Load Wheel Ø 80*70 mm Ø 80*70 mm
Balance Wheel Ø 100*50 mm Ø 100*50 mm
Support Wheel Ø 60*60 mm Ø 60*60 mm
Support Wheels Tread 1367 mm 1367 mm
Wheelbase 1485 mm 1485 mm
Lift Height 3000 mm 3000 mm
Mast Lowered Height 2070 mm 2070 mm
Mast Extended Height(with backrest) 3490 mm 3490 mm
Fork Size(L4*W*T) 1150*180*66 mm 1150*180*66 mm

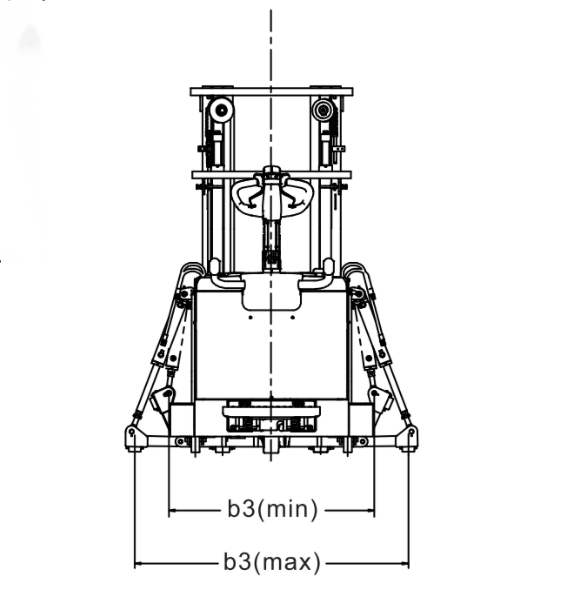

Distance between Fork Arms(outside) 570/685 mm 570/685 mm
Overall Length/with Pedal 2028/2530 mm 2028/2530 mm
Overall Width 1010 mm 1010 mm
Overall Height 900 mm 900 mm
Mini. Ground Clearance 85 mm 85 mm
Height of tiller in drive position 1435/983 mm 1435/983 mm
Turning Radius 1726 mm 1726 mm
Floor Clearance 27 mm 27 mm
For pallets 2785 mm 2785 mm
Travel Speed 5.5/6 km/h 5.5/6 km/h
Lifting Speed 90/110 mm/s 85/115 mm/s
Lowering Speed 120/107 mm/s 120/107 mm/s
Max. Gradeability 6/8% 6/8%
Braking System Electromagnetic Electromagnetic
Battery(Voltage/Capacity) 24V/240Ah 24V/240Ah


Product Details

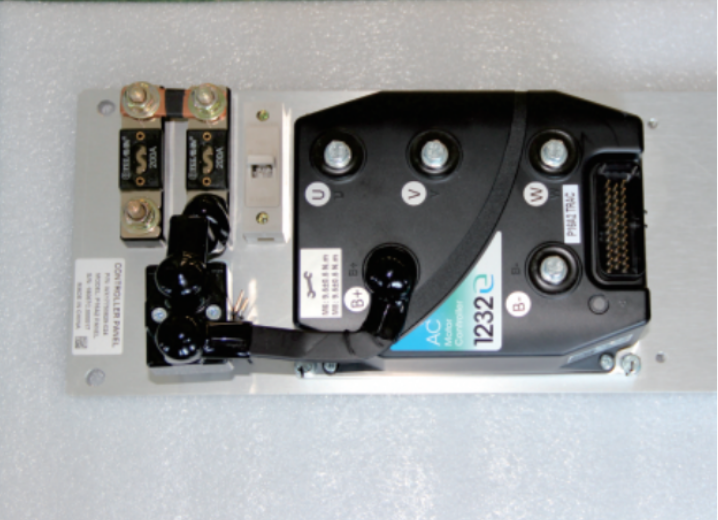

1:American Cuitis I controller

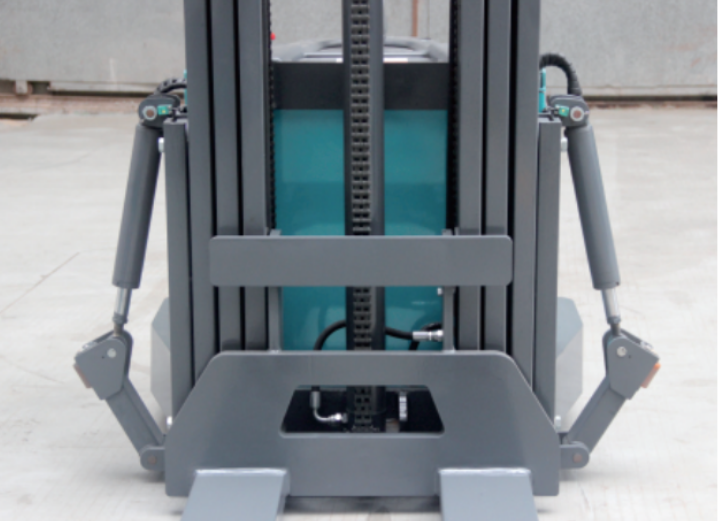

2: Extendable side cylinder

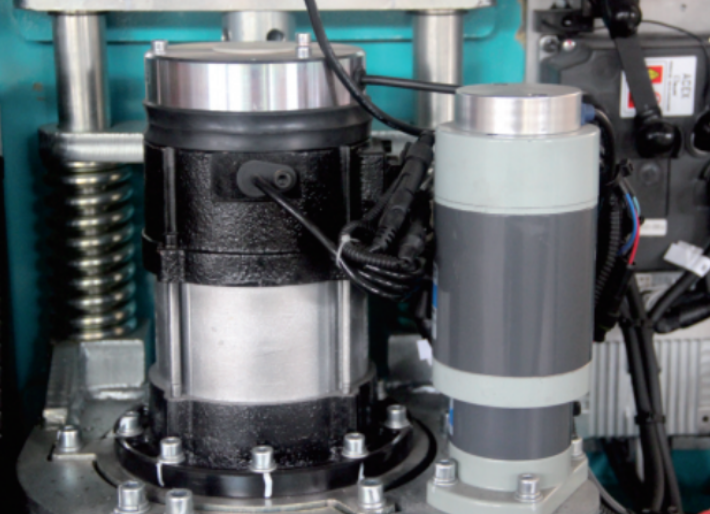

3: Vertical AC motor layout

Product Details

Hydraulic cylinder with explosion proof lock.

►Extendable side cylinder, easy operation.

►More load capacity than standard stacker at same lift height.

►Available for pallet size 1200 mm* 1000 mm and  800 mm*1000 mm.
