Hot Sale 7 Ton Telescopic Forklift With Cheap Price

Date: 2023-05-29 View:

Best Selling 7 Ton Telescopic Forklift With Low Price

Product Features

1. The static hydrostatic pilot control system is adopted, and equipped with hydraulic lifting balance feature.
It has good automatic adaptability and maneuverability; the closed plunger pump,
electronically controlled multi-way valve,hydraulic motor, hydraulic cylinder,
and electronically controlled pilot control valve all adopt well-known brands.

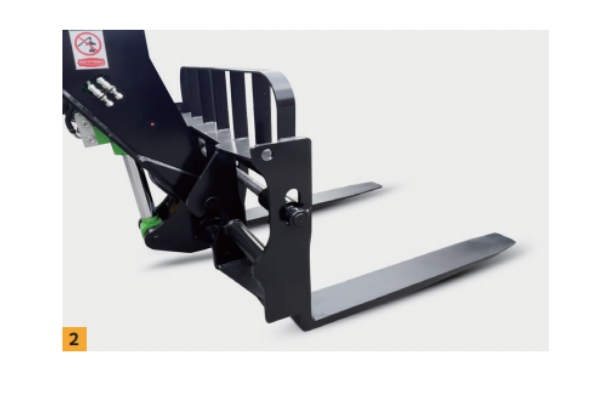

2. Equipped with cascade high-strength forks,
which are stronger and more wear-resistant, and can double the service life.

3.Equipped with off-load herringbone pattern tires,
and the front and rear axles can swing around the center,
which has good traction performance, passing performance and off-road performance.

Product Parameter

 Rated Load  7000 kg
 Load Center  500 mm
 Load Capacity  800 kg
 Max.Lifting height  16510 mm
 Max.Horizontal reach  11.8 mm
 Min.Ground clearance  425 mm
 Min.Turning radius  5757 mm
 Operating weight  17000 kg
 Wheel base  3370 mm
 Front wheel tread  2125 mm
 Rear wheel tread  2125 mm
 L*W*T  1220*150*65 mm
 DF Cummins QSB3.9-C125-30  QSB4.5-C160-30
 Rated Power  119/2200 kw/rpm
 Transmission type  Hydraulic static transmission
 Max.Traveling speed(unloaded)  25 km/h
 Gradeability  25%
 Front wheel   14.00-24-28PR
 Rear wheel  14.00-24-28PR
 Overall width  3790 mm

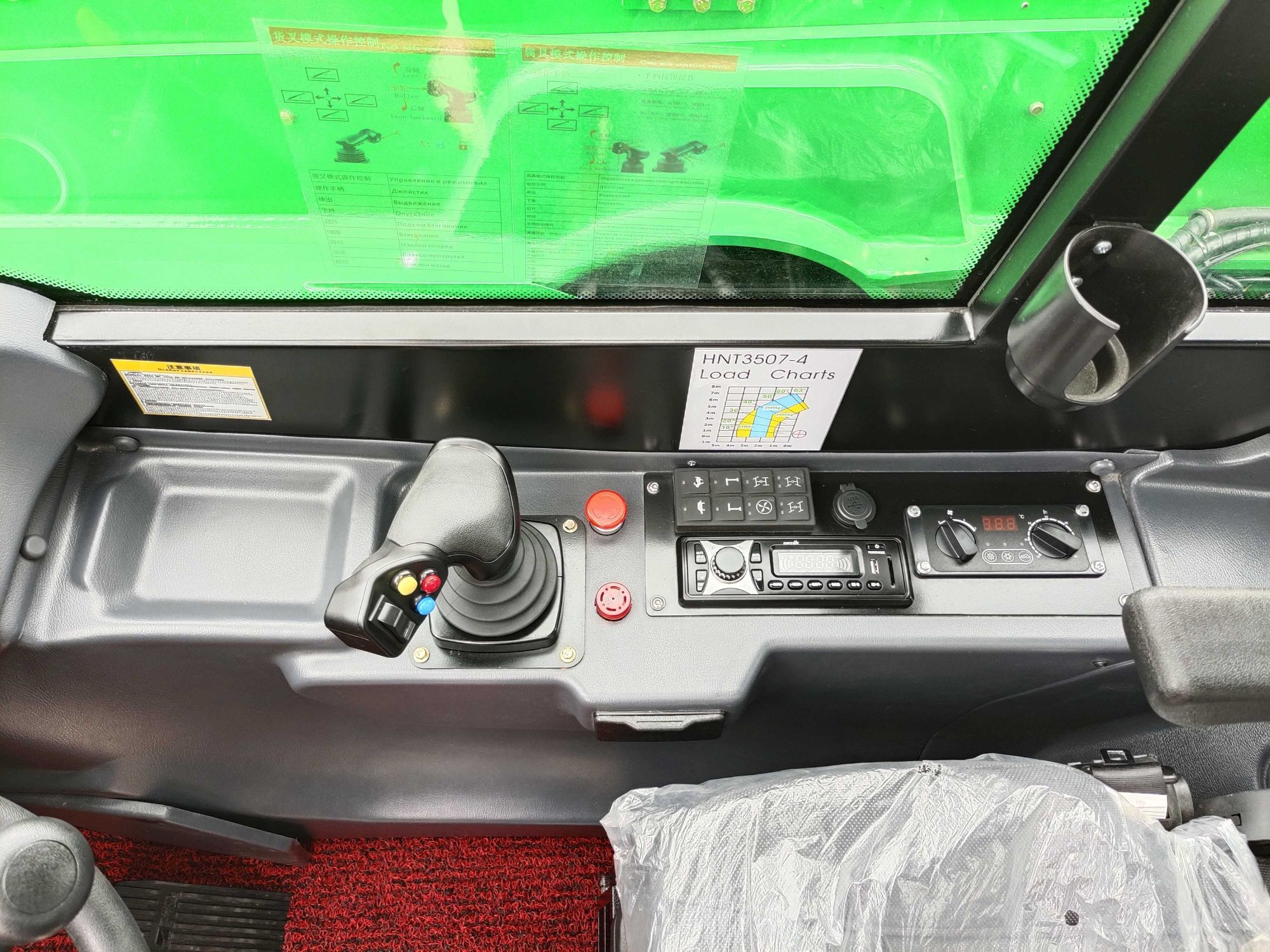

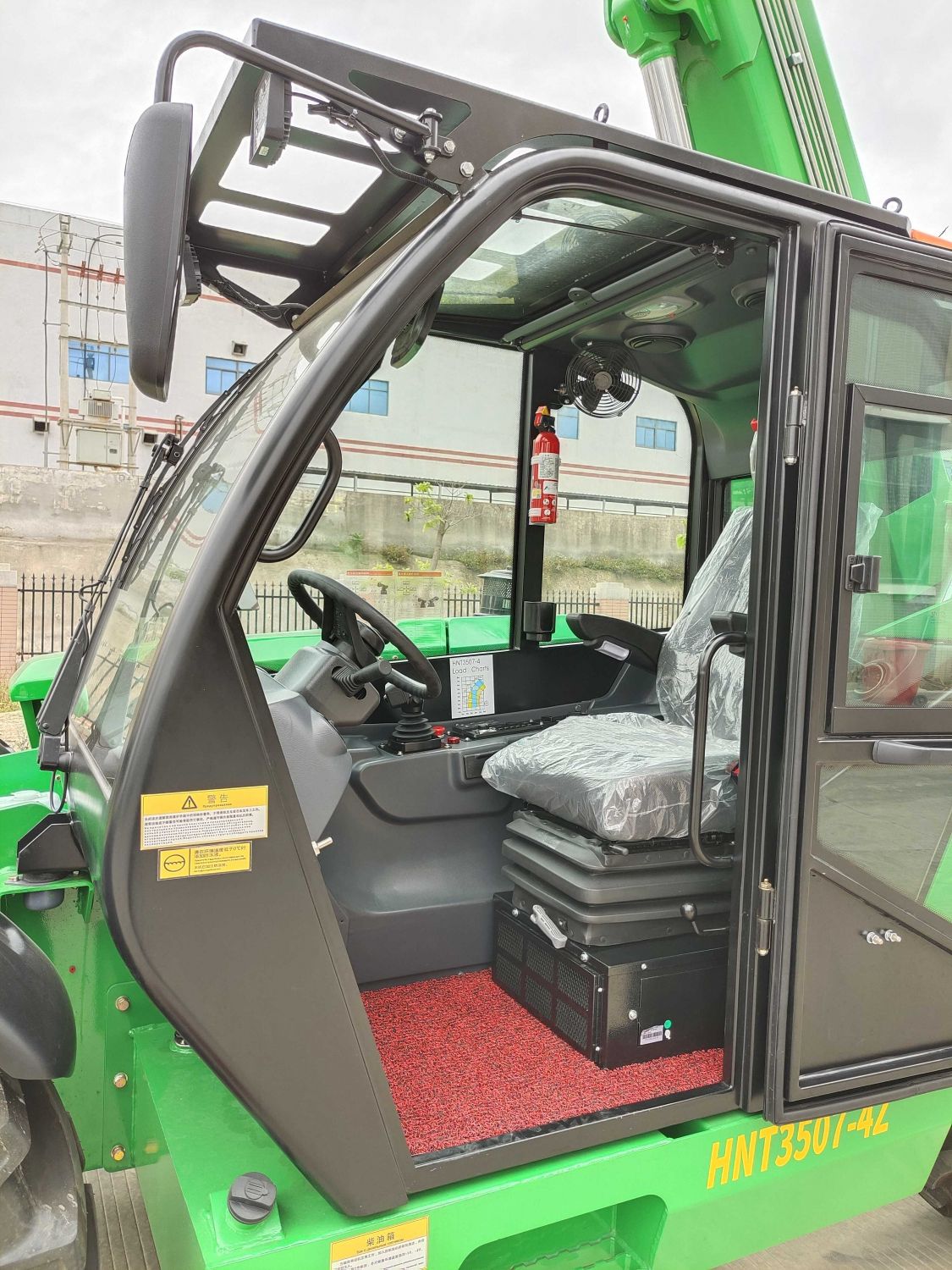

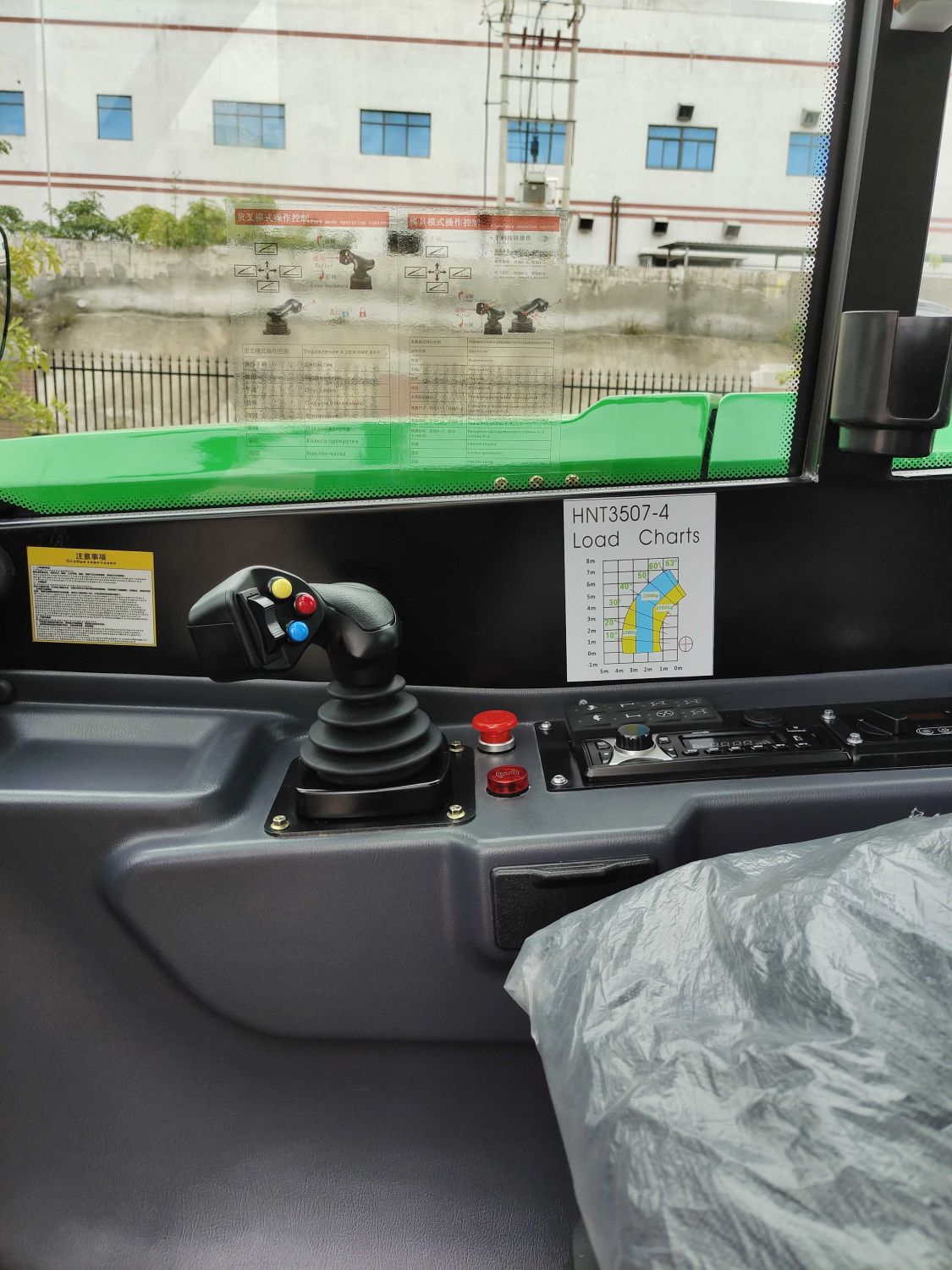

Cabin Inside Details
