Good Quality 4-wheel Rough Terrain Forklift

Date: 2023-05-26 View:

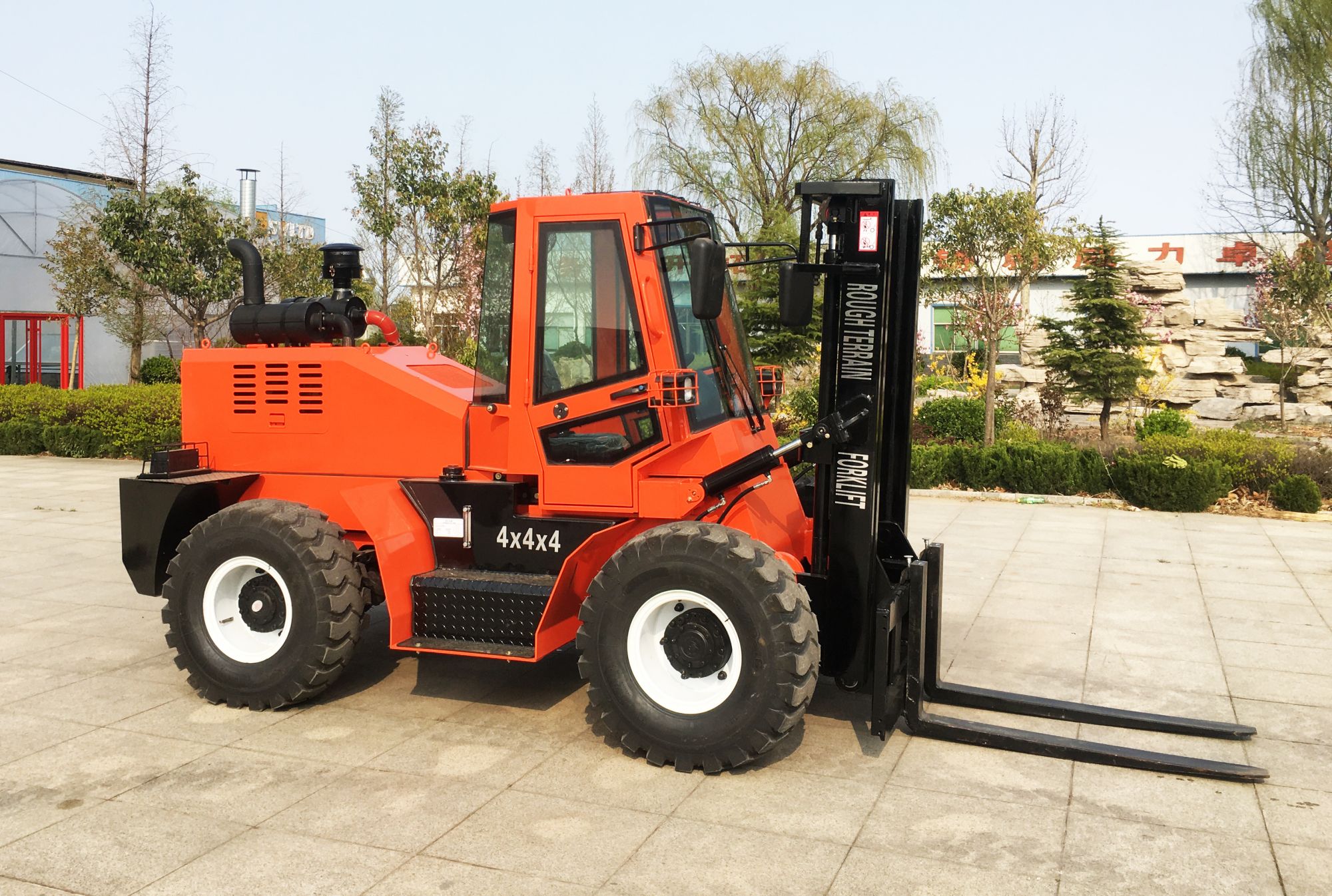

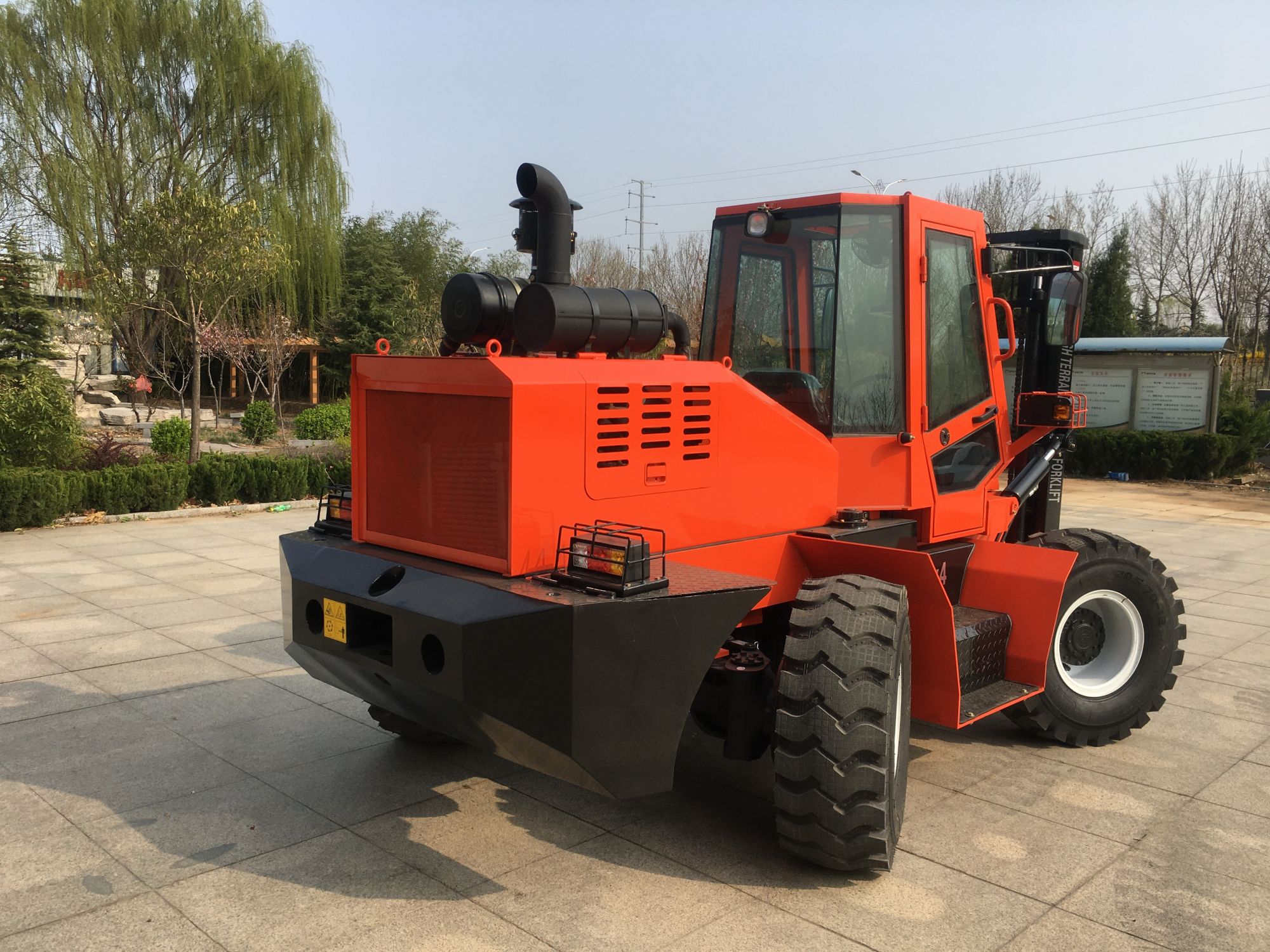

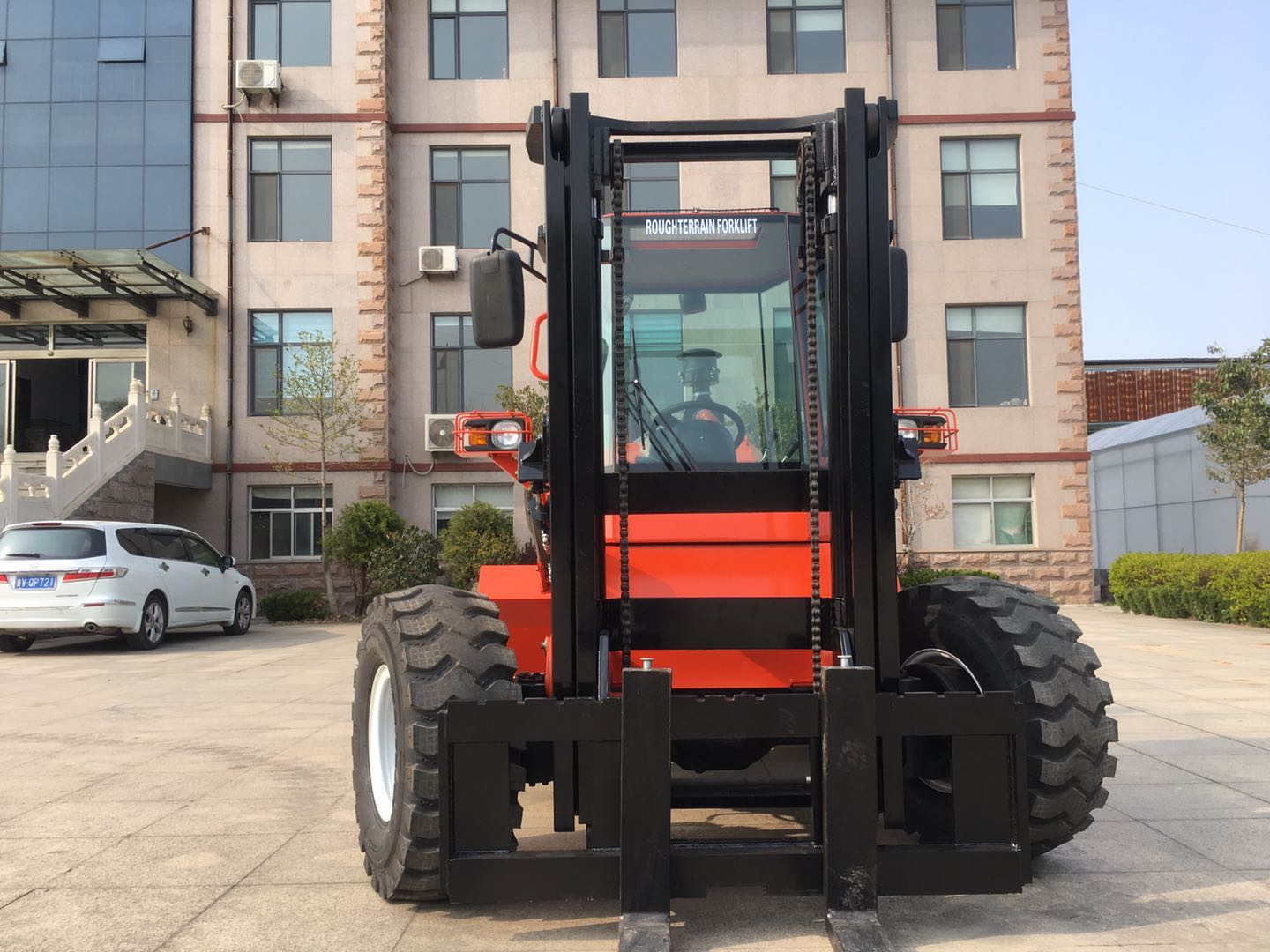

Hot Sale FLIFT 4-wheel Rough Terrain Forklift

Product Parameter

 Model  W35
 Axle base  1980 mm
 Battery Voltage/Capacity  24V(80AHX2)
 Dead weight  4500 kg
 Distance from front axle to fork face  740 mm
 Duplex mast view width  690 mm
 Fork carriage width  1780 mm
 Fork size L*W*T  1220*125*50 mm
 Ground clearance  280 mm
 Height of mast top  3720 mm
 Height of operators seat  1100 mm
 Height of overhead ground  2250 mm
 Length to fork face  3700mm
 Lifting Height  3000 mm
 Load Center  500 mm
 Mast tilt total  13/22
 Mast width  1055 mm
 Max.Gradeability(Laden)%  22%
 Maximum width of machine  2100 mm
 Rated Load  3500 kg
 Standard engine  Chinese 53kw
 Transmission  Automatic 2F/2R
 Tyires  20.5/70-16

Product Advantages

Efficiency and Cost
Reducing cost of ownership, saves you time, fuel,manpower and yard loading space.
The all wheel steering and all wheel drive forklift potential to replace several machines.

Yanmar &Cummins In Option

Yanmar Novel CAE technologies were used to obtain the best muffler volumes
and sound proofing materials, has made forklift noise more lower.
Indirect Injection engine, clean exhaust.
Can meet the requirements of European III&EPAIII emission regulations.

High torque transmission: Max. drive speed 23 km/H
High speed transmission: speed 33km/H
