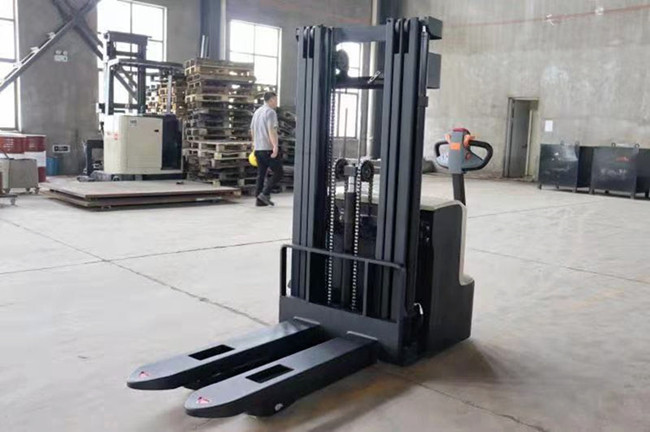

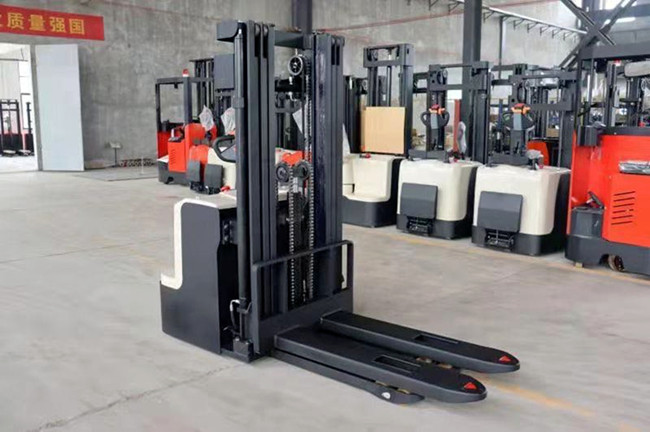

FLIFT Walking 2 Ton Electric Pallet Stacker With Charger Battery Small Space Use

Date: 2022-03-02 View:

 Hot Sale FLIFT 2000kg Walkie Electric Pallet Stacker Customized Lifting Height


FLIFT electric pallet stacker advantage:
1. AC drive motor, strong climbing force;
2. High-strength fork legs and forks;


3. Special gantry channel steel for high-strength forklifts;
4. Large capacity maintenance-free battery;


5. Built-in smart charger;
6. Multi-function integration, special operation handle for narrow channel;
7. Low noise lifting hydraulic pump.


FLIFT electric pallet stacker safety:
1. Drive stepless speed regulation, safety, mute;
2. The controller has multiple automatic protection systems;


3. Emergency reverse collision avoidance device, emergency power off switch;
4. Automatic deceleration in corners.

FLIFT 2.0 ton electric pallet stacker specification
Model
CDD20D-30
Rated load kg 2000
Load Center mm 500
Operation mode
Walkie
Fork size (L*W*T) mm 1150*190*65
Fork side outer distance mm 680/560
Overall length mm 2030
Overall width mm 850
Mast Lowered Height mm 2080
Lifting height mm 3000
Mast Extended Height mm 3565
Turning radius mm 1645
Minimum stacking channel 1200*1000mm pallet 2515
Ground clearance mm 85
Travel speed km/h 4.0/ 5.0
Lifting speed mm/s 80/125
Max. Gradeability % 6/10
Service weight kg 850
Battery voltage/capacity V/Ah 24/100
Lifting motor kw 2.2/3

FLIFT forklifts CE approved:
