FLIFT brand CE Certification widely used in factory 1.5 ton LPG forklift truck

Date: 2022-02-18 View: 57

 FLIFT new design 1.5 ton LPG forklift truck


High quality 1.5 ton with Japan Nissan K21 engine LPG forklift truck.


Powerful engine, meet general working hours requirements.


Wide-view mast design, providing superior vision, making the operation more security.

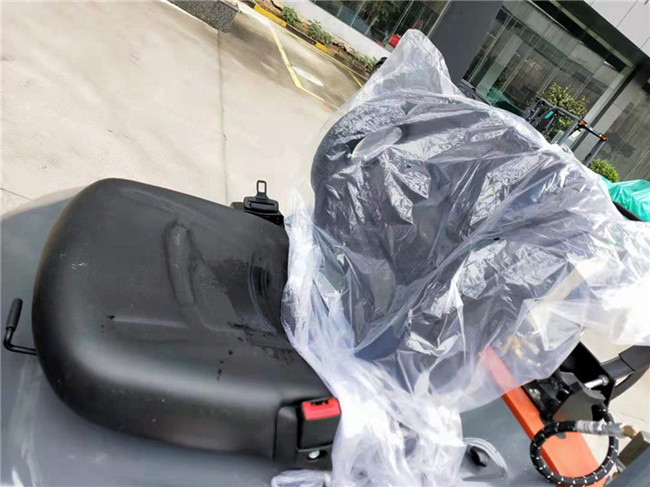

Adjustable safety seat, designed according to ergonomic principles, makes operation much comfortable.



Standard 2-stage 3 meters mast, could be optional as your request.

FLIFT 1.5 ton LPG forklift specification
Model
FY15
Rated Capacity kg 1500
Load Centre mm 500
Lift Height mm 3000
Fork Size (L*W*T) mm 920×120×35
Mast Tilt Angle (F/R) Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 420
Ground Clearance (Bottom of mast) mm 110
Length to face of fork(Without fork) mm 2295
Overall Width mm 1086
Mast Lowered Height mm 1995
Mast Extended Height(With backrest) mm 3940
Overall Guard Height mm 2040
Turning Radius(outside) mm 2055
Min. insecting aisle mm 2150
Travel speed (Empty load) km/h 15
Lifting speed (Full load) mm/s 450
Max. Gradeability % 20
Front tire
6.50-10-10PR
Rear tire
5.00-8-10PR
Wheel Base mm 1400
Service Weight kg 2820
Battery Voltage/Capacity V/Ah 12/80
Engine model
K21
Manufacture
NISSAN
Rated output/r.p.m. kw 31.2/2250
Rated torque/r.p.m. N·m 143.7/1600
No. of Cylinder
4
Bore×Stroke mm 89*83
Displacemaent cc 2065
Fuel Tank Capacity L 45
Transmission
Hydraulic
Operating Pressure for Attachment Mpa 14.5

FLIFT forklift CE approved:

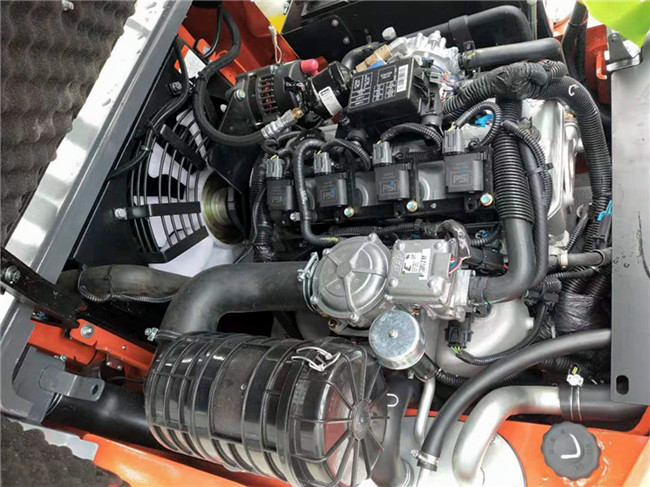

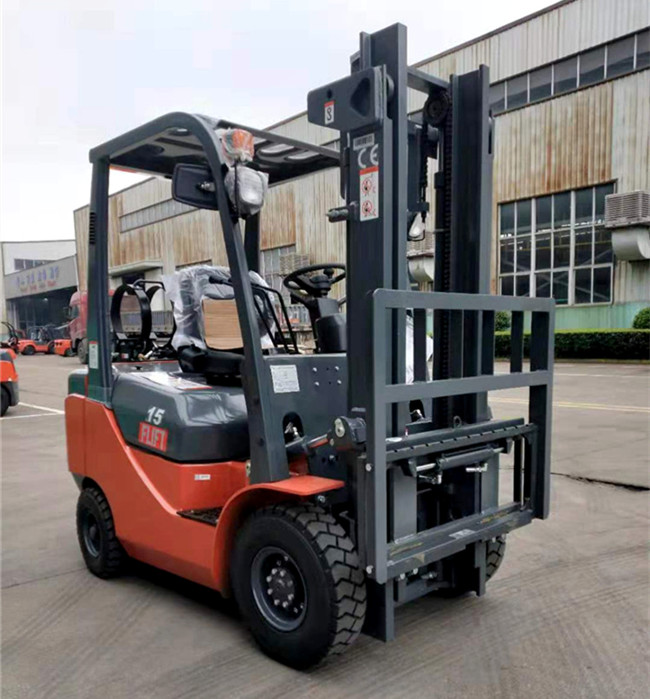

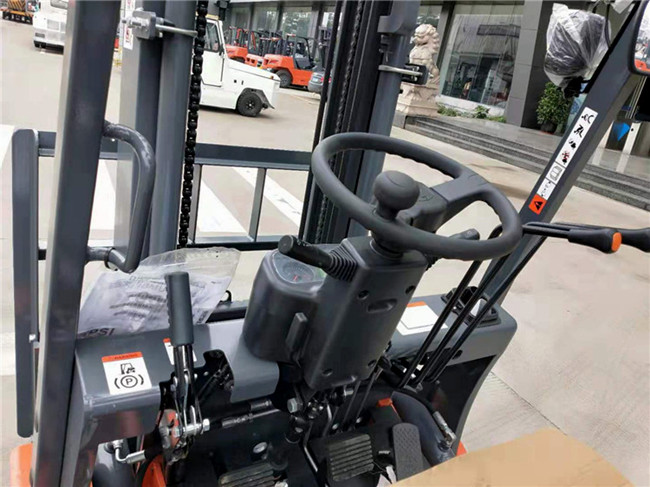

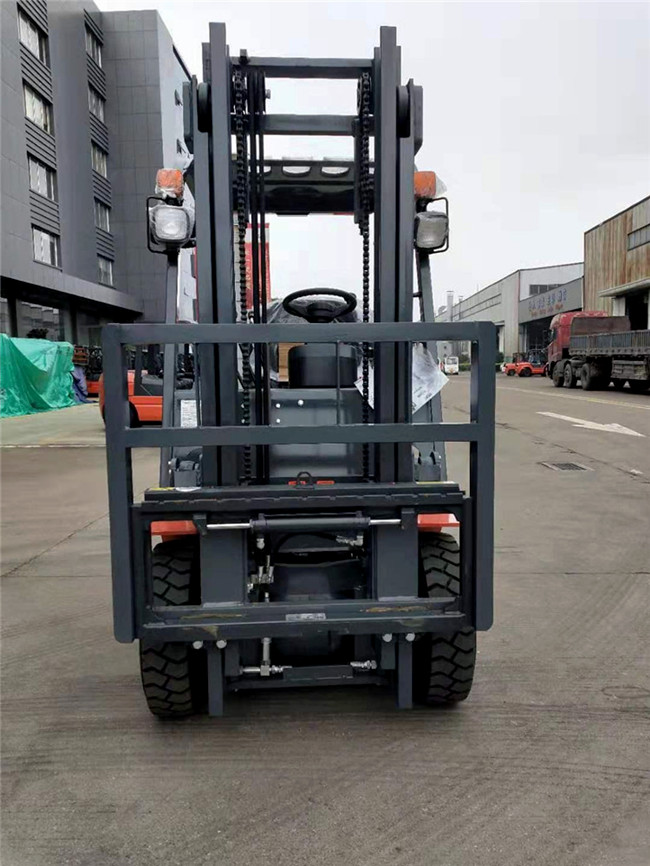

FLIFT LPG forklift showing:
