New condition FLIFT brand 12 ton capacity biggest electric forklift truck

Date: 2022-02-21 View: 15

FLIFT CE approved biggest rated capacity 12 ton electric forklift truck

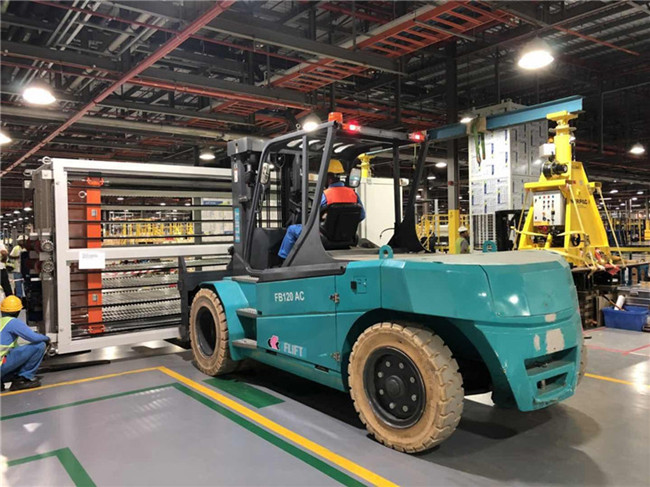

FLIFT brand 12 ton electric forklift model FB120 at the worksite in Malaysia.


12 ton rated capacity electric forklift is the biggest electric forklift.


we are only one enterprise which could manufacture the 12ton electric and 10ton lithium electric forklift in china, we lead the way in the electric patent technologies.


FLIFT 12 ton electric forklift arrived Malaysia flawless and perfect.

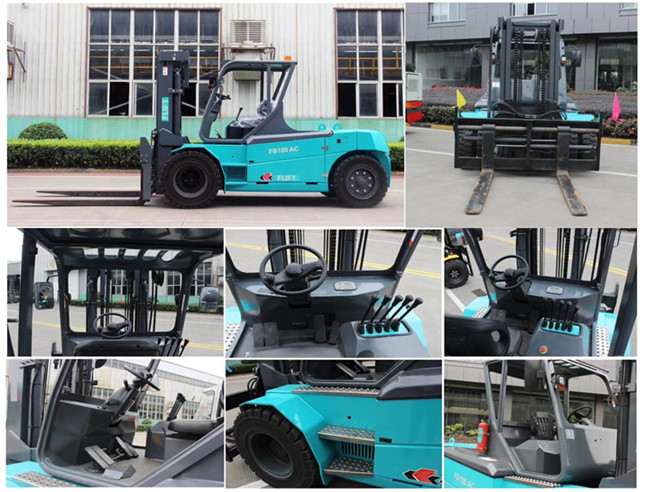

FLIFT 12 ton electric forklift specification
Model
FB120
Rated Capacity kg 12000
Load Centre mm 600
Lift Height mm 3000
Fork Size (L*W*T) mm 1520*180*100
Mast Tilt Angle (F/R) Deg 6°/10°
Front Overhang (Wheel Center to fork face) mm 750
Tread (F/R) mm 1650/1700
Ground Clearance (Bottom of mast) mm 210
Fork Spread (Min./Max.)
515/2055
Length to face of fork(Without fork) mm 4480
Overall Width mm 2270
Mast Lowered Height mm 2810
Mast Extended Height(With backrest) mm 4550
Overall Guard Height mm 2650
Turning Radius(outside) mm 3850
Min. insecting aisle mm 3200
Travel speed (Empty load) km/h 15
Lifting speed (Full load) mm/s 220
Max. Gradeability % 10
Front tire
9.00-20
Rear tire
8.25-20
Wheel Base mm 2850
Service Weight kg 16910
Drive Motor
2*20(SCHABMULLER)
Lift Motor
2*28(SCHABMULLER)
Battery Voltage/Capacity V/Ah 96/1200
Controller Manufacturer
CURTIS
Type
AC
Operating Pressure for Attachment Mpa 17.5

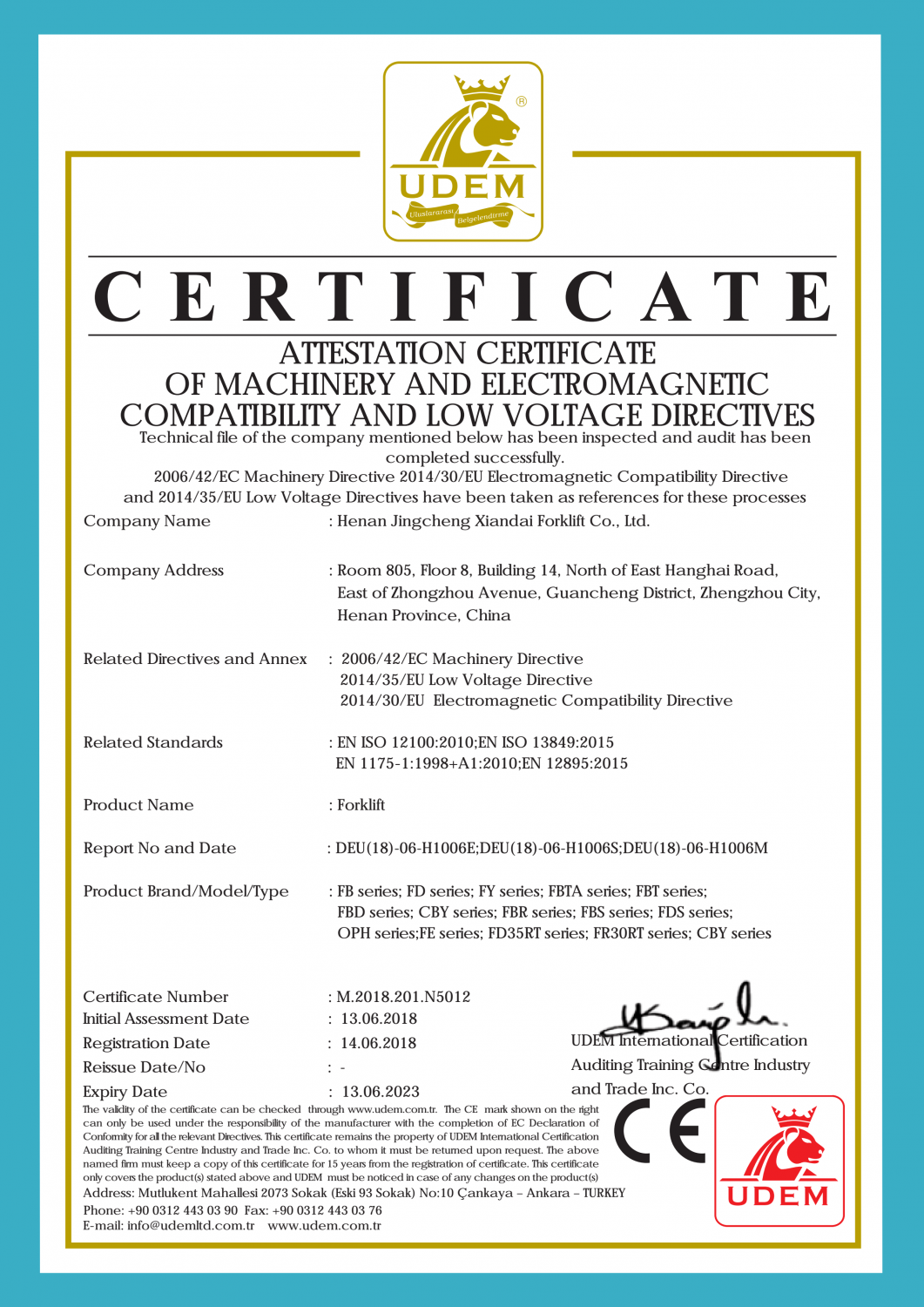

FLIFT forklift CE approved:

FLIFT 12 ton electric forklift working video:
