5 Ton Industrial Diesel Forklift Dual Front Tires Load Capacity and Engine Choices

The 5t diesel forklift service weight is 6760kg, if add the dual front solid tires, will increase to 7350kg, if choose the pneumatic tires, will increase to 7000kg.

Can we euqip with EU-V engine for this 5t diesel forklift?

No problem,we can euqip with the imported Italy FIAT brand Engine, engine model:F28, Engine power:55kw/2500r.p.m.,
as well as the optional high quality and cost performance  Chinese Yuchai brand engine with 55.8kw power.
Engine model：YCF3675-S580.

What’s the mast lowered height of the 5T diesel forklift with a 5 m mast?

The mast lowered height of the 5 ton diesel forklift with a 5 m mast is 2435 mm,

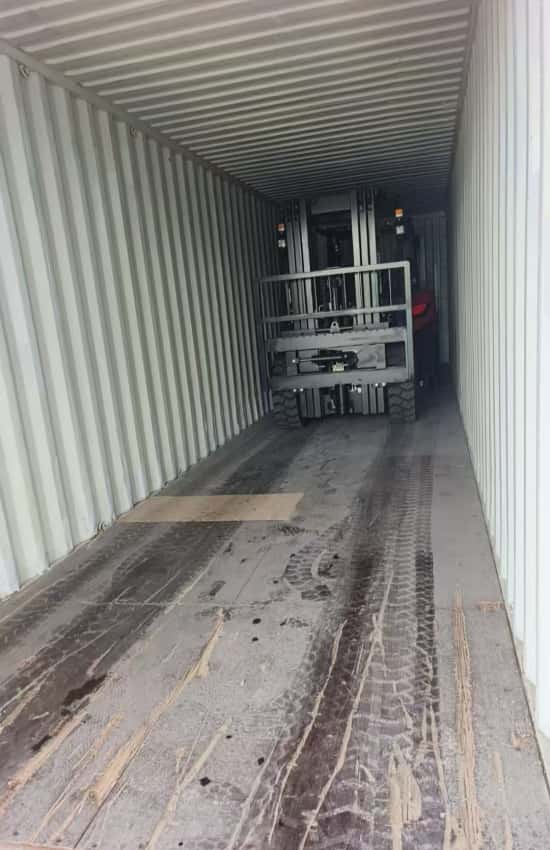

allowing it to easily drive into a standard 40HC container for loading and transport.



What’s the width of the 5t diesel forklift with dual front tires?

The 5t forklift standard overall width is 1430mm, after we installed the customized dual front tires , the maximal width become 1935mm.

What’s the maximum load capacity of 1000lb forklift at the 5m height？

For the different mast type , the load capacity is different correspondingly. Use the standard 2 stage mast, when we lift 5m height, the rated load capacity is 3900kg.
Use the 3 stage mast, so called triplex mast, the rated laod capacity is 3800kg. Morover, if add the customized dual front tires, the 5t forklift load capacity increase 400kg extrally.

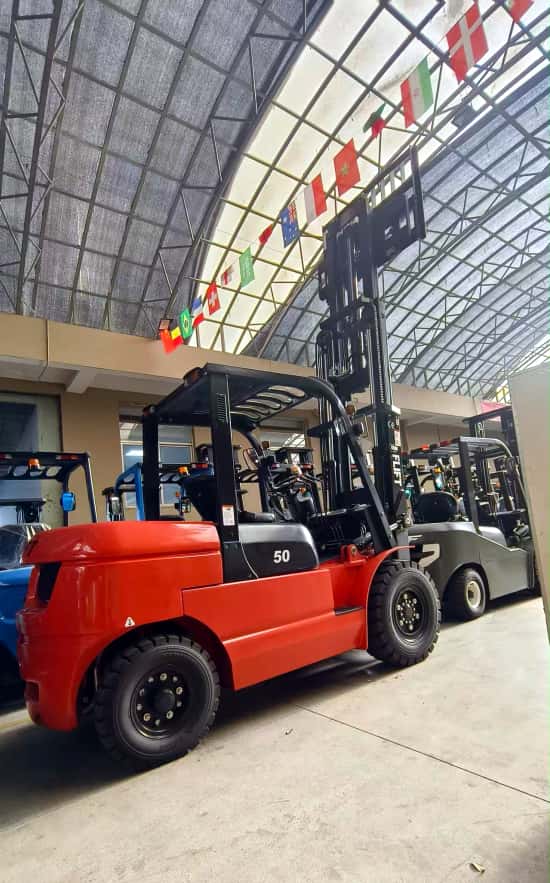

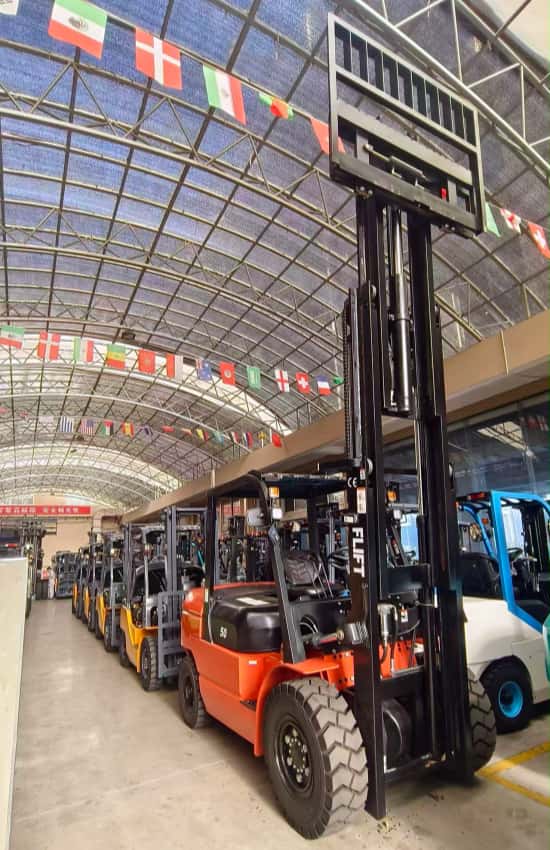

 FLIFT 5 ton diesel forklift for sale
