FLIFT 2 ton electric reach stacker high quality cheap price

Date: 2022-02-11 View:

Made in China FLIFT brand 2 ton electric reach stacker price


FLIFT seated electric reach stacker internationally advanced joints, hoses and imported seals, and reasonable hose layout ensure the cooling, sealing, durability, safety and high efficiency of the hydraulic system of the whole machine.



The design of detachable battery makes its convenience for the users' self-maintenance and replacement of the battery.

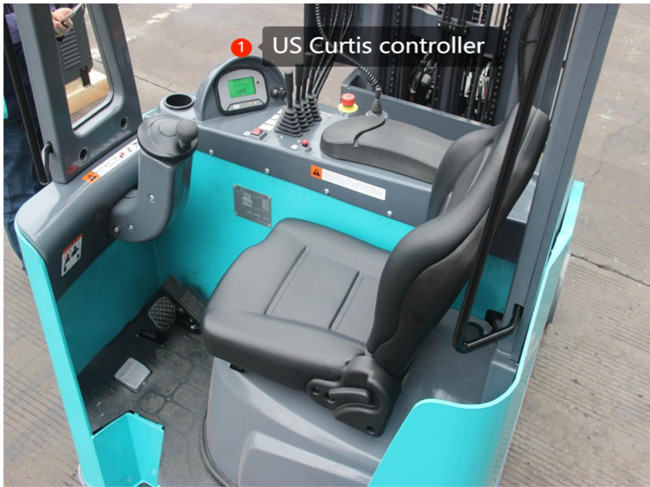

Comfort and safe opration area, with high quality imported controler.


FLIFT 2 ton seated electric reach stacker specification
Model
FBR20
Operator Type
Seated
Rated Capacity kg 2000
Load Centre mm 500
Weight(with battery) kg 3100
Lift Height mm 3000-8000
Mast Lowered Height mm 2080
Mast Extended Height(with LBR) mm 4032-9072
Mast Tilt Angle(F/R) Deg 2/4
Fork Size(L*W*T) mm 1070*120*40
Fork Space(outside) mm 240-800
Reach Distance mm 600
Front Overhang mm 280
Overall length(without fork) mm 2095/3206
Overall Width(chasis) mm 1320
Overhead Guard Height mm 2157
Seat Surface to Overhead Guard mm 1025
Turning Radius mm 1880
Mini. Ground Clearence(mast) mm 80
For pallets 1000*1000 lengthways mm 2080
For pallets 1200*1200 lengthways mm 2180
Travel Speed(Loaded/Unloaded) km/h 9/10
Lifting Speed(Loaded/Unloaded) mm/s 280/300
Lowing Speed(Loaded/Unloaded) mm/s ≤450/≥320
Max.Gradeability(Loaded/Unloaded) % 12
Service Brake
Electromagnetic
Material
PU

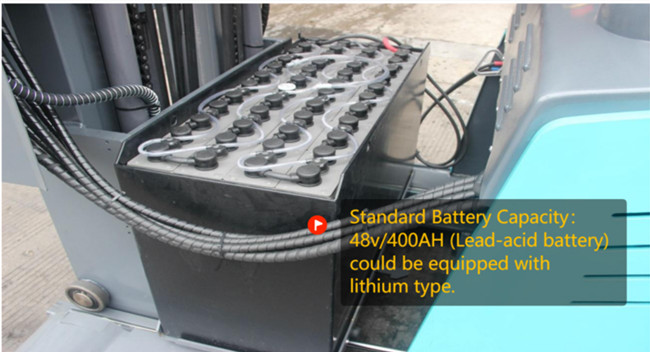

Battery(Voltage/Capacity) V/Ah 48/400
Battery Compartment Size) mm 1000*400*600
Controller
Curtis AC

FLIFT forklift CE approved:
