The following content are our pallet stacker main configurations,
then we will introduce some detail knowledge points about pallet stacker.

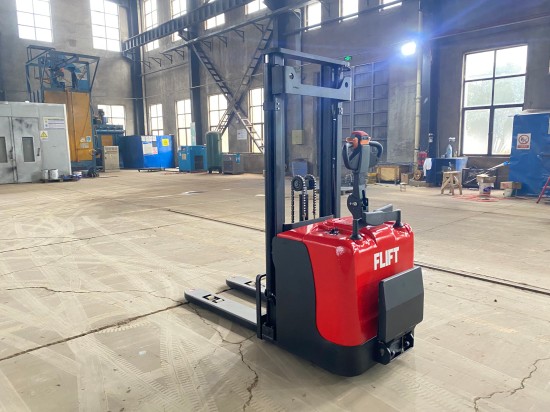

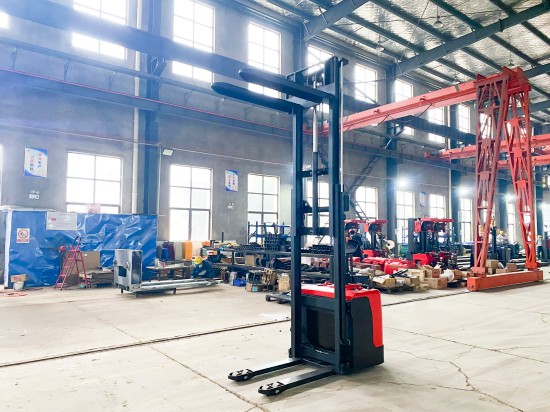

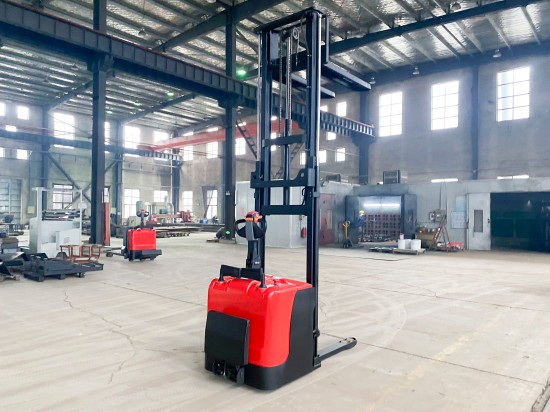

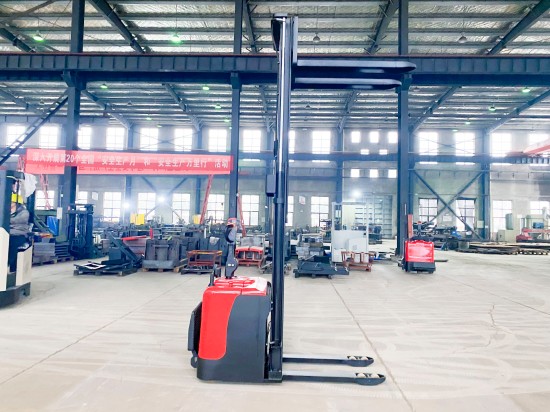

FLIFT 2ton straddle pallet stacker series

Rated lift capacity: 2000kg
Lift height:2000mm-4000mm
Fork length: 960mm-1220mm
Mast Type: 2 stage mast with the dual lift cylinders design.
Battery capacity: 24v/120ah, the 210ah is optional.
Battery type: Lead-Acid battery.
Drive motor: 1.5kw,  Motor type: AC
Steering Mode: Electronic Steering.
Operation Mode: Standing or pedestrian

Does the dual lift cylinder design improve operator safety?
Yes.  Improved mast stability and controlled lifting motion help:
Reduce the risk of load imbalance or sudden drops.Enhance visibility and operational confidence and Lower the likelihood of workplace accidents.
This makes the electric stacker safer for operators in narrow aisles and high-density storage environments.

Is the dual lift cylinder design standard or optional?
The dual lift cylinder design is a standard configuration on our electric stackers, reflecting our FLIFT Forklift commitment to higher safety standards,
stronger lifting performance, and long-term equipment reliability.

In the above configurations u mentioned that your FLIFT pallet stacker equiped with the electronic steering,
what’s the electronic steering? And could i know the advantages?
Electronic steering is an electrically assisted steering system that replaces traditional mechanical or hydraulic steering mechanisms.
In a FLIFT electric pallet stacker, steering input from the operator is transmitted electronically to a steering motor, which controls wheel direction precisely and smoothly.
Unlike conventional steering systems that rely on physical force or hydraulic pressure, electronic steering uses sensors, controllers, and electric motors to achieve fast, accurate, and low-effort steering.

Moreover, if equip with this device , the pallet stacker motors have to be AC type.





The advantages of the electronic sterring system.
Electronic steering systems provide instant and precise steering response, improving maneuverability in the narrow aisles and high-density storage areas.
With smoother steering and predictable response, electronic steering helps Prevent sudden directional changes and reduce steering overcorrection. As well as Improve vehicle stability during turns.
Improved Ergonomics,reducing wrist, arm, and shoulder strain. Better operator comfort and compliance with modern ergonomic standards.

What’s the gradeability of your FLIFT pallet stacker?
In the condition of the fully laden can reach the 3%, on the contrary, can reach 5%.

Can we select the bigger battery capacity for the pallet stacker?
Yes, we standardly equip with 120ah battery capacity.  the 210ah is optional , which can cater to the 8 working hours constantly. In addition, we both meet the optional lithium- iron battery.

 How many units of the 2-ton electric pallet stacker can be loaded into a 20GP container?
A standard 20GP (20-foot General Purpose) container can load up to 8 units of FLIFT 2-ton electric pallet stackers.



2ton electric pallet stacker specifications

2t fully electric straddle pallet stacker specifications

2t-fully-electric-straddle-pallet-stacker-specifications.pdf (96.9KB)
