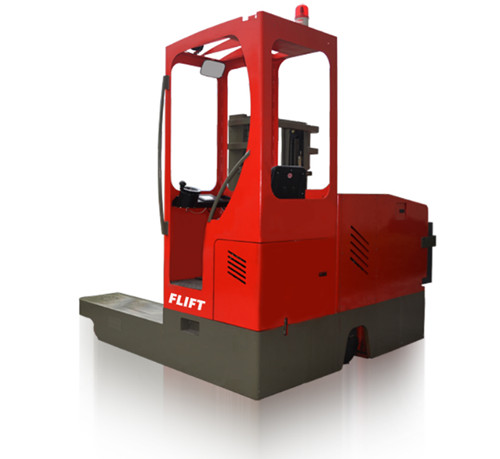

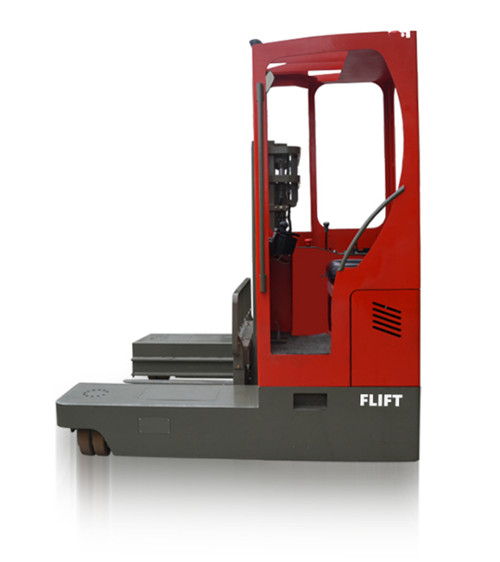

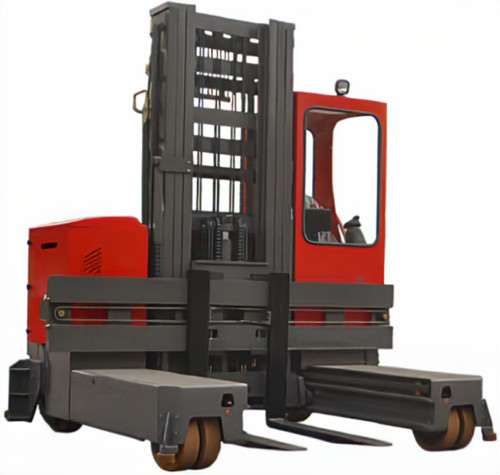

FLIFT brand AC-Sit-Down Multi-directional 4 ton electric forklift for narrow aisle used in warehouse factories

Date: 2022-02-22 View: 2

 Long material handling FLIFT 4 ton cheap price seated type Multi-direction electric forklift truck


FLIFT Brand TFC40 series forklift is a universal forklift used for the handling and stacking of long materials and goods.

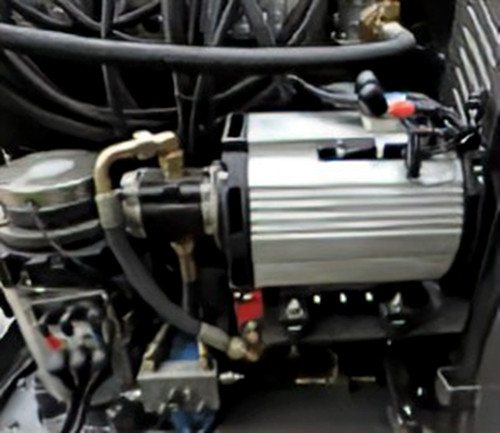

The maintenance-free AC drive system enables the vehicle to respond more quickly and accurately.

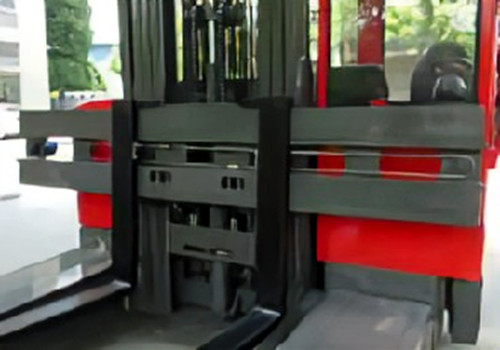

The ultra-wide fork frame and fork pitch adjustment function make the truck suitable for long material handling with different needs.

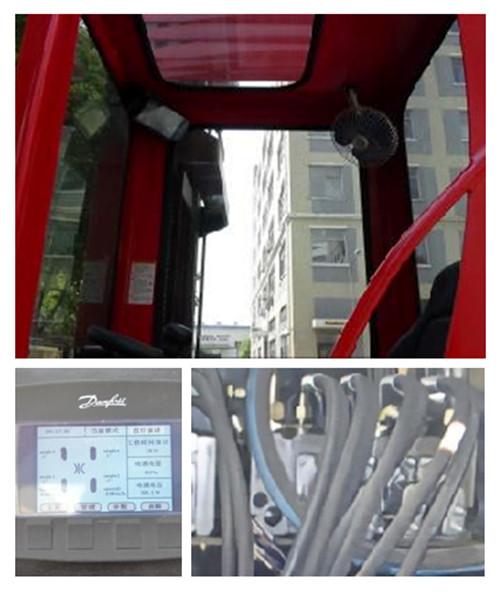

Imported integrated handle, diverse functions and comfortable operation.


The cab designed according to ergonomics provides a large operating space and an excellent all-round vision.


The precise and powerful proportional hydraulic oil circuit design ensures the coordination and stability of the whole vehicle.



FLIFT 4 ton multi directional electric forklift specification
Manufacturer
FLIFT
Model
TFC40
Power type
Battery
Driving style
Seated
Rated load Capacity kg 4000
Load center distance mm 600
Front overhang mm 318
Wheelbase mm 1800
Vehicle weight (including battery) kg 8100
Tyre type, drive side/load side mm PU
Tire size, load-bearing side mm φ377×110(dual wheels)
Tire size, drive side mm φ457×160
Number of wheels, front/rear (x=driving wheels) mm 4/2X
Wheel base, drive side mm 1986
Wheel base, load-bearing side mm 1959
Mast tilt range, front/rear α/β(°) 3/5
Mast Lowered height mm 3290
Free lift height mm 2050
Lifting height mm 6000
Maximum height of mast when lifting mm 7230
Height of overhead guard mm 2670
Seat height mm 1375
Vehicle length mm 515
Length to fork surface mm 2300
Vehicle width mm 2960
Fork size l/e/s(mm) 1200/150/50
Fork frame width mm 2960
Outer distance of fork mm 560-2900
Inner leg distance mm 1340
Forward distance mm 1300
Ground clearance of mast (without camera) mm 150
Driving speed, full/unloaded km/h 7.8/9.0
Lifting speed, full/unloaded mm/s 170/220
Maximum climbing ability in straight travel, full/unloaded (S2-5min) %(tanθ) 8/10
Maximum climbing ability on sidewalk, full/no load (S2-5min) %(tanθ) 8/10
Braking method
Electromagnetic
Drive motor power (S2-60min) kw 7.0AC
Lift motor power, (S3-15%) kw 15AC
Battery, voltage/rated capacity V/Ah 48/900
Battery weight kg 1470
Steering system
Electro-hydraulic ratio
Battery replacement method
Hoisting

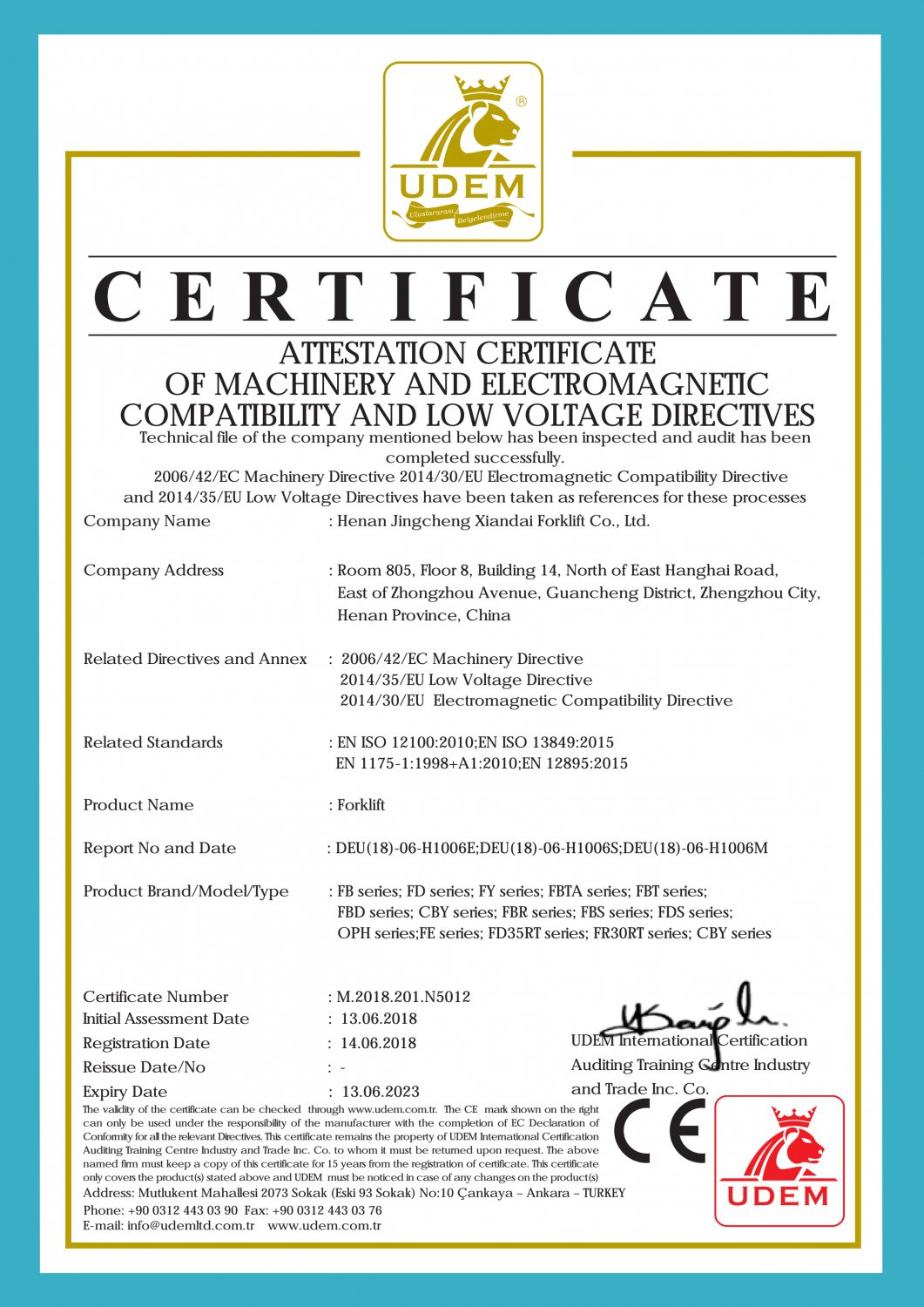

FLIFT forklift CE approved:
