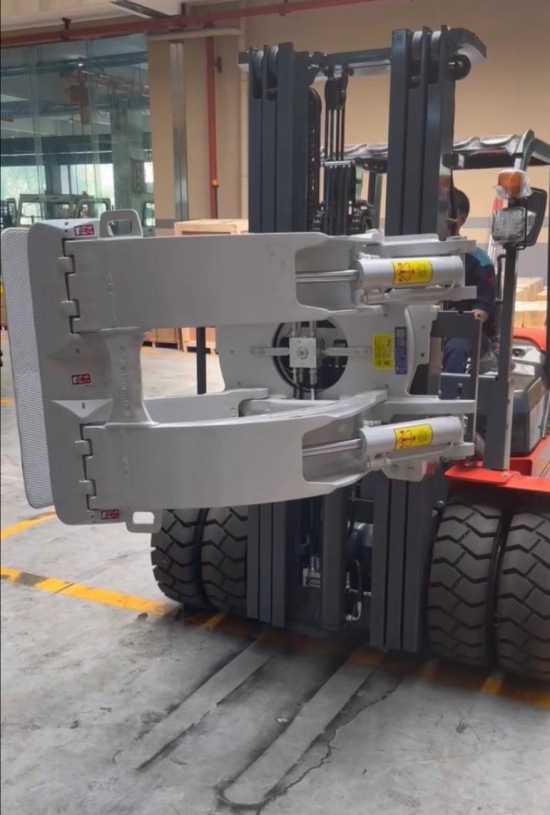

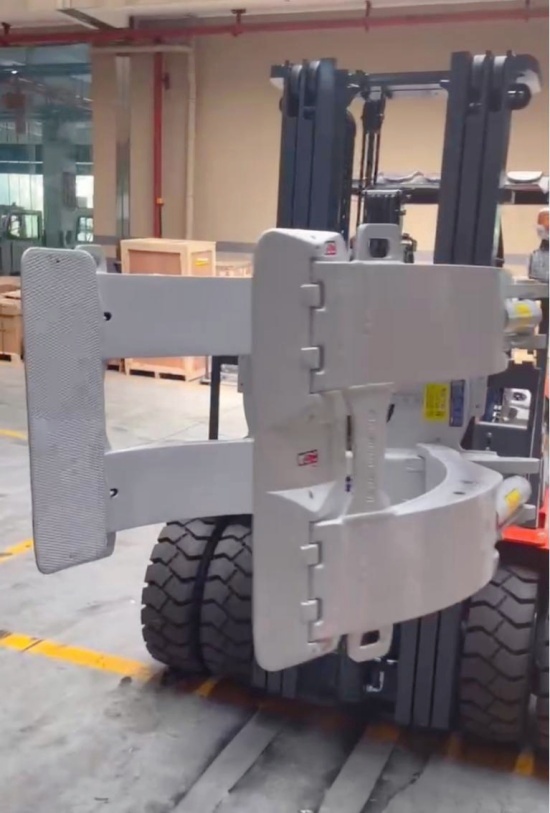

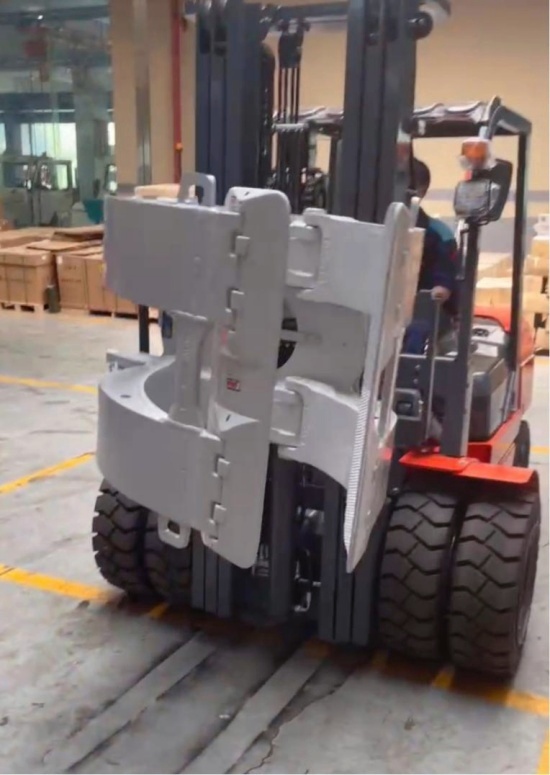

2 units FLIFT 3.5T paper roll clamp forklift with customized dual front tires will be delivering to Indonesian client again.

Lift height: 5m
Forklift load capacity: 3500kg,
Mast type: 3 stage full free mast,
Paper roll clamp range: 200-1400mm.
Paper roll clamp capacity: 2200kg.
Paper roll clamp attachment brand : American Cascade.

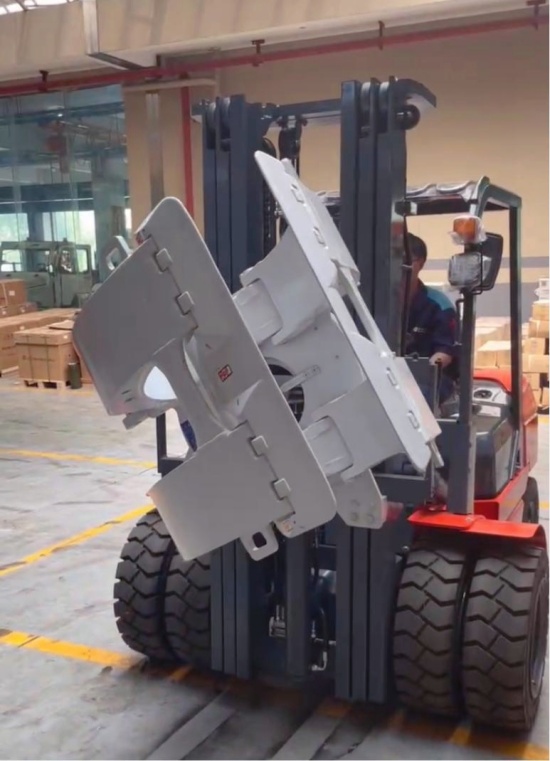

Equip with the standard 360°rotator.

At the beginning of 2023, our Indonesian client first time to purchse the paper roll forklfit from our FLIFT Forklift. This client appointed us to use the well- known Cascade brand paper roll clamp which owns the ultra high quality and stability. We only spend 25 working days to finished the production. And showcased all the functions for client, as well as strictly tested the whole working performance. Got the compliement from our client.

In November this year, this client ordered 2 units paper roll clamp from our FLIFT Forklift again, as same configurations as last order. We sincerely appreciate the trust and support.
Regarding to the constainer type, we will use the 40HC container to ship the two paper roll trucks.


Why don’t u use the 40GP to ship the paper reel clamp forklift?

Firstly i also want ask a question too, do u know the stationary hight of  this paper roll clamp diesel forklift?
As this diesel forklift equip with 3 stage 5m mast,  the mast lowered height is 2305mm, exceed the container door frame height, so the40HC is the most appropriate approach.

Why did the client choose customized dual front tires for this paper roll clamp forklift? How much load capacity is increased?Why did the client select customized dual front tires?

The client chose customized dual front tires primarily due to high load requirements and safety considerations when operating a paper roll clamp forklift at elevated lifting heights.

In this application, the customer required.
Paper roll clamp rated capacity: 2000 kg. Required load at 5-meter lifting height: ≥ 1700 k
However, the paper roll clamp itself weighs 630 kg.

When combined with the actual paper roll load:
1700 kg (paper roll clamp load capacity),
+ 630 kg (clamp self-weight).

So total effective lifting load ≈ 2330–2400 kg at 5 meters.

At this lifting height and load center, the forklift operates close to its stability and capacity limits. To ensure safe, stable, and compliant operation, the client selected dual front tires as the optimal solution.





How do dual front tires improve a paper roll clamp forklift?

Customized dual front tires provide several critical advantages for a paper roll clamp forklift:
Wider ground contact area, improving overall front-axle stability.Better load distribution, reducing stress on single tires.Improved resistance to forward tipping, especially when lifting heavy paper rolls at height.
This configuration is widely used in high-load, high-lift paper handling applications.

How much load capacity is increased with dual front tires?

If installed the dual front tires, the laod center become bigger. load capacity will extra increase 200-300kg. The crutial point is that increased the safety index dramatically.

Why dual front tires are critical for paper roll clamp forklift?

For a paper roll clamp forklift lifting 1.8m diameter rolls at 5 meters, dual front tires are not just an upgrade—they are a safety-driven engineering choice.
They allow the forklift to handle higher combined loads, improve stability, and meet demanding paper industry requirements with confidence.

FLIFT remains committed to the paper roll clamp sector. We will continue to deepen our specialization,
improve product quality, and provide tailored solutions to more clients worldwide.
