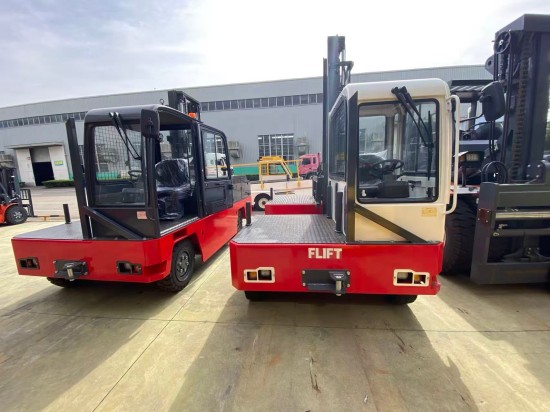

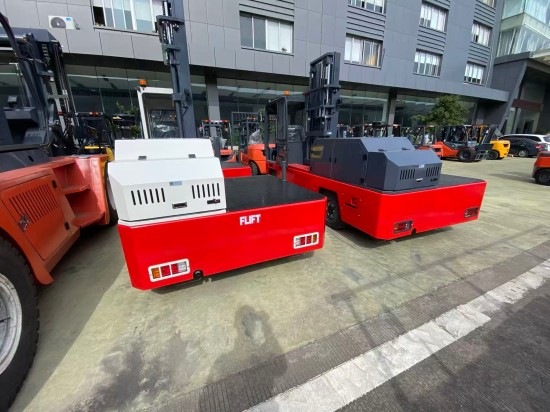

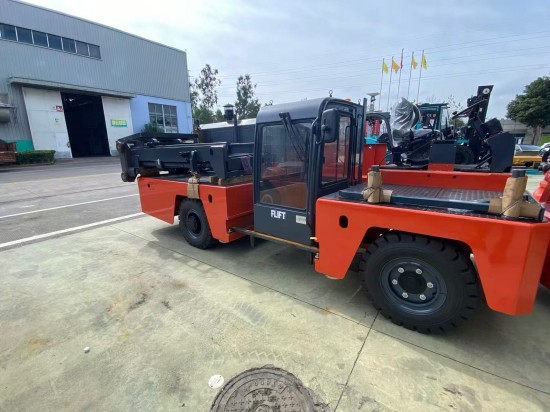

Firstly we need to realize the 10t side loader truck overall size, this is the crutial point. Usually, our FLIFT 10t side loader forklift dimension as below:
6200mm*2200mm*3450mm( Length*Width*Height).

As the mast lowered higeht is 3450mm. ( The stationary height)
If want to ship the side loader by the 40GP or 40HC, we have to remove the mast before loading into the container.

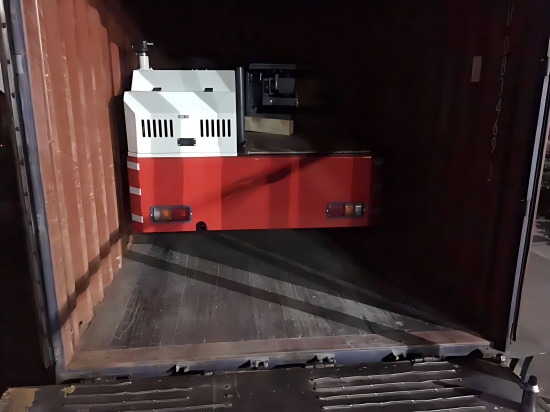

See the actual picture as below.





If u don’t want to remove the mast to shipping the sideloader, or afraid that u are not sure have the ability to assemble the mast once u received the side loader.

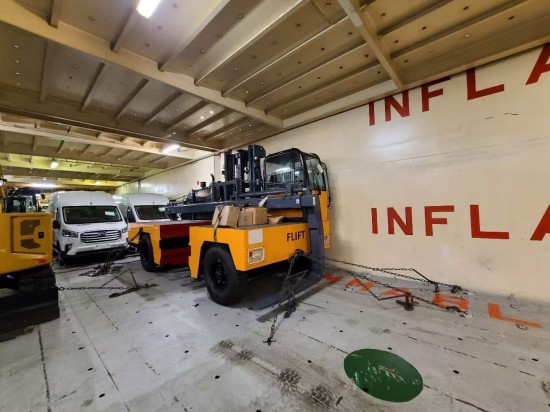

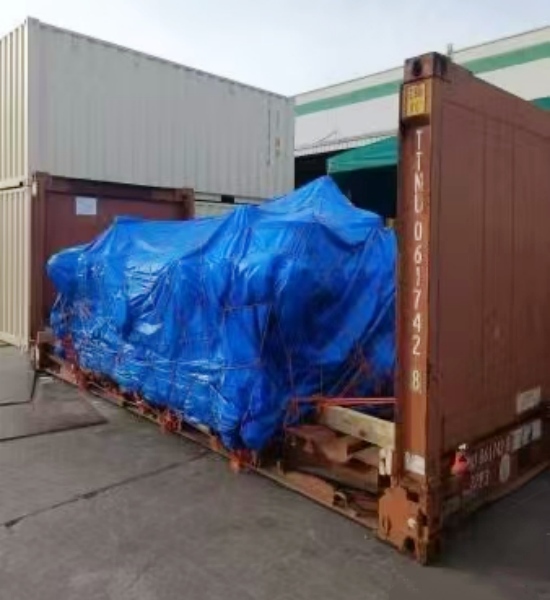

Another two shipping methods are opting the 40FR  and Ro-Ro, but the shipping cost much more higher than the traditional 40GP or 40HC.

What’s the service weight of the 10ton side loader forklift?
Our 10ton series side loader truck service weigh is 18500kg.

In addition, do u have the optional engine for the 10t diesel forklift truck? As we prefer to use the cummins or mitsubishi engine.
Yes,  as usual, the side loader truck equips with our chinese brand engine, with the competitive price and durability. Simultaneously many foreign clients much like the Cummins and Mitsubishi or Isuzu engine.
These three engine models are optional, we all can meet the prodution time with 40 working days too.



Can we add the air conditioner and warm blower device for the side loader truck?
Yes, no problem, these humanization configurations are optional too.
For example, the Autralian clients prefer to install the air conditioner,as well as the Vietnam clients.

Could i know the maxumum lifting height of FLIFT 10t diesel side loader forklift?
In general, the stndard lift height is 3600mm with 2 stage mast. Up to now, the maximum lift height is 6500mm with the customized 3 stage full free mast.
But this is usually the case, majority clients prefer to use the 2 stage mast with the 4500mm lift height, which can cater to the various working conditions.



The final question, how many forks can be installed on this side loader truck? Sometime ,we will lift the ultra longer and heavier goods.
Use the more forks should be more safter i perceived.

Yes, according to the previous experances and cases, we customized the tatally 6 forks on our side loader.  To install the 4 forks are the prevailing configuration in the previous orders.
In additon, the fork length can be lengthened as demand.
