High Efficient 3-wheel Rated Capacity 1.6 ton Battery forklift with Laod Center 500mm

Date: 2022-07-18 View:

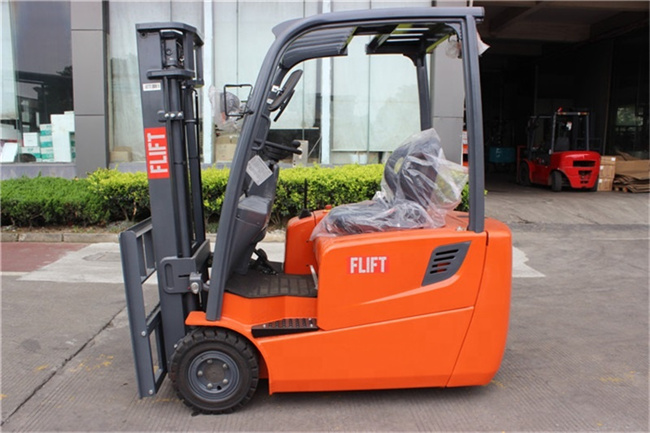

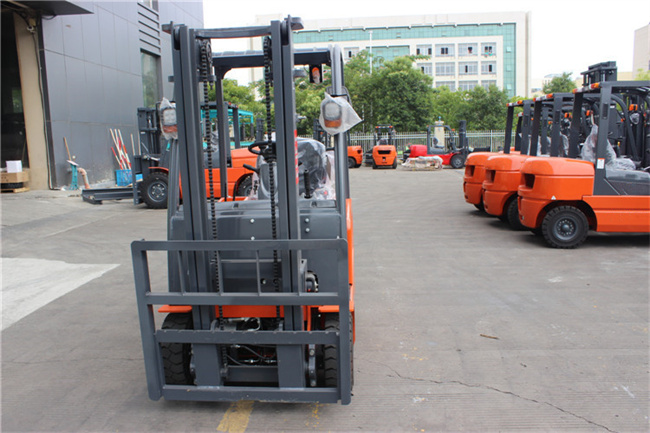

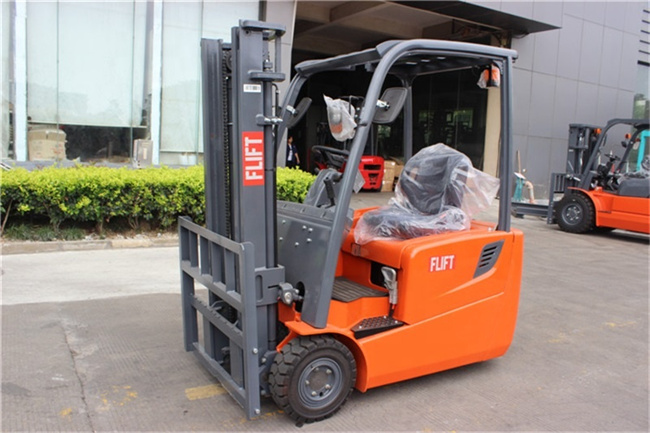

FLIFT Brand 3-Wheel Battery Forklift Rated Capacity 1600kg with Turning Radius 1690 mm

Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance;
1.Efficient Driving System
Advanced dual motor driving system, compact structure, better driving and climbing performance, larger torque, more powerful output.
>New maintenance-free AC motor with high transmission efficiency and low maintenance and maintenance costs:
>Imported German ZF axle box integrated high-performance drive system;
"Maintenance-free wet disc-to-brake system.

2.Flexible Steering System

Adopting dynamic load sensing priority steering system, more quickly steering, smaller turning radius, more flexible driving performance.
>Original imported corner potentiometer;
>The turning angle of the rear wheel can reach 90°, which can realize 180° steering of the forklift on the spot, and the maneuverability is super strong.

3.Comfortable Operating Space

Ergonomic full-scale operation space layout which give the operator a good, comfortable and convenient operating experience.
>Sinking design of tilting cylinder;
>Fully surround instrument panel cover;
>Wide vision gantry design;
>Right hydraulic joystick, safety power-off switch and storage box;
> Secondary boarding pedals;
>Inclination adjustable small diameter steering wheel;
> Front and rear adjustable wrap-around seat (adjustable range up to 150mm).

4.High Quality Electrical Components
Original imported word famous brand controller After professional adjustment, walking and upgrade control precision and efficiency it has excellent performance, regenerative braking. ramp braking, fault self-diagnosis and other functions.
>Regenerative braking: When the forklift decelerates, descends, reverses and other conditions, the walking motor turns into a generator, and the battery is reversely charged through the controller, which is highly efficient and energy-saving
>Imported brand accelerator;
>Imported power connector;
>AMP waterproof wiring harness.

Product Parameters
Power Type
Rated Capacity kg 1600
Load Centre mm 500
Lift Height mm 3000
Fork Size mm 920*120*35
Mast Tilt Angle Deg 5°/7°
Front Overhang (Wheel Center to fork face) mm 410
Tread mm 930/208
Ground Clearance (Bottom of mast) mm 90
Fork Spread
Length to face of fork(Without fork) mm 2090
Overall Width mm 1100
Mast Lowered Height mm 2030
Mast Extended Height(With backrest) mm 4010


The Video of Product
